Century Spring

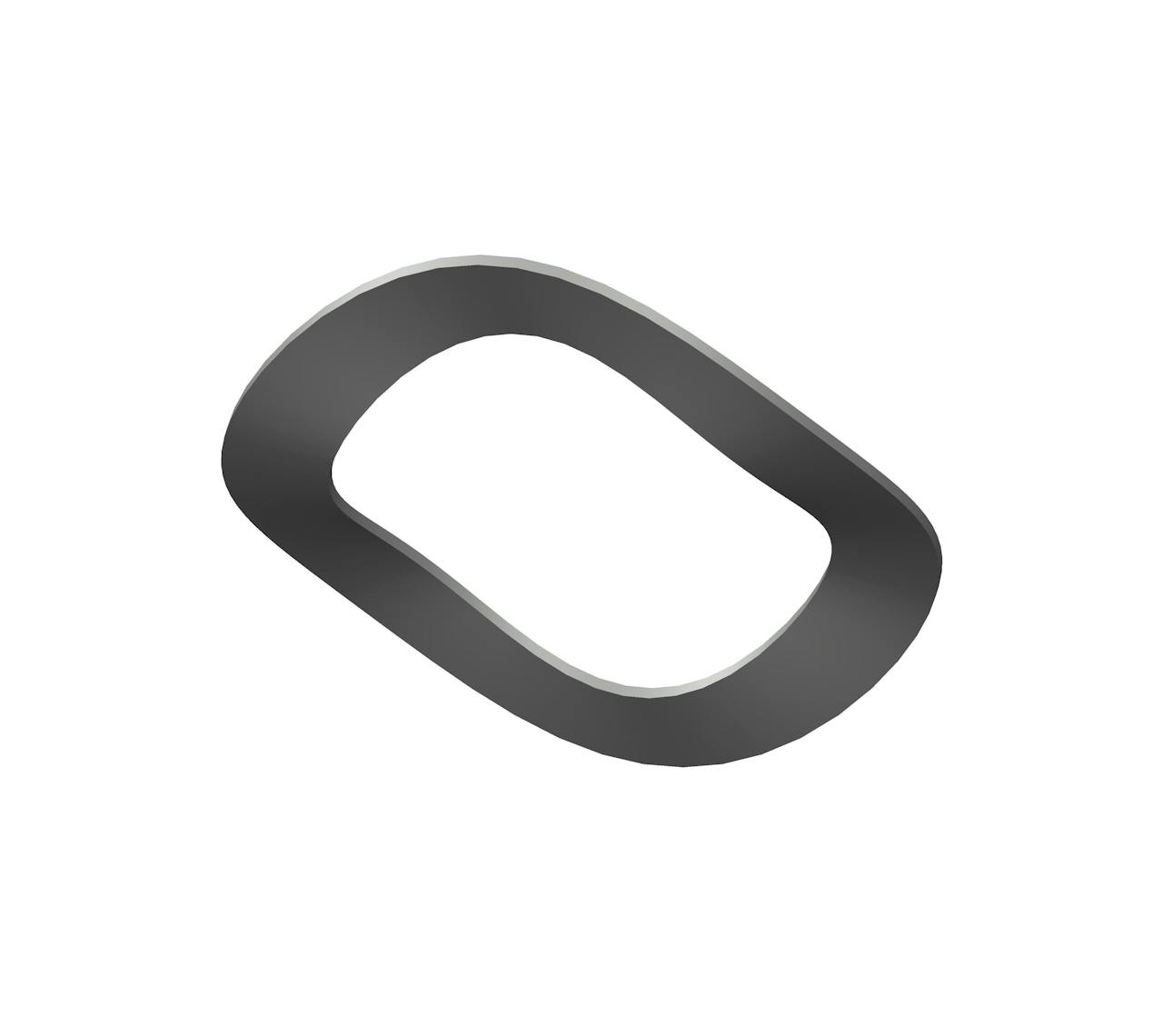

WAV-24865CS - 0.39 Inch ID 0.562 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.39 Inch and an outside diameter of 0.562 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 12 lb
Display Name WAV-24865
Finish None
Inside Diameter 0.39 in
Material Spring Steel
Maximum Deflection at 100% Height 0.015 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.562 in
Outside Height 0.06 in
SKU WAV-24865CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 5.44 kg
Display Name WAV-24865
Finish None
Inside Diameter 9.91 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.38 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 14.27 mm
Outside Height 1.52 mm
SKU WAV-24865CS
T 0.25 mm
