66425SCS - 0.19" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

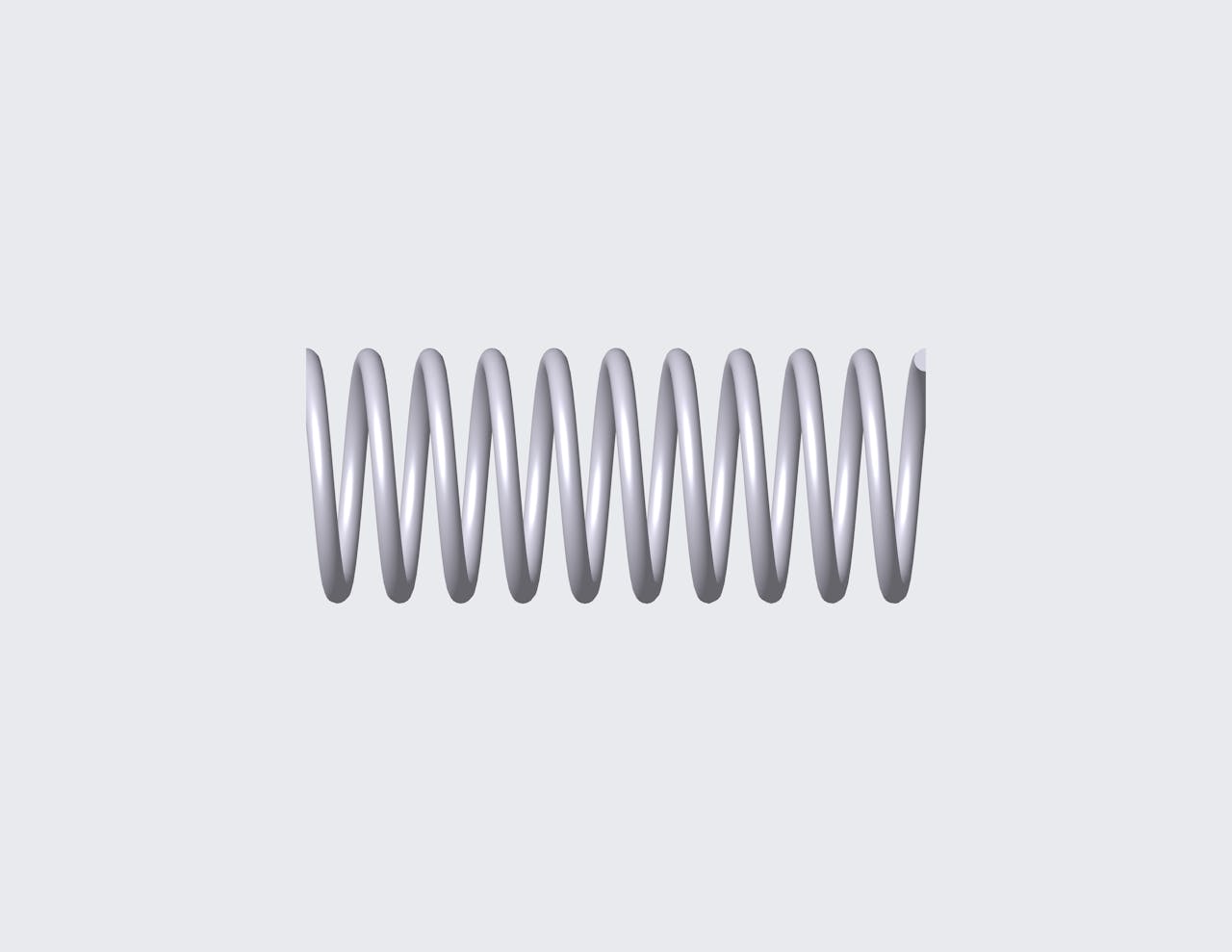

Compression spring manufactured from 316 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.14".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66425S
Ends Closed
Finish Passivated
Free Length 0.19 in
Inside Diameter 0.14 in
Material 316 Stainless Steel
Outside Diameter 0.172 in
Part Type Standard
Rate 7.193 lbs/in
SKU 66425SCS
Solid Length 0.096 in
Suggested Max Deflection 0.094 in
Suggested Max Load 0.676 lbf
Total Coils 5
Wire Diameter 0.016 in
The compression spring 66425SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66425S compression spring design exhibits exceptional tensile strength and resilience.

The 66425S design is manufactured with a free length of 0.19", with an outer diameter of 0.172", an inner diameter of 0.14", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.193 lbs/in.

The 66425SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 66425S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
