60543SCS - 0.5" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

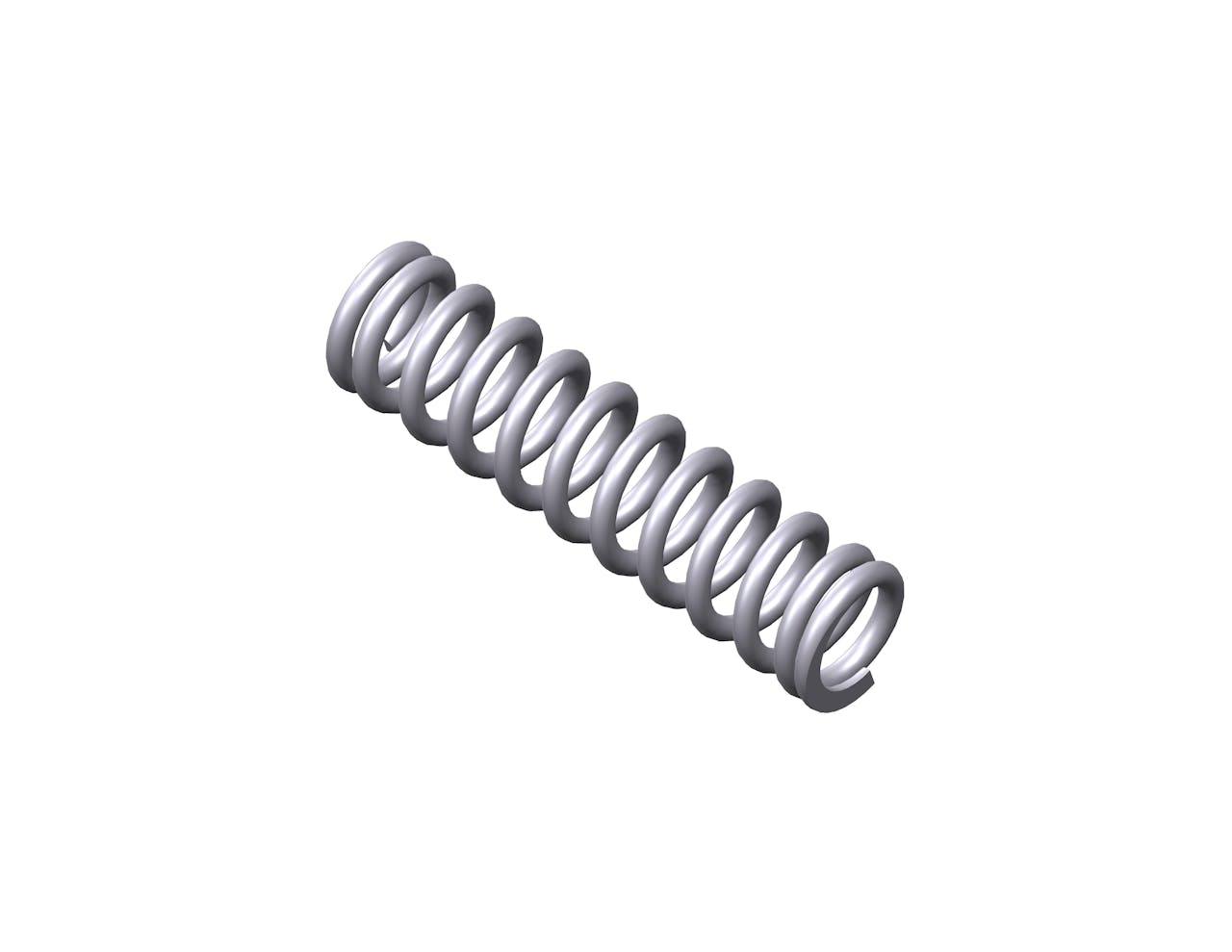

Compression spring manufactured from 316 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.085".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 60543S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 0.5 in |
| Inside Diameter | 0.085 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 17.88 lbs/in |
| SKU | 60543SCS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 1.959 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 60543S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 12.7 mm |
| Inside Diameter | 2.16 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 3.13 N/mm |
| SKU | 60543SCS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 8.71 N |
| Total Coils | 12 |
| Wire Diameter | 0.51 mm |
The 60543SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.02" diameter 316 stainless steel, the 60543S spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 1.959 lbf without succumbing to fatigue.
We manufacture the 60543S design to provide a compression spring that is 0.5" long at rest and provides a consistent rate of 17.88 lbs/in along its recommended maximum of 0.11" deflection. For best results, your application should fully accommodate the inner (0.085") and outer (0.125") diameters of this spring and be designed for its closed & ground end configuration.
