Century Spring

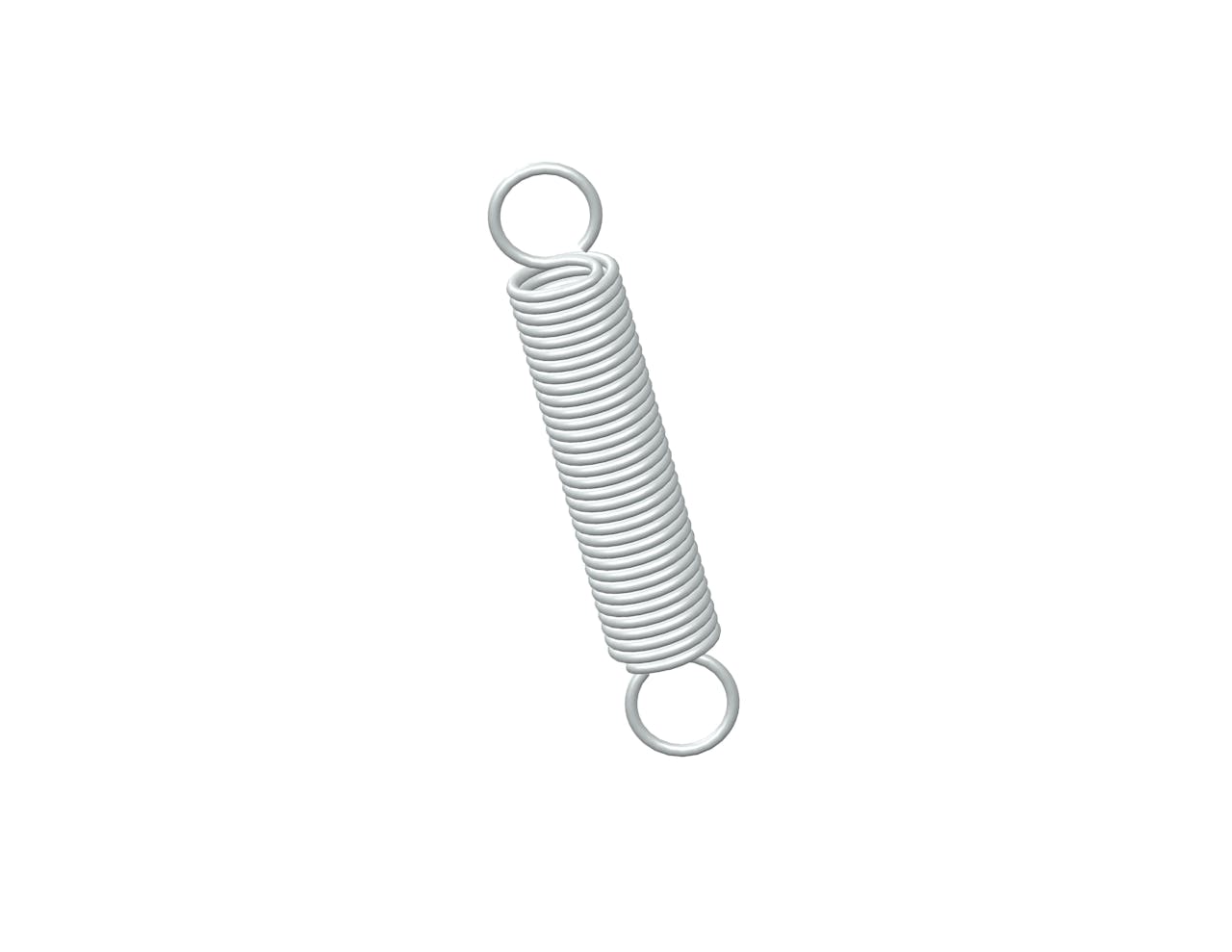

6020CS - 2.75 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 6020
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 2.75 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 3.3 lbs/in
SKU 6020CS
Sugg Max Deflection 2.7 in
Sugg Max Load 11 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 6020
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 69.85 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.58 N/mm
SKU 6020CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 48.93 N
Wind Direction Left
Wire Diameter 1.4 mm
