S-771CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

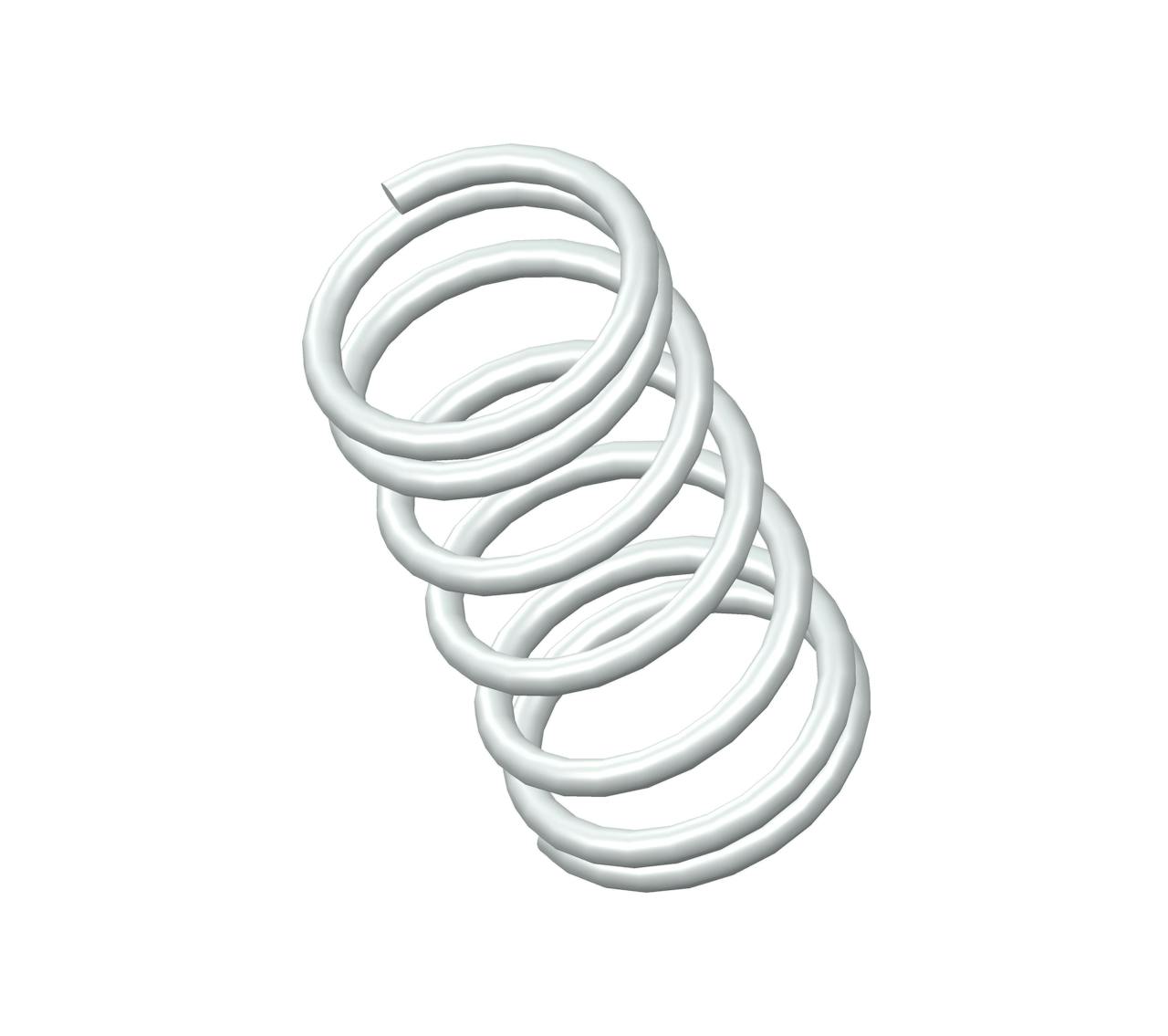

Compression spring manufactured from 302/304 stainless steel with 6.7 coils and closed ends. This spring features an O.D. of 0.625", and an I.D. of 0.499".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-771 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.499 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.625 in |
| Part Type | Standard |
| Rate | 23 lbs/in |
| SKU | S-771CS |
| Solid Length | 0.479 in |
| Suggested Max Deflection | 0.569 in |
| Suggested Max Load | 13.1 lbf |
| Total Coils | 6.7 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-771 |
| Ends | Closed |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 12.67 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.88 mm |
| Part Type | Standard |
| Rate | 4.03 N/mm |
| SKU | S-771CS |
| Solid Length | 12.17 mm |
| Suggested Max Deflection | 14.45 mm |
| Suggested Max Load | 58.27 N |
| Total Coils | 6.7 |
| Wire Diameter | 1.59 mm |
The S-771 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-771CS compression spring is designed with a free length of 1" total of 5.3 coils, and a rate of 32 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-771 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-771CS compression spring is designed with a free length of 1" total of 5.3 coils, and a rate of 32 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-771 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
