Century Spring

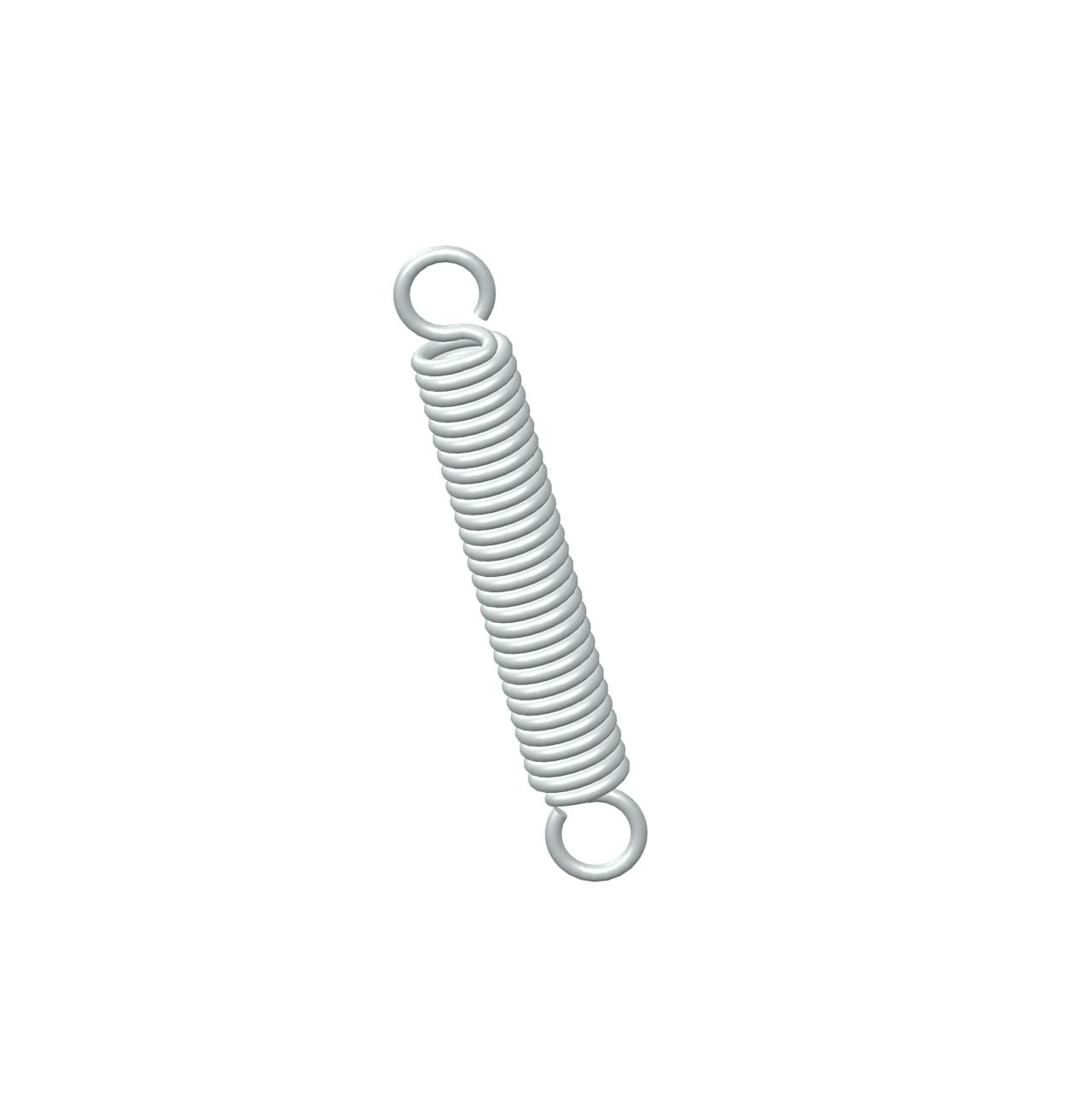

5971CS - 1.63 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5971
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 1.63 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 12 lbs/in
SKU 5971CS
Sugg Max Deflection 0.62 in
Sugg Max Load 9.8 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5971
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 41.4 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.1 N/mm
SKU 5971CS
Sugg Max Deflection 15.75 mm
Sugg Max Load 43.59 N
Wind Direction Left
Wire Diameter 1.04 mm
