76997CS - 6.299" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

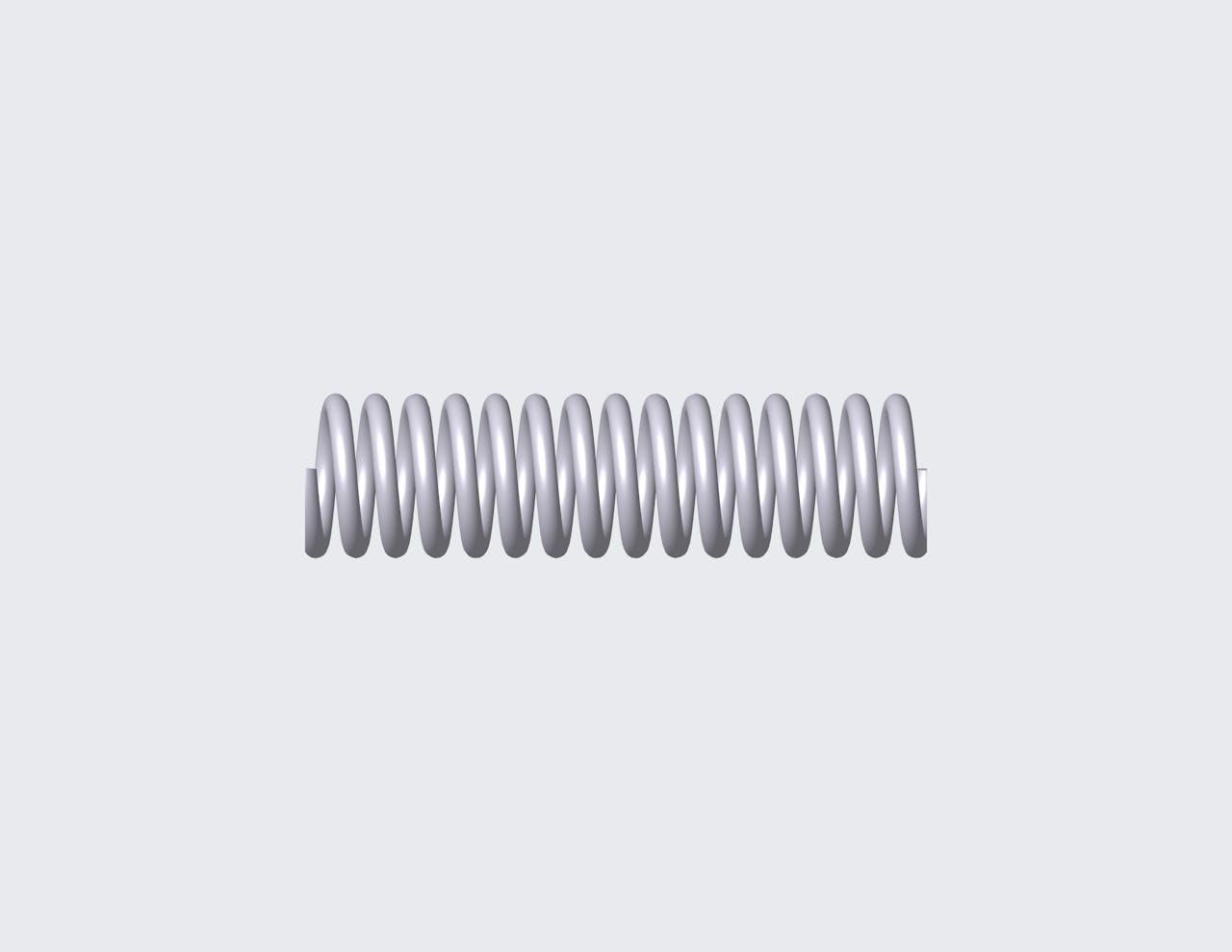

Compression spring manufactured from music wire with 14.95 coils and closed & ground ends. This spring features an O.D. of 1.672", and an I.D. of 1.202".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76997
Ends Closed & Ground
Finish None
Free Length 6.299 in
Inside Diameter 1.202 in
Material Music Wire
Outside Diameter 1.672 in
Part Type Metric
Rate 114.163 lbs/in
SKU 76997CS
Solid Length 3.514 in
Suggested Max Deflection 2.635 in
Suggested Max Load 300.8 lbf
Total Coils 14.95
Wire Diameter 0.235 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76997
Ends Closed & Ground
Finish None
Free Length 159.99 mm
Inside Diameter 30.53 mm
Material Music Wire
Outside Diameter 42.47 mm
Part Type Metric
Rate 19.99 N/mm
SKU 76997CS
Solid Length 89.26 mm
Suggested Max Deflection 66.93 mm
Suggested Max Load 1337.96 N
Total Coils 14.95
Wire Diameter 5.97 mm
The compression spring 76997CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76997 compression spring design exhibits exceptional tensile strength and resilience.

The 76997 design is manufactured with a free length of 6.299", with an outer diameter of 1.672", an inner diameter of 1.202", and a total of 14.95 coils, expertly designed to deliver consistent compression characteristics including a rate of 114.163 lbs/in.

The 76997CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 76997 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
