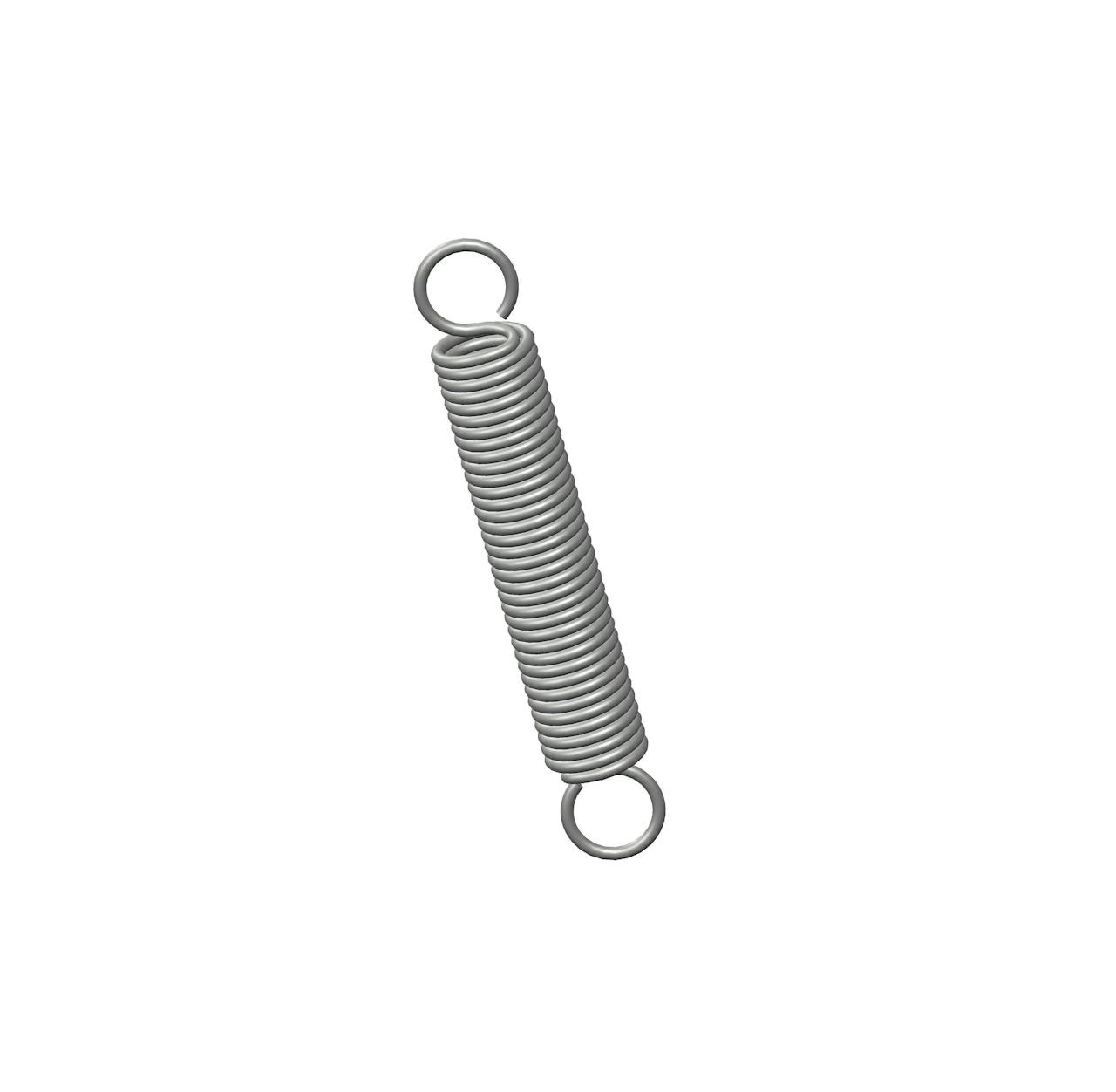

5923CS - 2.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5923
Ends Full Loop
Finish Zinc
Initial Tension 2 lb
Length 2.25 in
Material Spring Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 4.6 lbs/in
SKU 5923CS
Sugg Max Deflection 1.6 in
Sugg Max Load 9.2 lbf
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5923
Ends Full Loop
Finish Zinc
Initial Tension 0.91 kg
Length 57.15 mm
Material Spring Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.81 N/mm
SKU 5923CS
Sugg Max Deflection 40.64 mm
Sugg Max Load 40.92 N
Wire Diameter 1.14 mm
