Century Spring

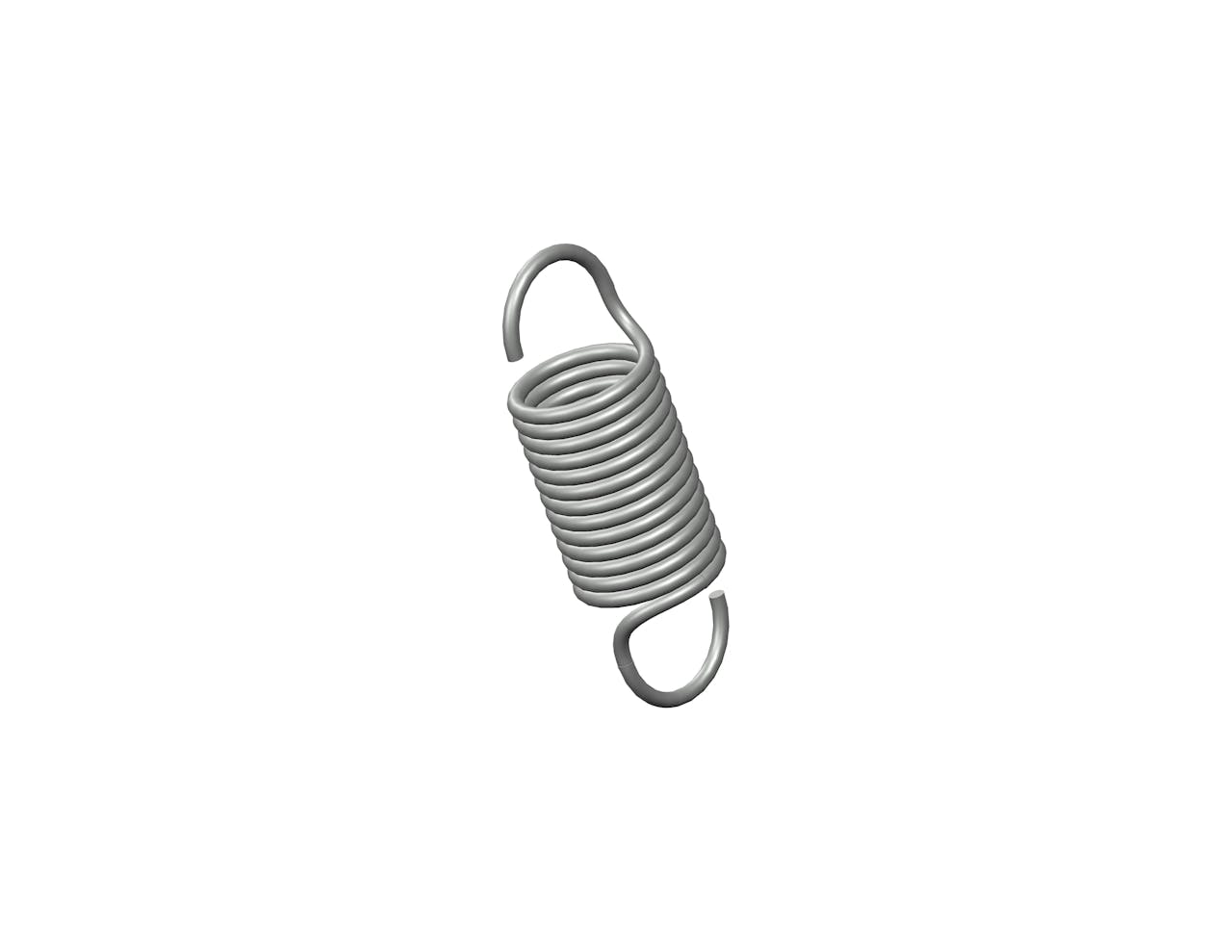

5620CS - 5.88 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.75 Inch and an initial tension of 22 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5620
Ends Machine Hook
Finish Zinc
Initial Tension 22 lb
Length 5.88 in
Material Spring Steel
Outside Diameter 1.75 in
Part Type Standard
Rate 28 lbs/in
SKU 5620CS
Sugg Max Deflection 3.2 in
Sugg Max Load 110 lbf
Wind Direction Left
Wire Diameter 0.192 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5620
Ends Machine Hook
Finish Zinc
Initial Tension 9.98 kg
Length 149.35 mm
Material Spring Steel
Outside Diameter 44.45 mm
Part Type Standard
Rate 4.9 N/mm
SKU 5620CS
Sugg Max Deflection 81.28 mm
Sugg Max Load 489.28 N
Wind Direction Left
Wire Diameter 4.88 mm
