Century Spring

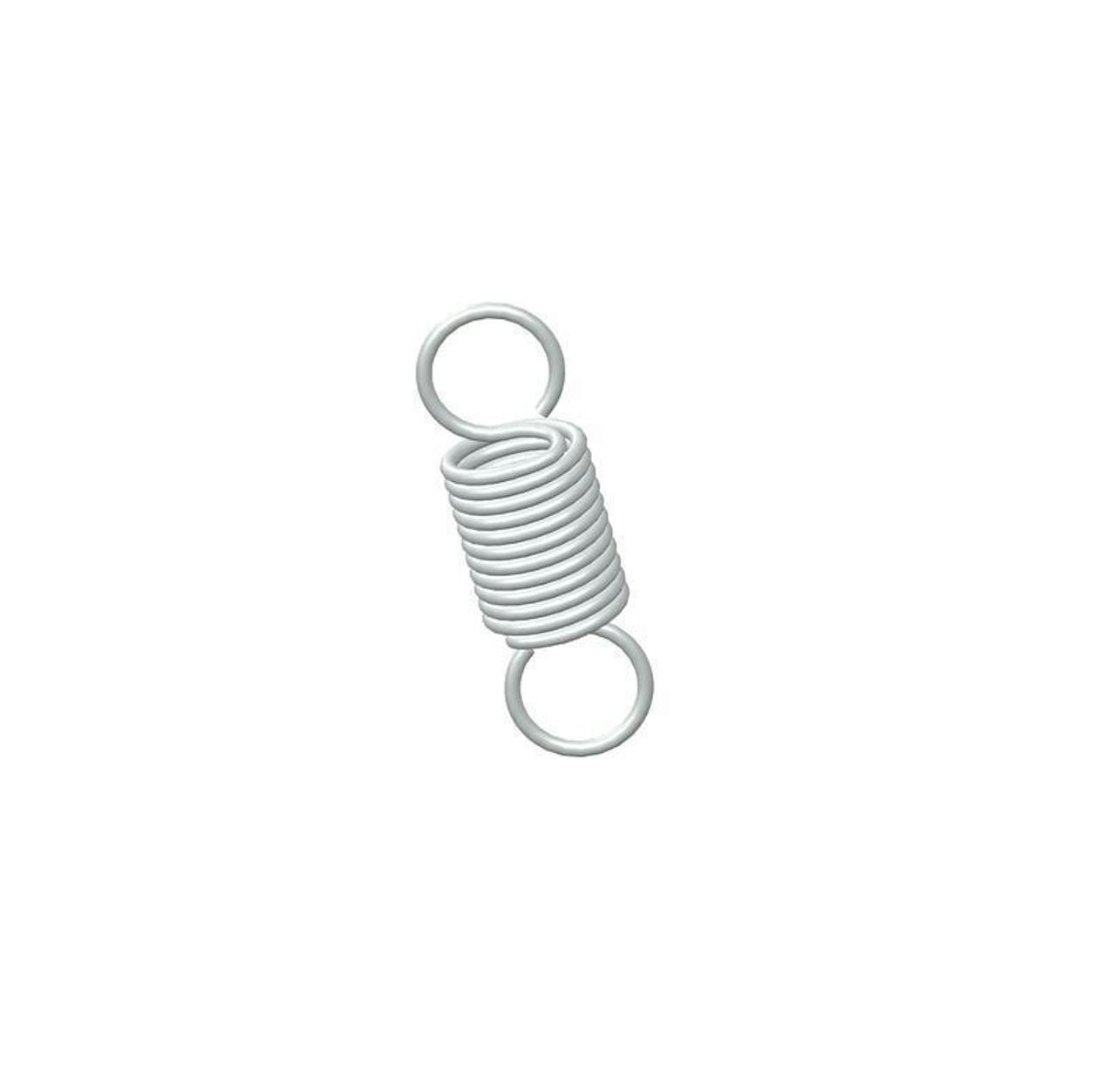

80264SCS - 0.75 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.24 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80264S
Ends Full Loop
Finish None
Initial Tension 0.3 lb
Length 0.75 in
Material 302/304 Stainless Steel
Outside Diameter 0.24 in
Part Type Standard
Rate 4.4 lbs/in
SKU 80264SCS
Sugg Max Deflection 0.49 in
Sugg Max Load 2.5 lbf
Wind Direction Left
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80264S
Ends Full Loop
Finish None
Initial Tension 0.14 kg
Length 19.05 mm
Material 302/304 Stainless Steel
Outside Diameter 6.1 mm
Part Type Standard
Rate 0.77 N/mm
SKU 80264SCS
Sugg Max Deflection 12.45 mm
Sugg Max Load 11.12 N
Wind Direction Left
Wire Diameter 0.66 mm
