Century Spring

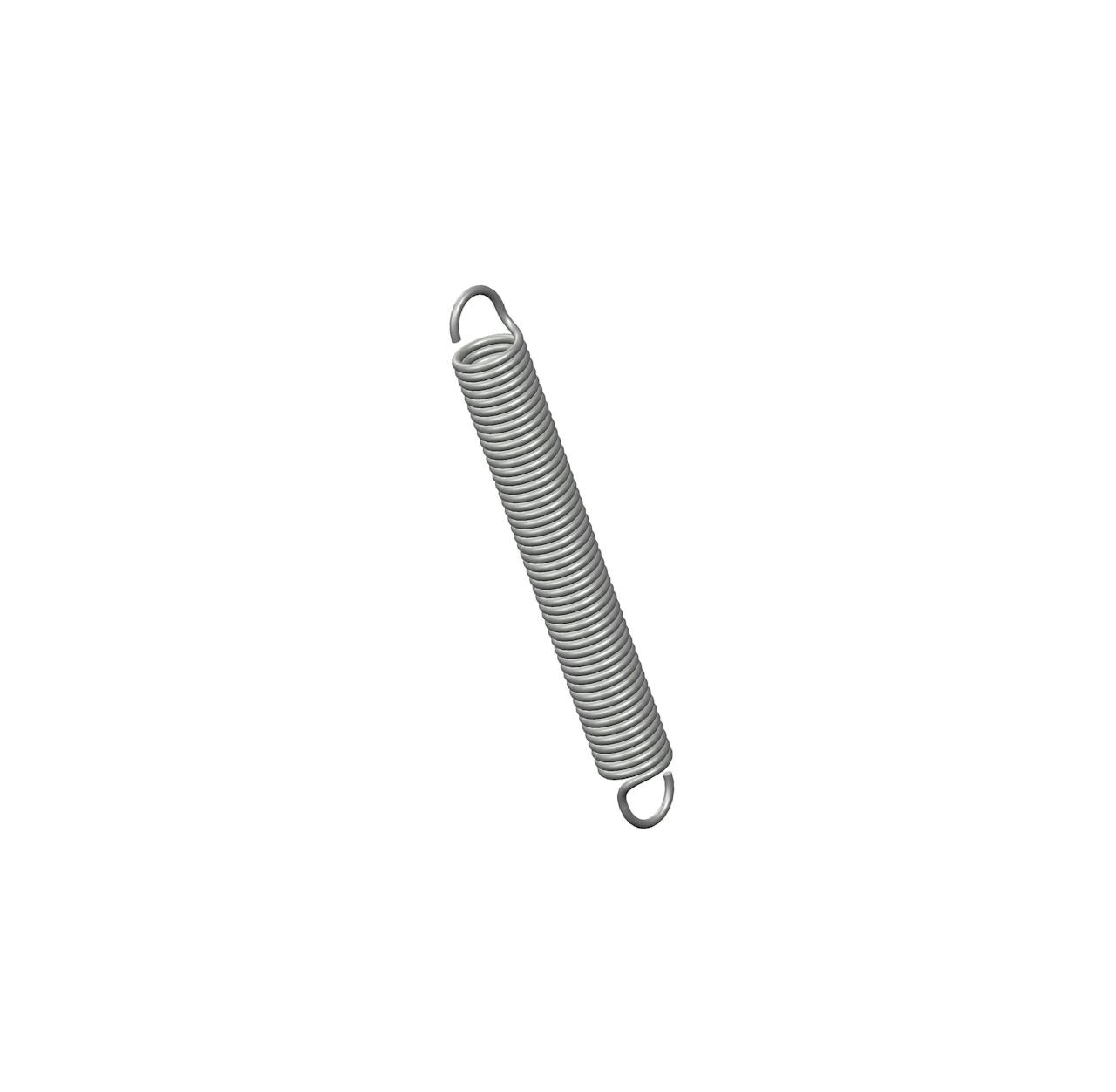

5597CS - 7.88 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.968 Inch and an initial tension of 13 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5597
Ends Machine Hook
Finish Zinc
Initial Tension 13 lb
Length 7.88 in
Material High Carbon Steel
Outside Diameter 0.968 in
Part Type Standard
Rate 11 lbs/in
SKU 5597CS
Sugg Max Deflection 4.2 in
Sugg Max Load 62 lbf
Wind Direction Left
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5597
Ends Machine Hook
Finish Zinc
Initial Tension 5.9 kg
Length 200.15 mm
Material High Carbon Steel
Outside Diameter 24.59 mm
Part Type Standard
Rate 1.93 N/mm
SKU 5597CS
Sugg Max Deflection 106.68 mm
Sugg Max Load 275.78 N
Wind Direction Left
Wire Diameter 3.18 mm
