Century Spring

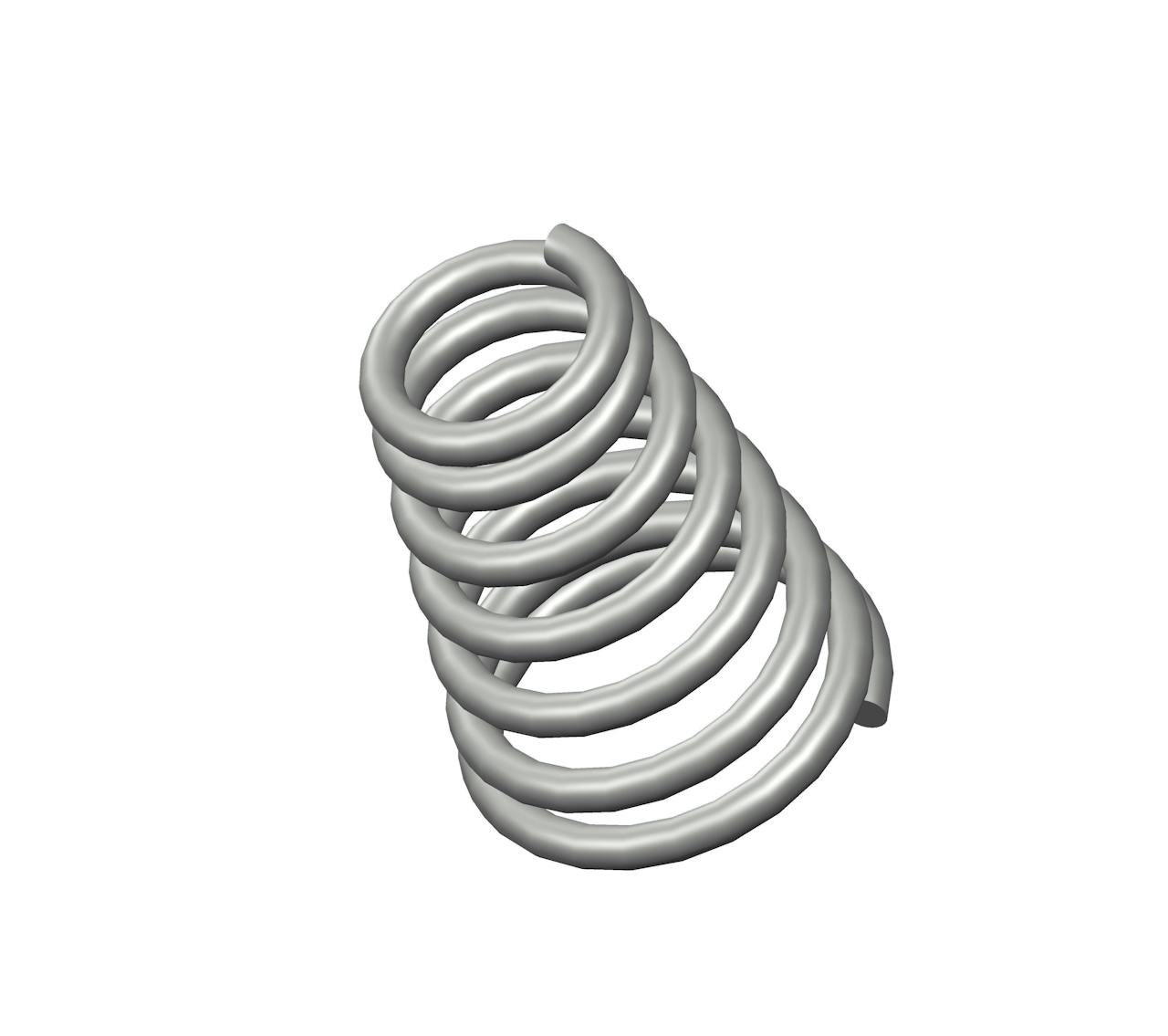

TA-2115CS - 1.31 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 7 total coils and Closed & Ground ends. The OD of this spring tapers from 0.578 Inch to 0.906 Inch. The spring has an I.D. of 0.396 Inch, and an average spring rate of 71.5 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 71.5 lbs/in
Brand Century Spring
Display Name TA-2115
Ends Closed & Ground
Finish None
Free Length 1.31 in
Inside Diameter 0.396 in
Large Outside Diameter 0.906 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.578 in
SKU TA-2115CS
Small Outside Diameter 0.578 in
Solid Height 0.61 in
Total Coils 7
Wind Direction Left
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Average Rate 12.52 N/mm
Brand Century Spring
Display Name TA-2115
Ends Closed & Ground
Finish None
Free Length 33.27 mm
Inside Diameter 10.06 mm
Large Outside Diameter 23.01 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 14.68 mm
SKU TA-2115CS
Small Outside Diameter 14.68 mm
Solid Height 15.49 mm
Total Coils 7
Wind Direction Left
Wire Diameter 2.31 mm
