Century Spring

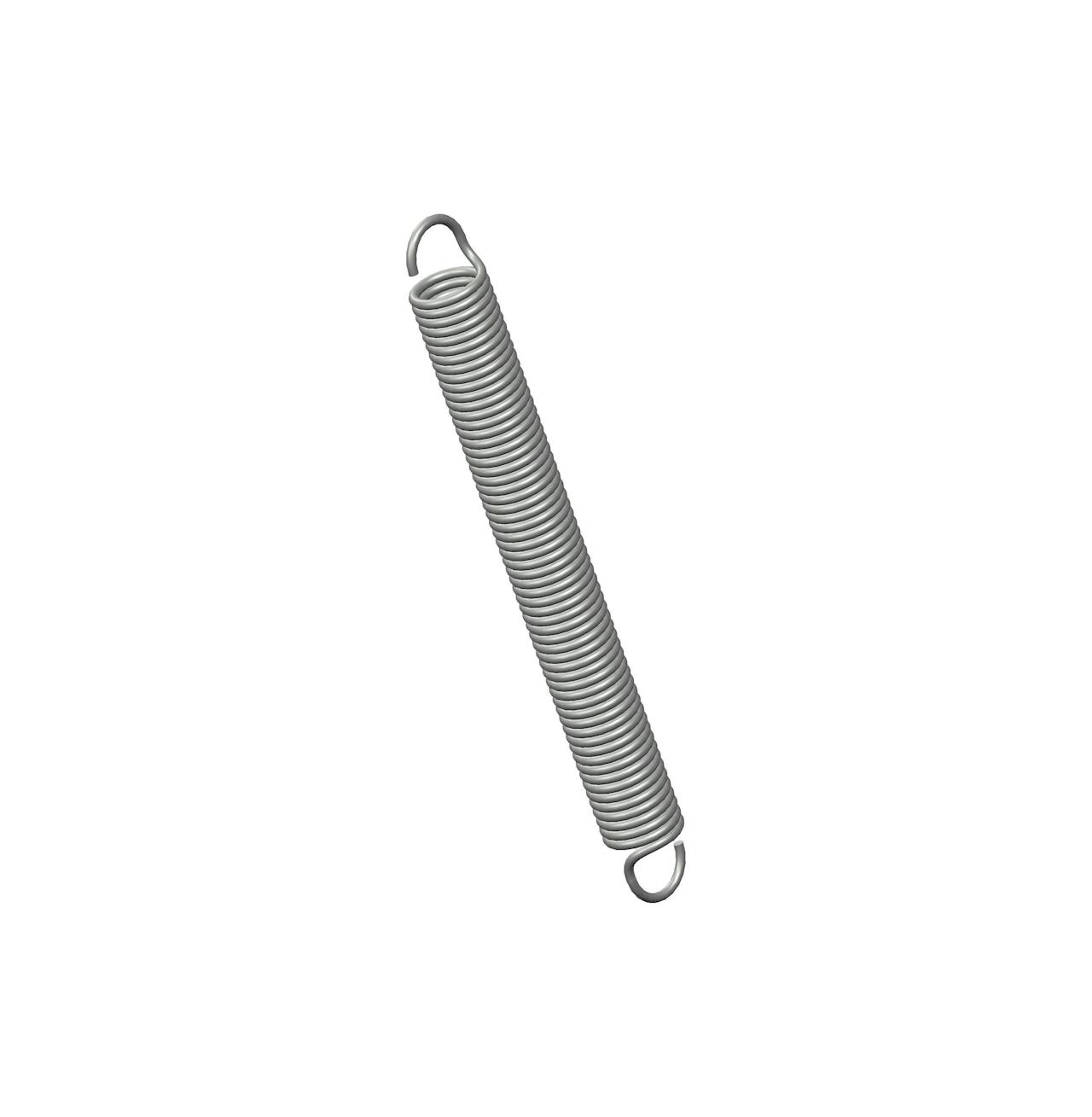

5541CS - 2.38 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5541
Ends Machine Hook
Finish Zinc
Initial Tension 0.9 lb
Length 2.38 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 2.6 lbs/in
SKU 5541CS
Sugg Max Deflection 2.2 in
Sugg Max Load 6.6 lbf
Wind Direction Left
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5541
Ends Machine Hook
Finish Zinc
Initial Tension 0.41 kg
Length 60.45 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.46 N/mm
SKU 5541CS
Sugg Max Deflection 55.88 mm
Sugg Max Load 29.36 N
Wind Direction Left
Wire Diameter 0.81 mm
