S-1006CS - 2" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

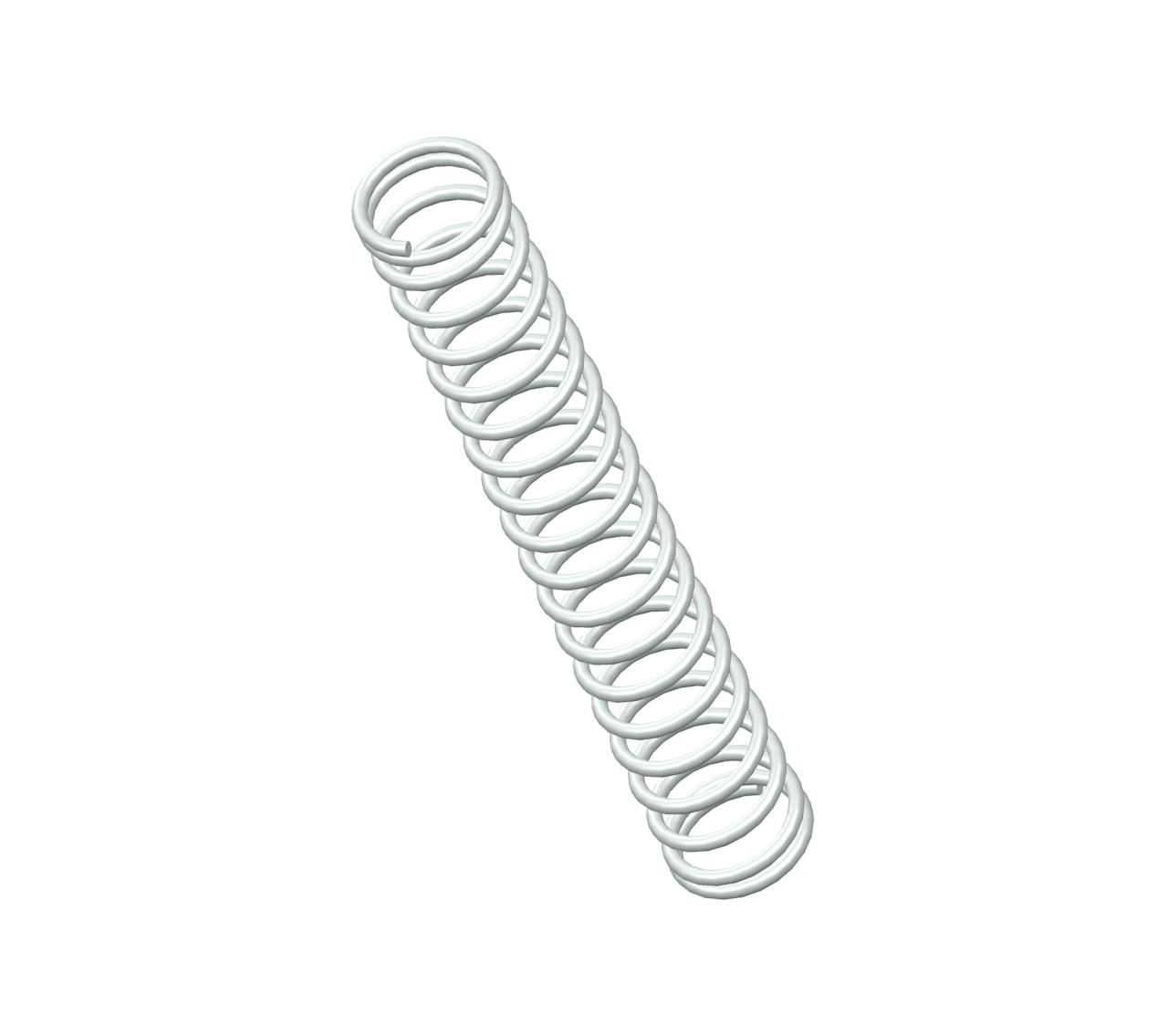

Compression spring manufactured from 302/304 stainless steel with 19.5 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.234".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1006 |
| Ends | Closed |
| Finish | None |
| Free Length | 2 in |
| Inside Diameter | 0.234 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 3.5 lbs/in |
| SKU | S-1006CS |
| Solid Length | 0.64 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 3.8 lbf |
| Total Coils | 19.5 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1006 |
| Ends | Closed |
| Finish | None |
| Free Length | 50.8 mm |
| Inside Diameter | 5.94 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 0.61 N/mm |
| SKU | S-1006CS |
| Solid Length | 16.26 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 16.9 N |
| Total Coils | 19.5 |
| Wire Diameter | 0.79 mm |
The S-1006 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1006CS compression spring is designed with a free length of 6.75" total of 9 coils, and a rate of 6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1006 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1006CS compression spring is designed with a free length of 6.75" total of 9 coils, and a rate of 6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1006 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
