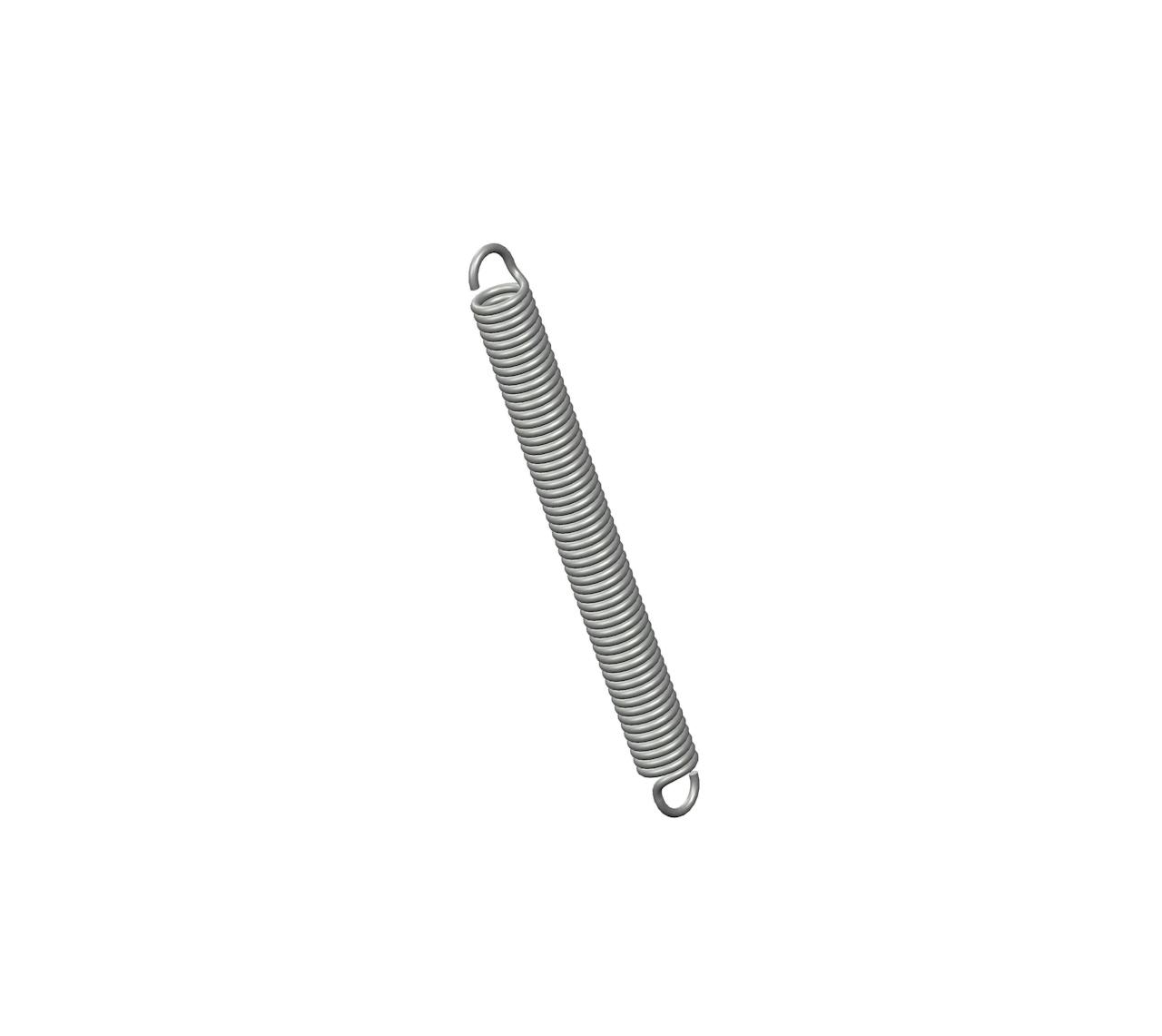

5364CS - 5.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5364
Ends Machine Hook
Finish Zinc
Initial Tension 9 lb
Length 5.25 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 15 lbs/in
SKU 5364CS
Sugg Max Deflection 1.7 in
Sugg Max Load 35 lbf
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5364
Ends Machine Hook
Finish Zinc
Initial Tension 4.08 kg
Length 133.35 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 2.63 N/mm
SKU 5364CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 155.68 N
Wire Diameter 2.03 mm
