W-96CS - 0.59" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

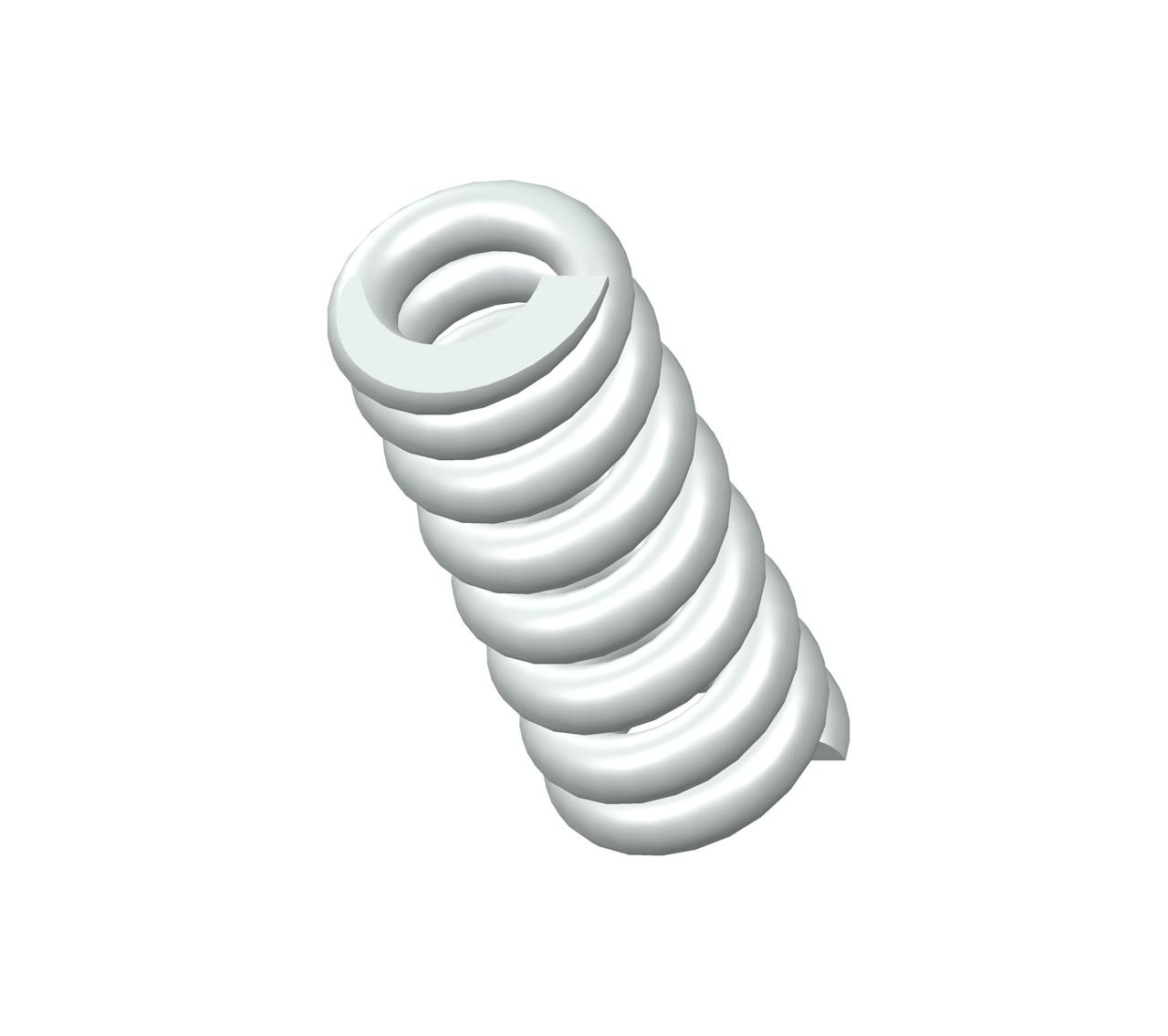

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.126".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | W-96 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.59 in |
| Inside Diameter | 0.126 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 304 lbs/in |
| SKU | W-96CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | W-96 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14.99 mm |
| Inside Diameter | 3.2 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 53.23 N/mm |
| SKU | W-96CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 8 |
| Wire Diameter | 1.37 mm |
The compression spring W-96CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the W-96 compression spring design exhibits exceptional tensile strength and resilience.
The W-96 design is manufactured with a free length of 0.59", with an outer diameter of 0.234", an inner diameter of 0.126", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 304 lbs/in.
The W-96CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring W-96 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The W-96 design is manufactured with a free length of 0.59", with an outer diameter of 0.234", an inner diameter of 0.126", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 304 lbs/in.
The W-96CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring W-96 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
