Century Spring

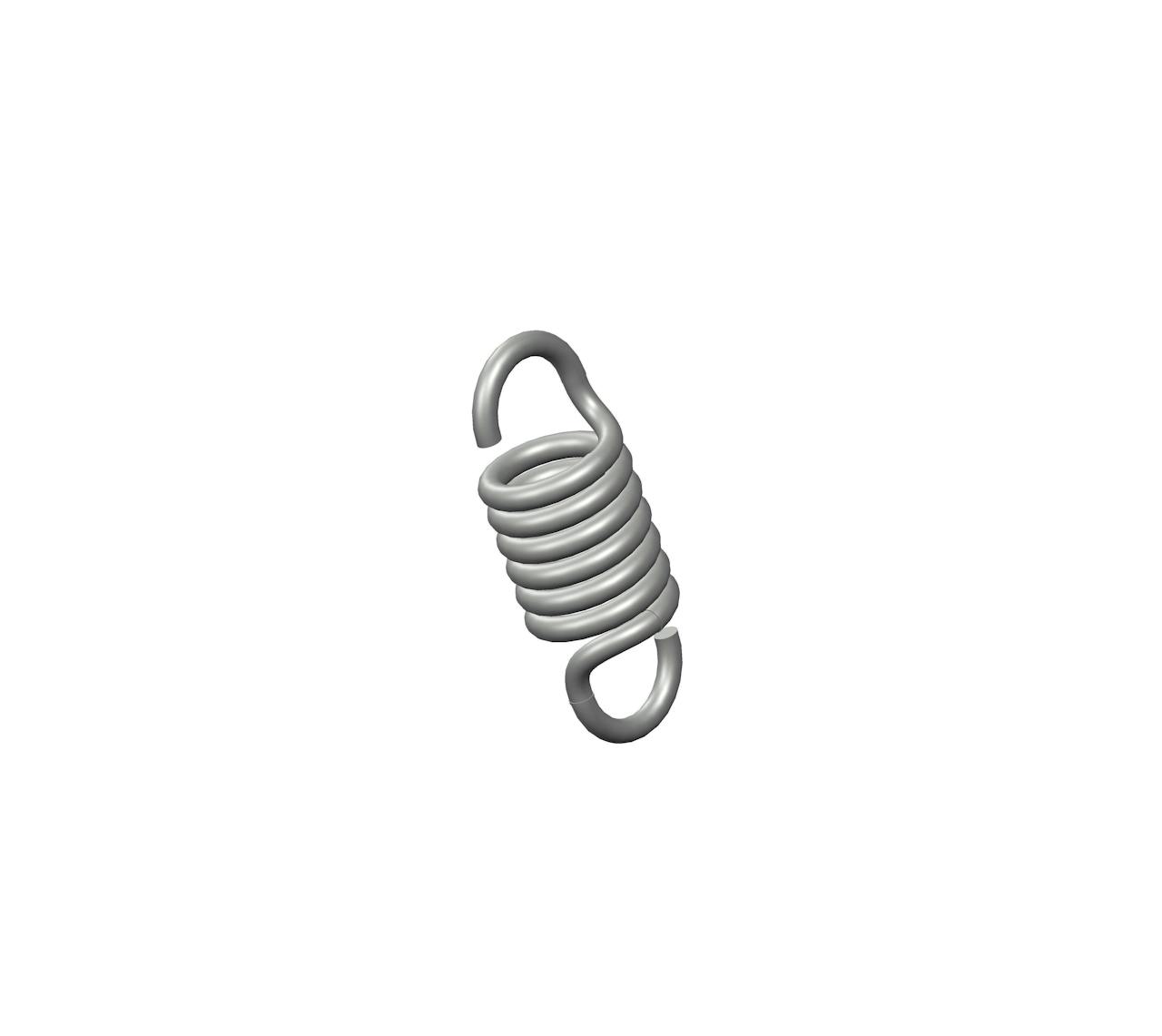

5180CS - 1.13 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5180
Ends Side Hook
Finish Gold Iridite
Initial Tension 7 lb
Length 1.13 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 89 lbs/in
SKU 5180CS
Sugg Max Deflection 0.21 in
Sugg Max Load 25 lbf
Wind Direction Left
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5180
Ends Side Hook
Finish Gold Iridite
Initial Tension 3.17 kg
Length 28.7 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 15.58 N/mm
SKU 5180CS
Sugg Max Deflection 5.33 mm
Sugg Max Load 111.2 N
Wind Direction Left
Wire Diameter 1.63 mm
