Century Spring

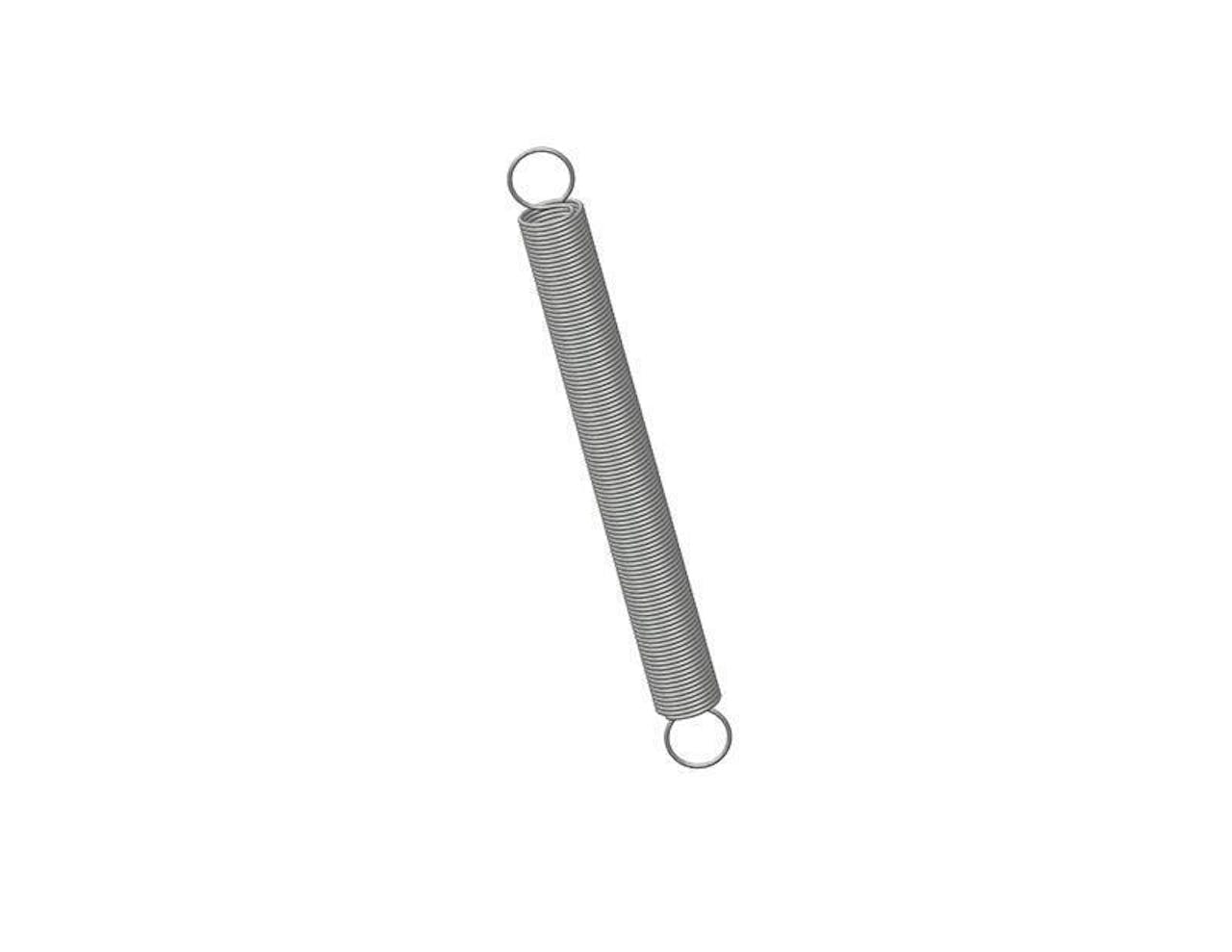

80657CS - 5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80657
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 5 in
Material Music Wire
Outside Diameter 0.5 in
Part Type Standard
Rate 0.2 lbs/in
SKU 80657CS
Sugg Max Deflection 22 in
Sugg Max Load 4.8 lbf
Wind Direction Left
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80657
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 127 mm
Material Music Wire
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.04 N/mm
SKU 80657CS
Sugg Max Deflection 558.8 mm
Sugg Max Load 21.35 N
Wind Direction Left
Wire Diameter 0.94 mm
