Century Spring

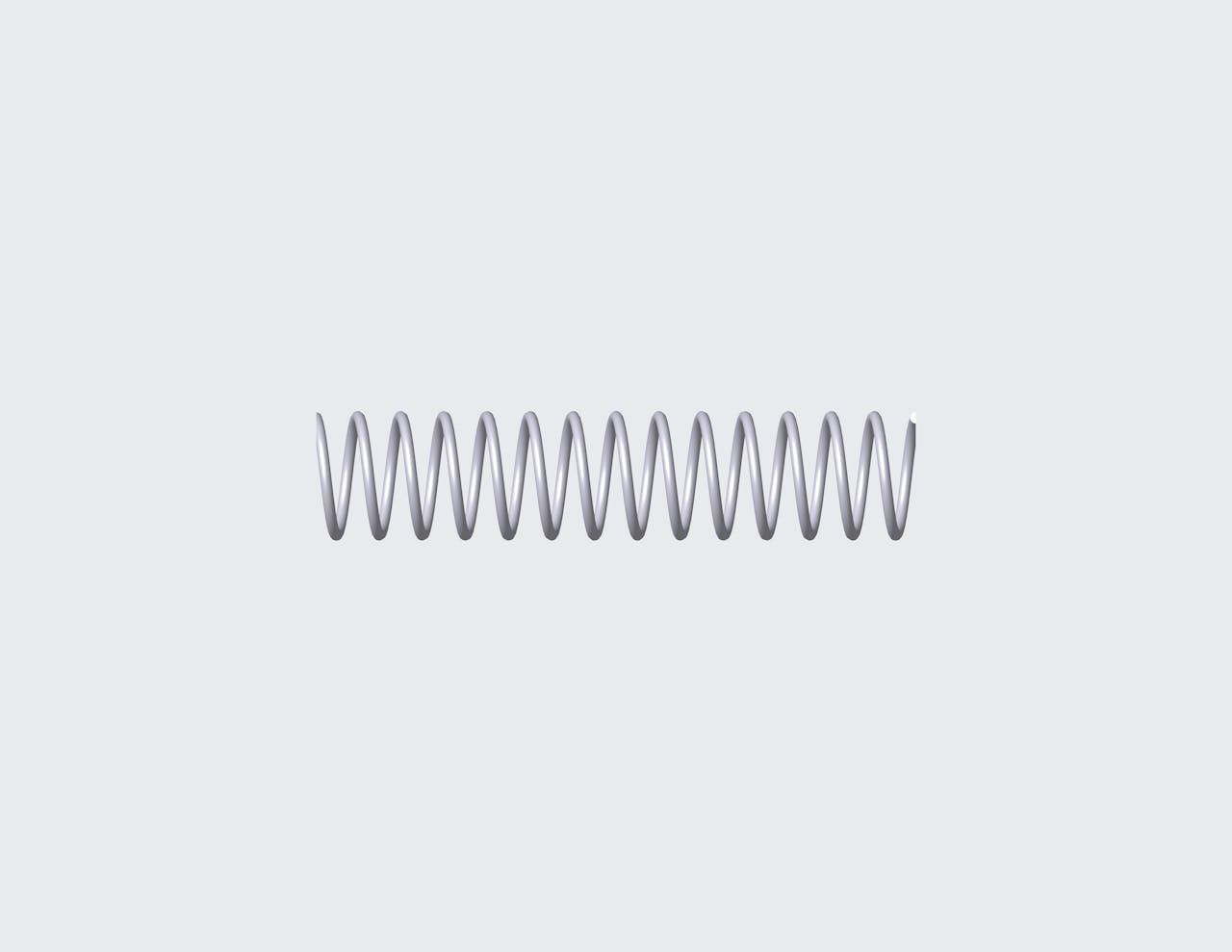

50543SCS - 3.15" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 13.67 coils and closed & ground ends. This spring features an O.D. of 0.682", and an I.D. of 0.562".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50543S
Ends Closed & Ground
Finish Passivated
Free Length 3.15 in
Inside Diameter 0.562 in
Material 316 Stainless Steel
Outside Diameter 0.682 in
Rate 5.707 lbs/in
SKU 50543SCS
Solid Length 0.818 in
Suggested Max Deflection 1.601 in
Suggested Max Load 9.135 lbf
Total Coils 13.67
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50543S
Ends Closed & Ground
Finish Passivated
Free Length 80.01 mm
Inside Diameter 14.27 mm
Material 316 Stainless Steel
Outside Diameter 17.32 mm
Rate 1 N/mm
SKU 50543SCS
Solid Length 20.78 mm
Suggested Max Deflection 40.67 mm
Suggested Max Load 40.63 N
Total Coils 13.67
Wire Diameter 1.52 mm
The compression spring 50543SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50543S compression spring design exhibits exceptional tensile strength and resilience.

The 50543S design is manufactured with a free length of 3.15", with an outer diameter of 0.682", an inner diameter of 0.562", and a total of 13.67 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.707 lbs/in.

The 50543SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50543S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
