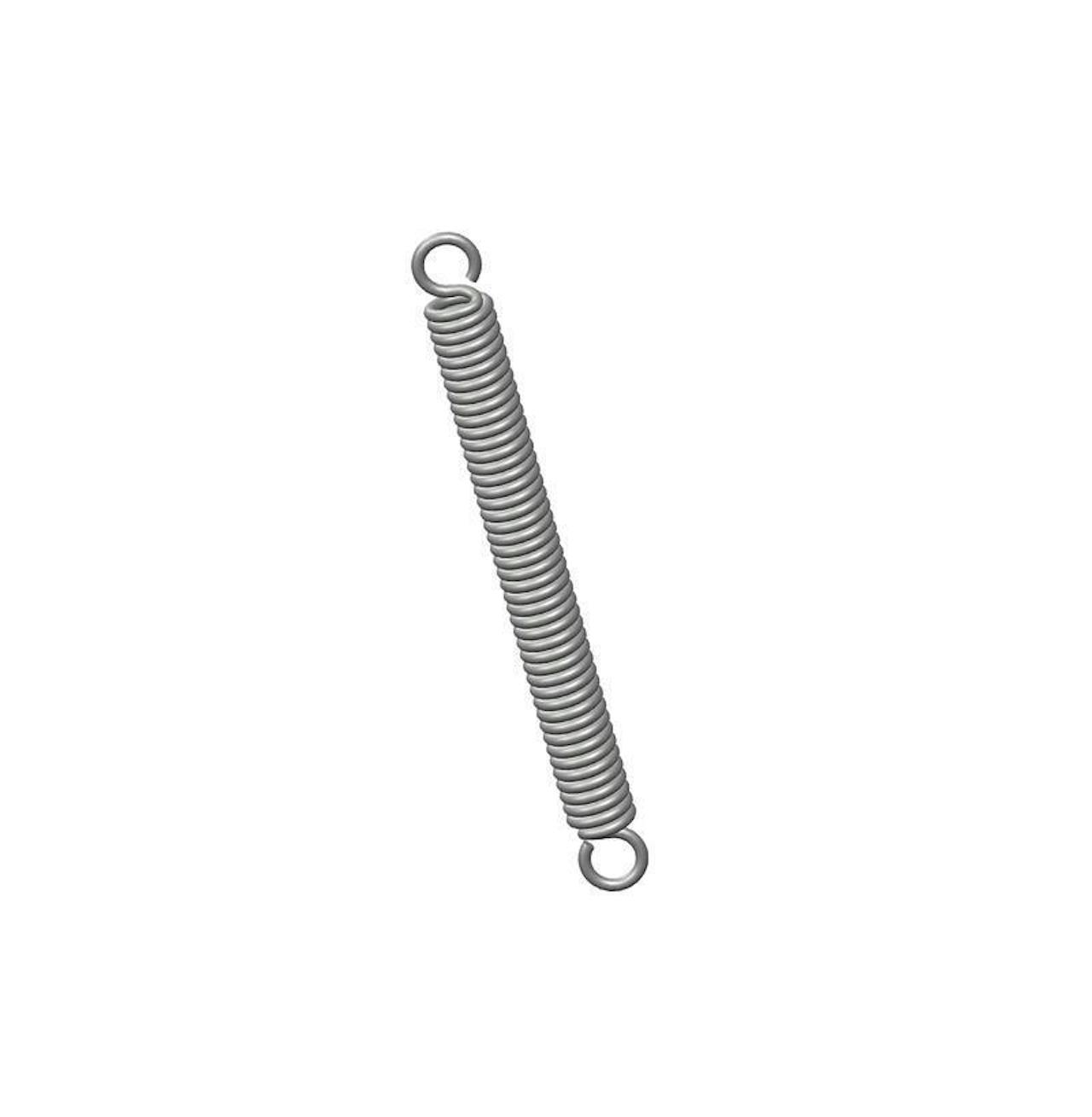

80436CS - 3 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.3 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80436
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 3 in
Material Music Wire
Outside Diameter 0.3 in
Part Type Standard
Rate 19 lbs/in
SKU 80436CS
Sugg Max Deflection 1.1 in
Sugg Max Load 23 lbf
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80436
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 76.2 mm
Material Music Wire
Outside Diameter 7.62 mm
Part Type Standard
Rate 3.33 N/mm
SKU 80436CS
Sugg Max Deflection 27.94 mm
Sugg Max Load 102.3 N
Wire Diameter 1.4 mm
