50402SCS - 1.181" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

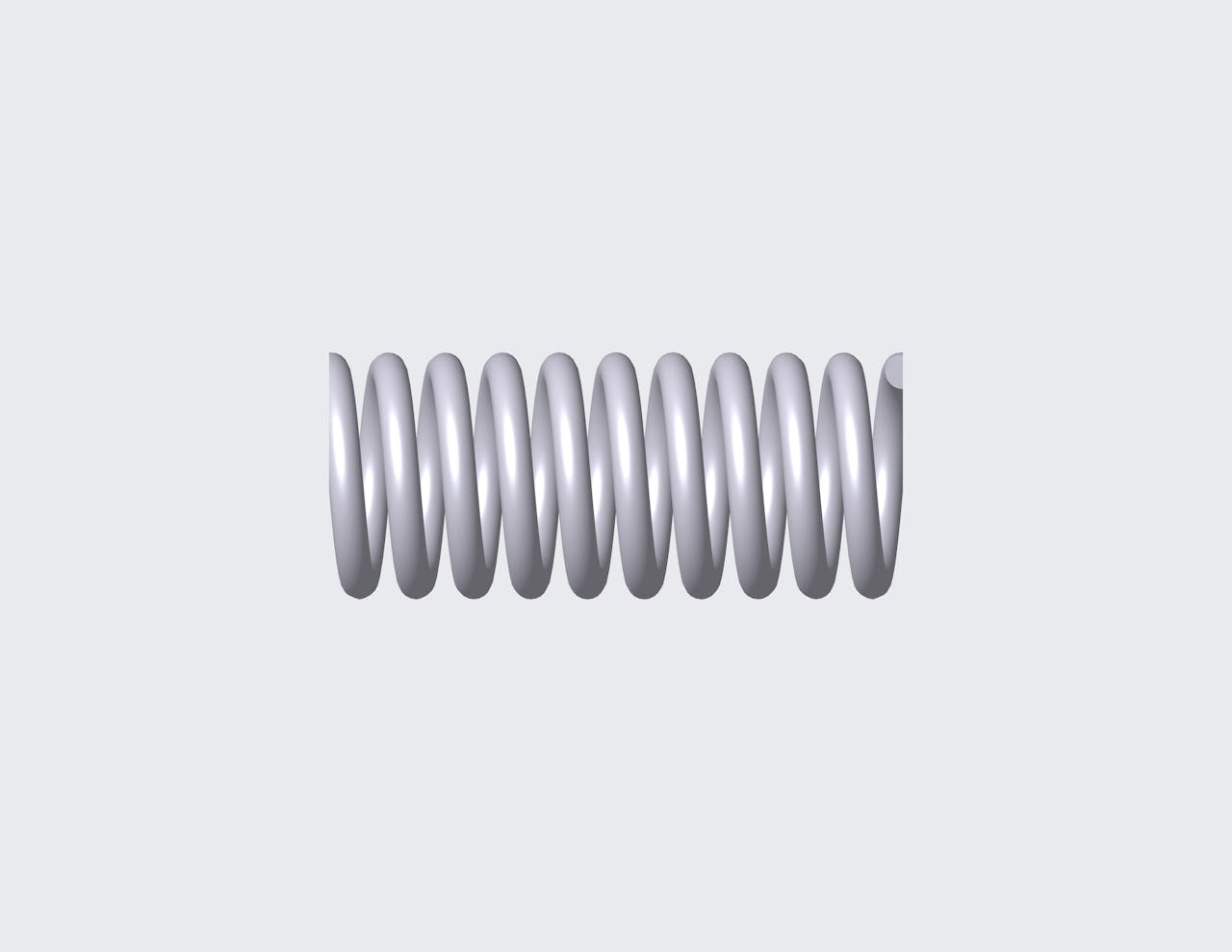

Compression spring manufactured from 316 stainless steel with 9.45 coils and closed & ground ends. This spring features an O.D. of 0.509", and an I.D. of 0.365".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50402S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 1.181 in |
| Inside Diameter | 0.365 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.509 in |
| Rate | 54.17 lbs/in |
| SKU | 50402SCS |
| Solid Length | 0.681 in |
| Suggested Max Deflection | 0.365 in |
| Suggested Max Load | 19.798 lbf |
| Total Coils | 9.45 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50402S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 30 mm |
| Inside Diameter | 9.27 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 12.93 mm |
| Rate | 9.49 N/mm |
| SKU | 50402SCS |
| Solid Length | 17.3 mm |
| Suggested Max Deflection | 9.27 mm |
| Suggested Max Load | 88.06 N |
| Total Coils | 9.45 |
| Wire Diameter | 1.83 mm |
The 50402SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter 316 stainless steel, the 50402S spring design exhibits reliable strength across its 9.45 active coils, withstanding repeated compression cycles with a maximum load of 19.798 lbf without succumbing to fatigue.
We manufacture the 50402S design to provide a compression spring that is 1.181" long at rest and provides a consistent rate of 54.17 lbs/in along its recommended maximum of 0.365" deflection. For best results, your application should fully accommodate the inner (0.365") and outer (0.509") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 50402S design to provide a compression spring that is 1.181" long at rest and provides a consistent rate of 54.17 lbs/in along its recommended maximum of 0.365" deflection. For best results, your application should fully accommodate the inner (0.365") and outer (0.509") diameters of this spring and be designed for its closed & ground end configuration.
