Century Spring

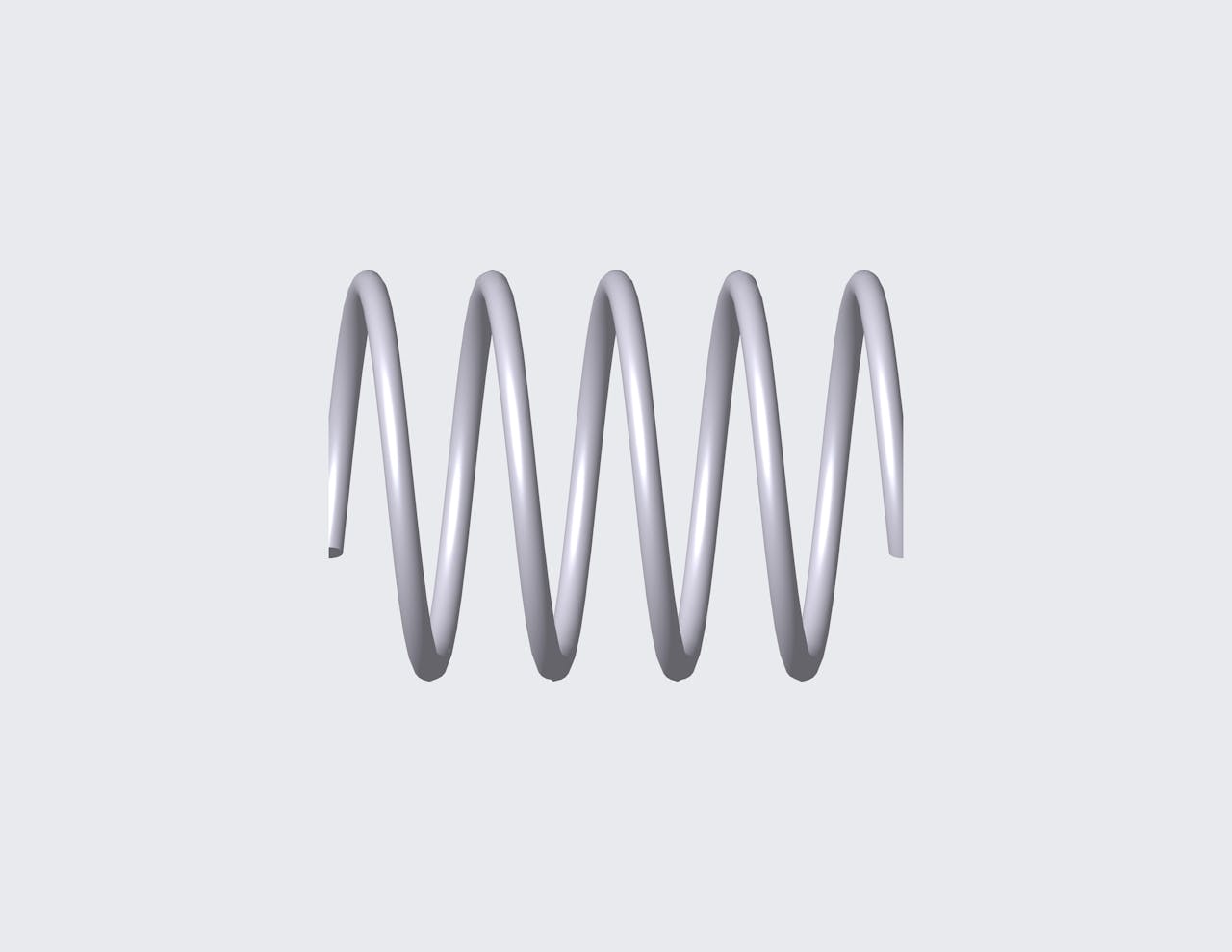

50299SCS - 0.591" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 4.4 coils and closed & ground ends. This spring features an O.D. of 0.423", and an I.D. of 0.364".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50299S
Ends Closed & Ground
Finish Passivated
Free Length 0.591 in
Inside Diameter 0.364 in
Material 316 Stainless Steel
Outside Diameter 0.423 in
Rate 6.488 lbs/in
SKU 50299SCS
Solid Length 0.13 in
Suggested Max Deflection 0.294 in
Suggested Max Load 1.908 lbf
Total Coils 4.4
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50299S
Ends Closed & Ground
Finish Passivated
Free Length 15.01 mm
Inside Diameter 9.25 mm
Material 316 Stainless Steel
Outside Diameter 10.74 mm
Rate 1.14 N/mm
SKU 50299SCS
Solid Length 3.3 mm
Suggested Max Deflection 7.47 mm
Suggested Max Load 8.49 N
Total Coils 4.4
Wire Diameter 0.76 mm
The 50299SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter 316 stainless steel, the 50299S spring design exhibits reliable strength across its 4.4 active coils, withstanding repeated compression cycles with a maximum load of 1.908 lbf without succumbing to fatigue.

We manufacture the 50299S design to provide a compression spring that is 0.591" long at rest and provides a consistent rate of 6.488 lbs/in along its recommended maximum of 0.294" deflection. For best results, your application should fully accommodate the inner (0.364") and outer (0.423") diameters of this spring and be designed for its closed & ground end configuration.
