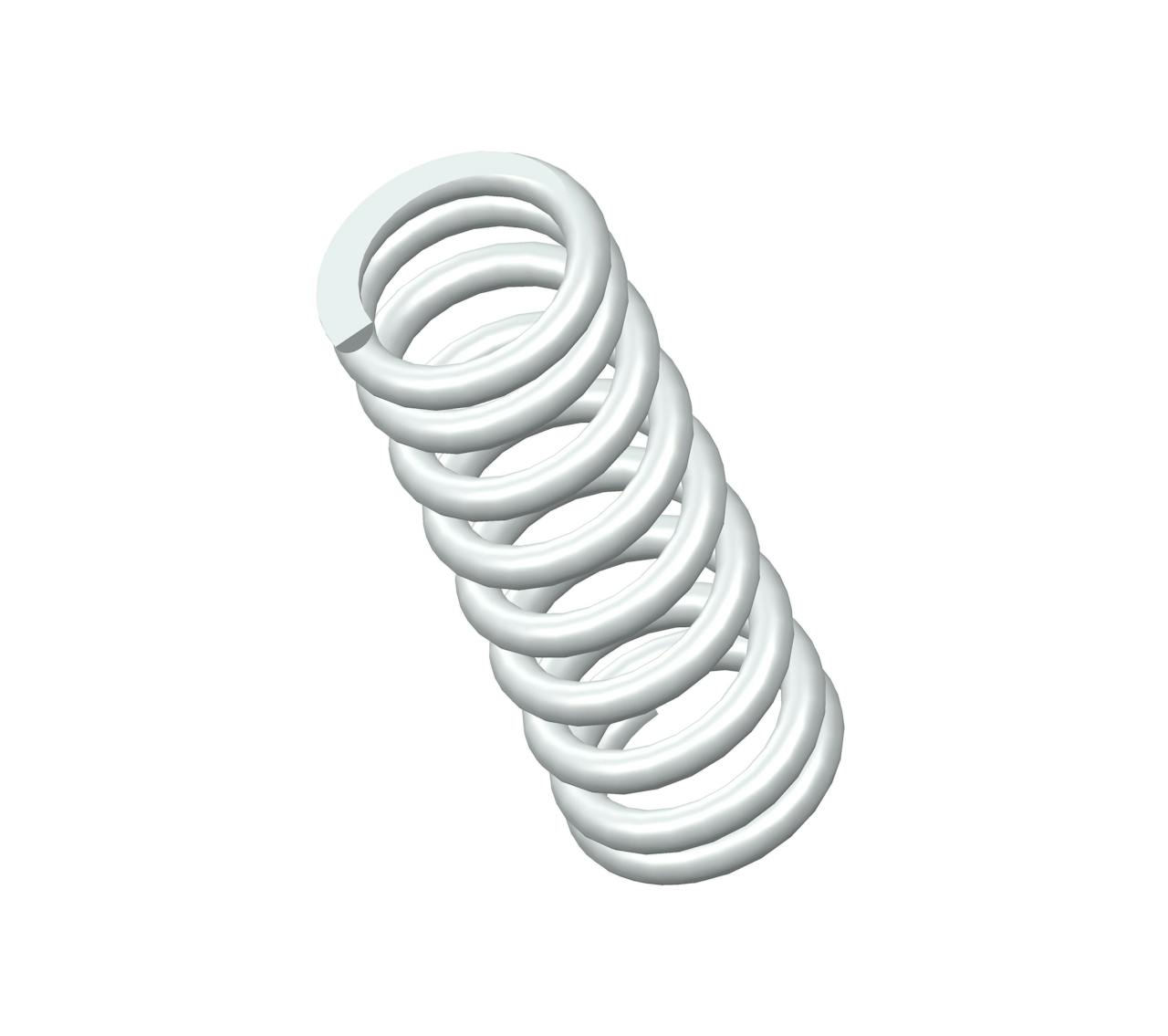

B10-23CS - 1.06" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 9.25 coils and closed & ground ends. This spring features an O.D. of 0.39", and an I.D. of 0.274".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-23 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.274 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.39 in |
| Part Type | Standard |
| Rate | 54 lbs/in |
| SKU | B10-23CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.3 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 9.25 |
| Wire Diameter | 0.058 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B10-23 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 6.96 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.91 mm |
| Part Type | Standard |
| Rate | 9.46 N/mm |
| SKU | B10-23CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 7.62 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 9.25 |
| Wire Diameter | 1.47 mm |
The B10-23 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B10-23CS compression spring is designed with a free length of 0.47" total of 2.9 coils, and a rate of 28 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B10-23 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B10-23CS compression spring is designed with a free length of 0.47" total of 2.9 coils, and a rate of 28 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B10-23 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
