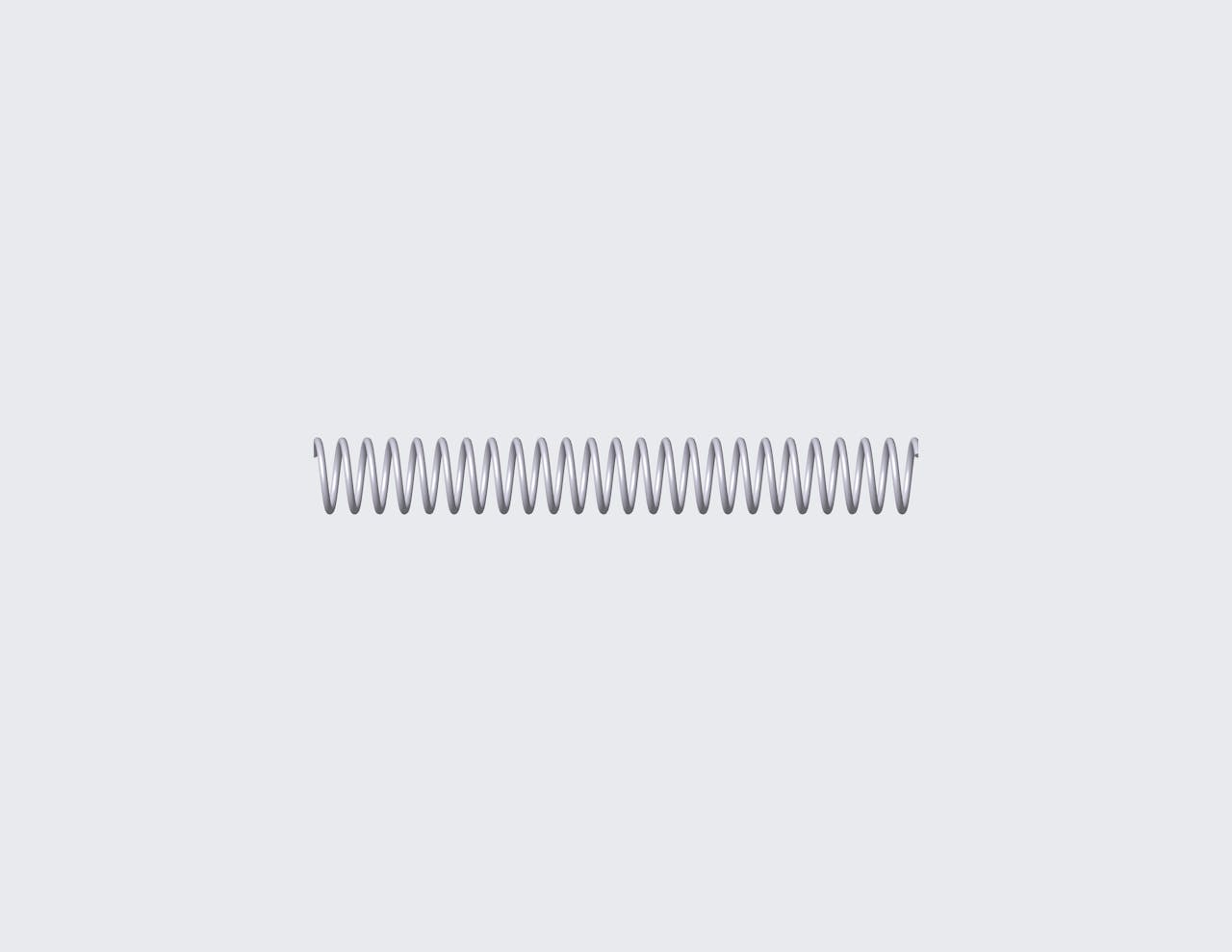

50291SCS - 3.15" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 24 coils and closed & ground ends. This spring features an O.D. of 0.404", and an I.D. of 0.325".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50291S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 3.15 in |
| Inside Diameter | 0.325 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.404 in |
| Rate | 2.826 lbs/in |
| SKU | 50291SCS |
| Solid Length | 0.945 in |
| Suggested Max Deflection | 1.654 in |
| Suggested Max Load | 4.676 lbf |
| Total Coils | 24 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50291S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 80.01 mm |
| Inside Diameter | 8.26 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 10.26 mm |
| Rate | 0.49 N/mm |
| SKU | 50291SCS |
| Solid Length | 24 mm |
| Suggested Max Deflection | 42.01 mm |
| Suggested Max Load | 20.8 N |
| Total Coils | 24 |
| Wire Diameter | 0.99 mm |
The compression spring 50291SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50291S compression spring design exhibits exceptional tensile strength and resilience.
The 50291S design is manufactured with a free length of 3.15", with an outer diameter of 0.404", an inner diameter of 0.325", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.826 lbs/in.
The 50291SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50291S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 50291S design is manufactured with a free length of 3.15", with an outer diameter of 0.404", an inner diameter of 0.325", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.826 lbs/in.
The 50291SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50291S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
