Century Spring

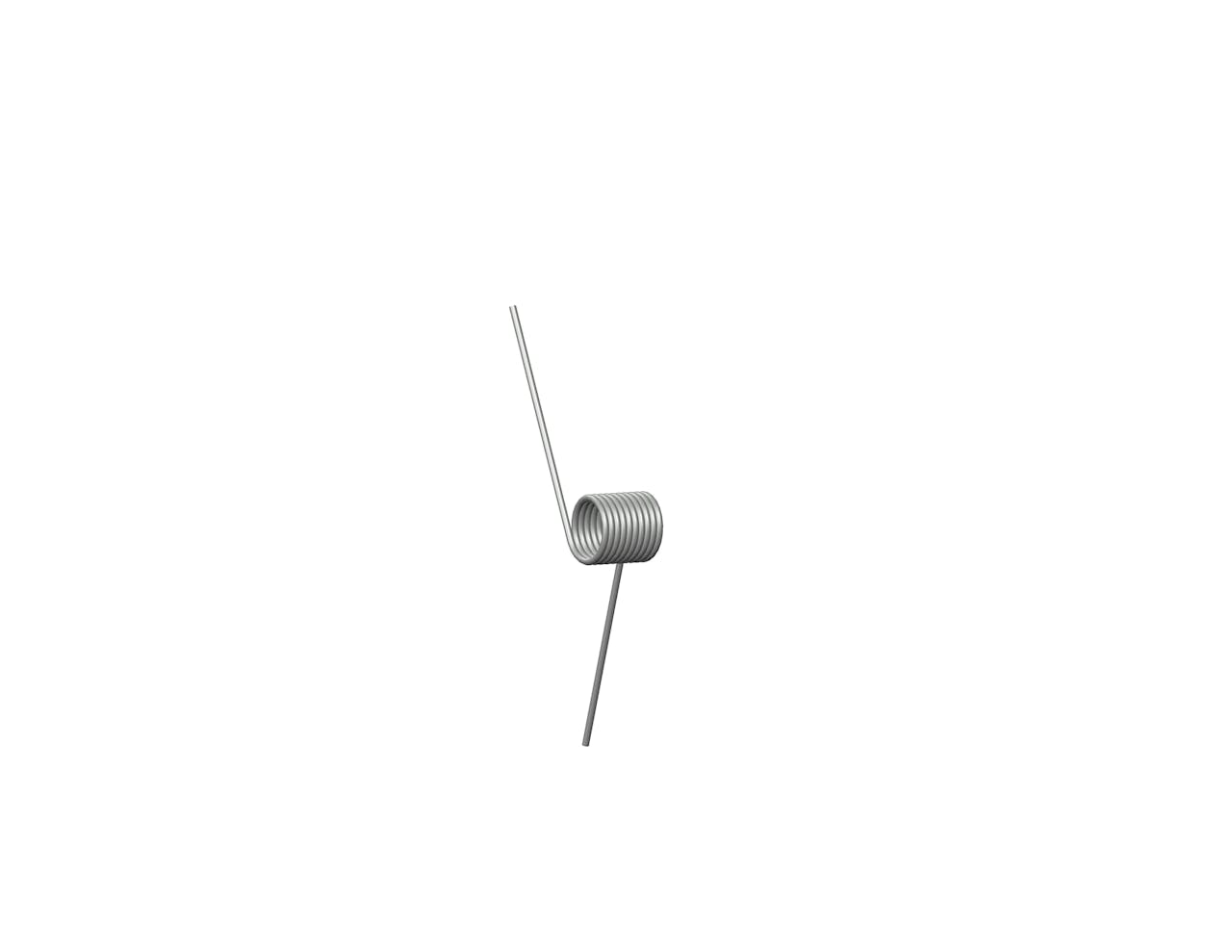

TO-5232LCS - 225 Degree, 0.1223 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 9.875 total coils and 4 Inch legs. This spring features an O.D. of 1.126 Inch, an I.D. of 0.902 Inch, and a spring rate of 0.1223 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 1.34 in
Brand Century Spring
Display Name TO-5232L
Finish None
Inside Diameter 0.902 in
Leg Length 4 in
Mandrel Diameter 0.73 in
Material Music Wire
Max Deflection (deg) (suggested) 203
Max Torque (suggested) 25 lbs/in
Measurement Units Standard
Outside Diameter 1.126 in
Rate 0.1223 lbf-in/deg
SKU TO-5232LCS
Total Coils 9.875
Wind Direction Left
Wire Diameter 0.112 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 34.04 mm
Brand Century Spring
Display Name TO-5232L
Finish None
Inside Diameter 22.91 mm
Leg Length 101.6 mm
Mandrel Diameter 18.54 mm
Material Music Wire
Max Deflection (deg) (suggested) 203
Max Torque (suggested) 4.38 N-mm
Measurement Units Standard
Outside Diameter 28.6 mm
Rate 13.82 N-mm/deg
SKU TO-5232LCS
Total Coils 9.88
Wind Direction Left
Wire Diameter 2.84 mm
