Century Spring

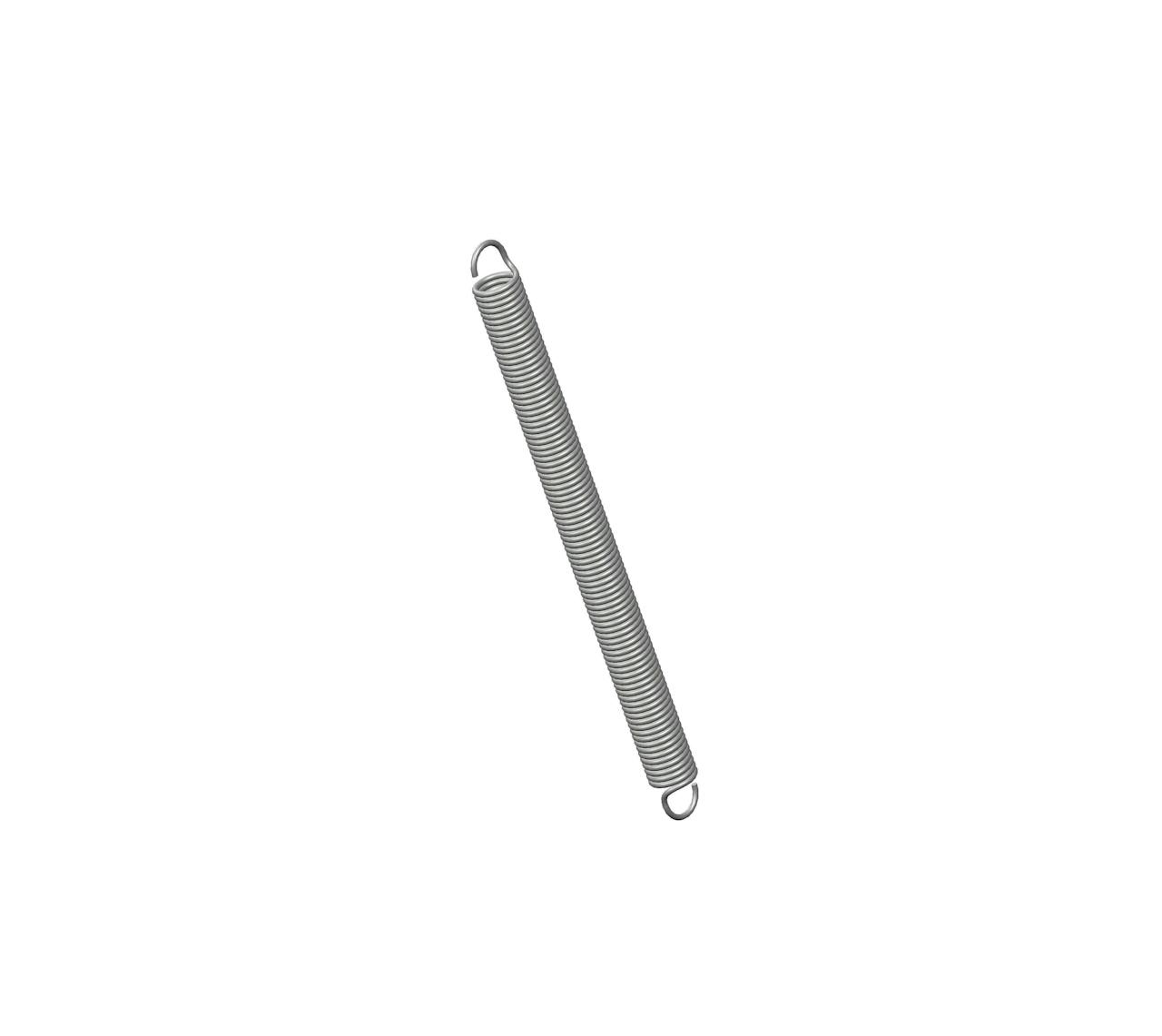

5023CS - 6.63 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5023
Ends Machine Hook
Finish Zinc
Initial Tension 4 lb
Length 6.63 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 3.4 lbs/in
SKU 5023CS
Sugg Max Deflection 4.5 in
Sugg Max Load 19 lbf
Wind Direction Left
Wire Diameter 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5023
Ends Machine Hook
Finish Zinc
Initial Tension 1.81 kg
Length 168.4 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.6 N/mm
SKU 5023CS
Sugg Max Deflection 114.3 mm
Sugg Max Load 84.51 N
Wind Direction Left
Wire Diameter 1.65 mm
