Century Spring

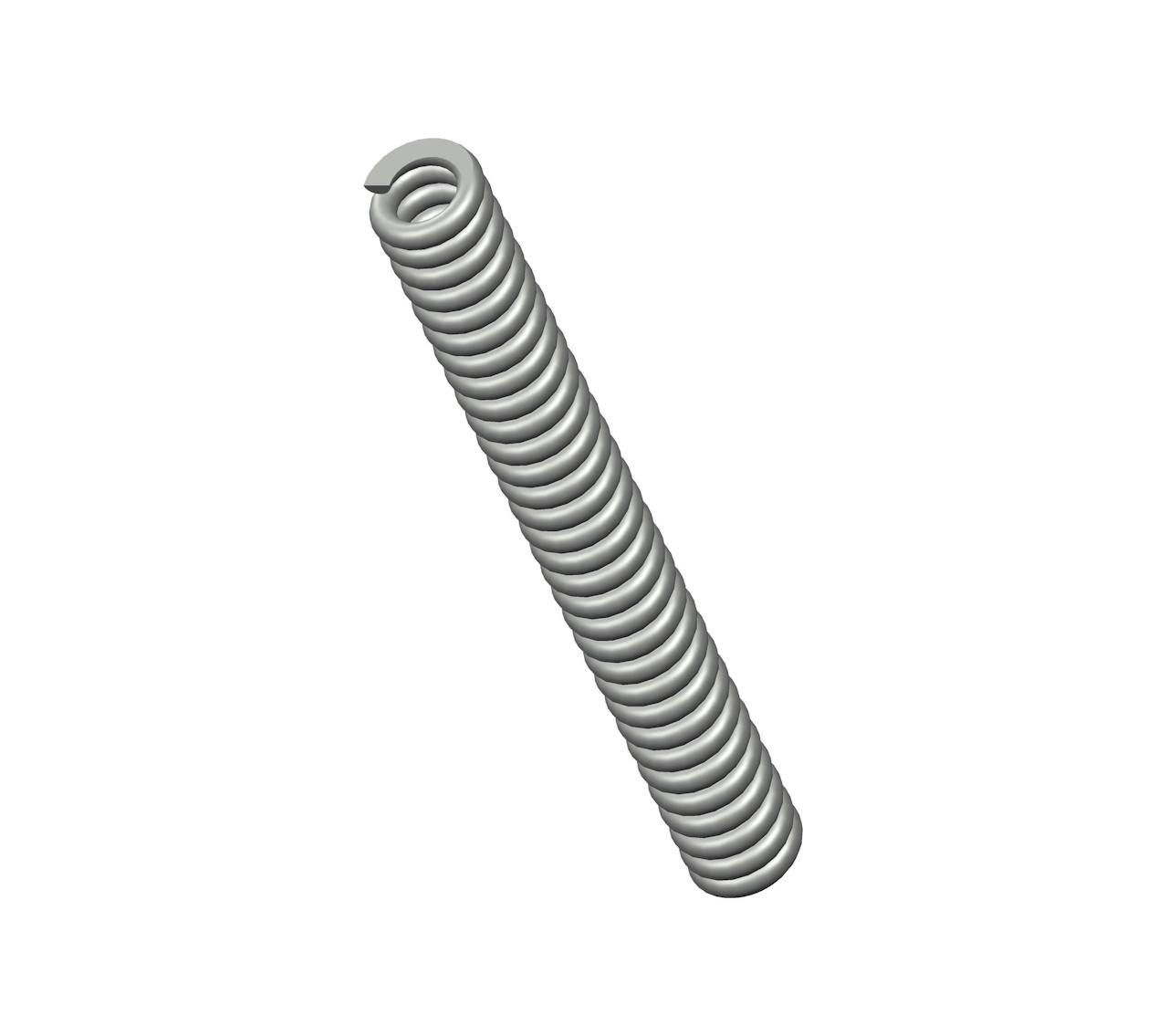

3032CS - 4" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 31 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.258".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3032
Ends Closed & Ground
Finish Zinc
Free Length 4 in
Inside Diameter 0.258 in
Material Spring Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 126 lbs/in
SKU 3032CS
Solid Length 3.26 in
Suggested Max Deflection 0.58 in
Suggested Max Load 74 lbf
Total Coils 31
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3032
Ends Closed & Ground
Finish Zinc
Free Length 101.6 mm
Inside Diameter 6.55 mm
Material Spring Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 22.06 N/mm
SKU 3032CS
Solid Length 82.8 mm
Suggested Max Deflection 14.73 mm
Suggested Max Load 329.15 N
Total Coils 31
Wire Diameter 2.67 mm
The compression spring 3032CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 3032 compression spring design exhibits exceptional tensile strength and resilience.

The 3032 design is manufactured with a free length of 4", with an outer diameter of 0.468", an inner diameter of 0.258", and a total of 31 coils, expertly designed to deliver consistent compression characteristics including a rate of 126 lbs/in.

The 3032CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3032 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
