Century Spring

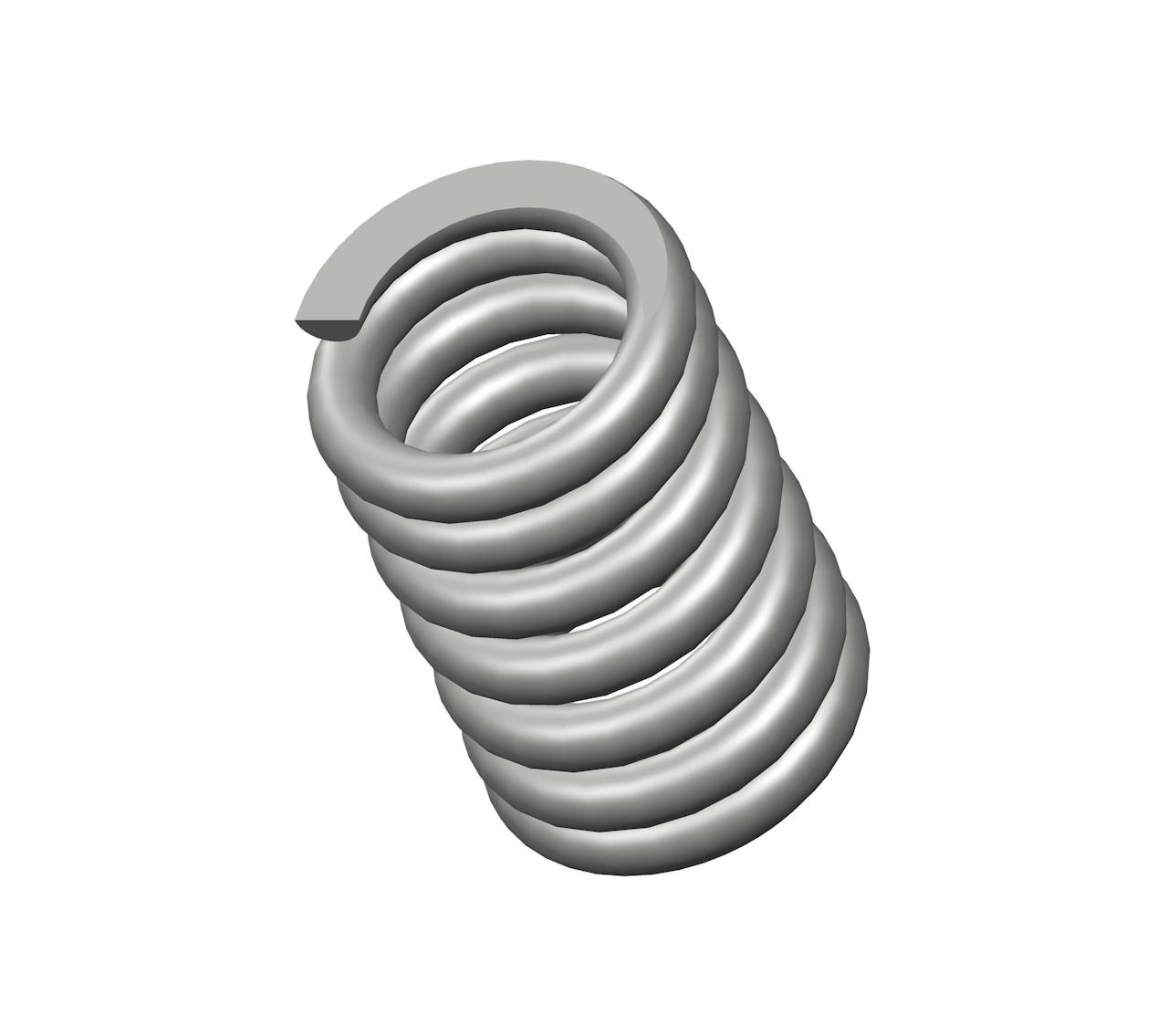

4410CS - 4" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 7 coils and closed & ground ends. This spring features an O.D. of 2.625", and an I.D. of 1.749".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4410
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 1.749 in
Material Oil Tempered
Outside Diameter 2.625 in
Part Type Standard
Rate 1012 lbs/in
SKU 4410CS
Solid Length 3.07 in
Suggested Max Deflection 0.82 in
Suggested Max Load 834 lbf
Total Coils 7
Wire Diameter 0.438 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4410
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 44.42 mm
Material Oil Tempered
Outside Diameter 66.68 mm
Part Type Standard
Rate 177.2 N/mm
SKU 4410CS
Solid Length 77.98 mm
Suggested Max Deflection 20.83 mm
Suggested Max Load 3709.63 N
Total Coils 7
Wire Diameter 11.13 mm
The 4410CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.438" diameter oil tempered, the 4410 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 834 lbf without succumbing to fatigue.

We manufacture the 4410 design to provide a compression spring that is 4" long at rest and provides a consistent rate of 1012 lbs/in along its recommended maximum of 0.82" deflection. For best results, your application should fully accommodate the inner (1.749") and outer (2.625") diameters of this spring and be designed for its closed & ground end configuration.
