Century Spring

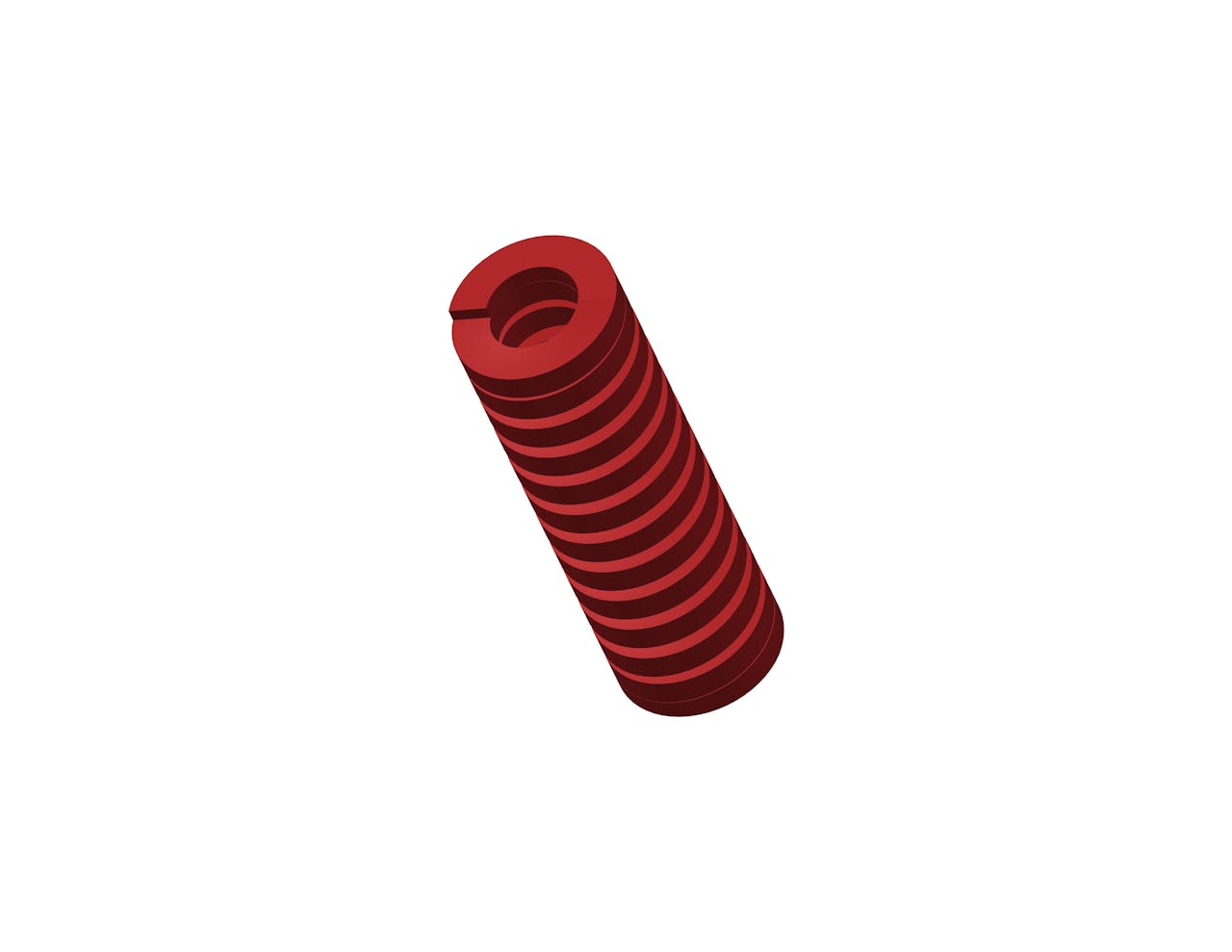

D-9241826CS - 4.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 722 lb
Brand Century Spring
Deflection For Average Life 0.9 in
Deflection For Long Life 1.12 in
Display Name D-9241826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 4.5 in
Hole Size 1.5 in
Long Life Deflection Force 902 lb
Material Chrome Silicon
Maximum Deflection 1.35 in
Maximum Deflection Force 1083 lb
Measurement Units Standard
Rate 804 lbs/in
Rod Size 0.75 in
SKU D-9241826CS
Wire Diameter 0.328 in x 0.245 in
Specs (in metric)
Label Value
Average Life Deflection Force 327.44 kg
Brand Century Spring
Deflection For Average Life 22.86 mm
Deflection For Long Life 28.45 mm
Display Name D-9241826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 114.3 mm
Hole Size 38.1 mm
Long Life Deflection Force 409.07 kg
Material Chrome Silicon
Maximum Deflection 34.29 mm
Maximum Deflection Force 491.16 kg
Measurement Units Standard
Rate 140.78 N/mm
Rod Size 19.05 mm
SKU D-9241826CS
Wire Diameter 8.33 mm x 6.22 mm
