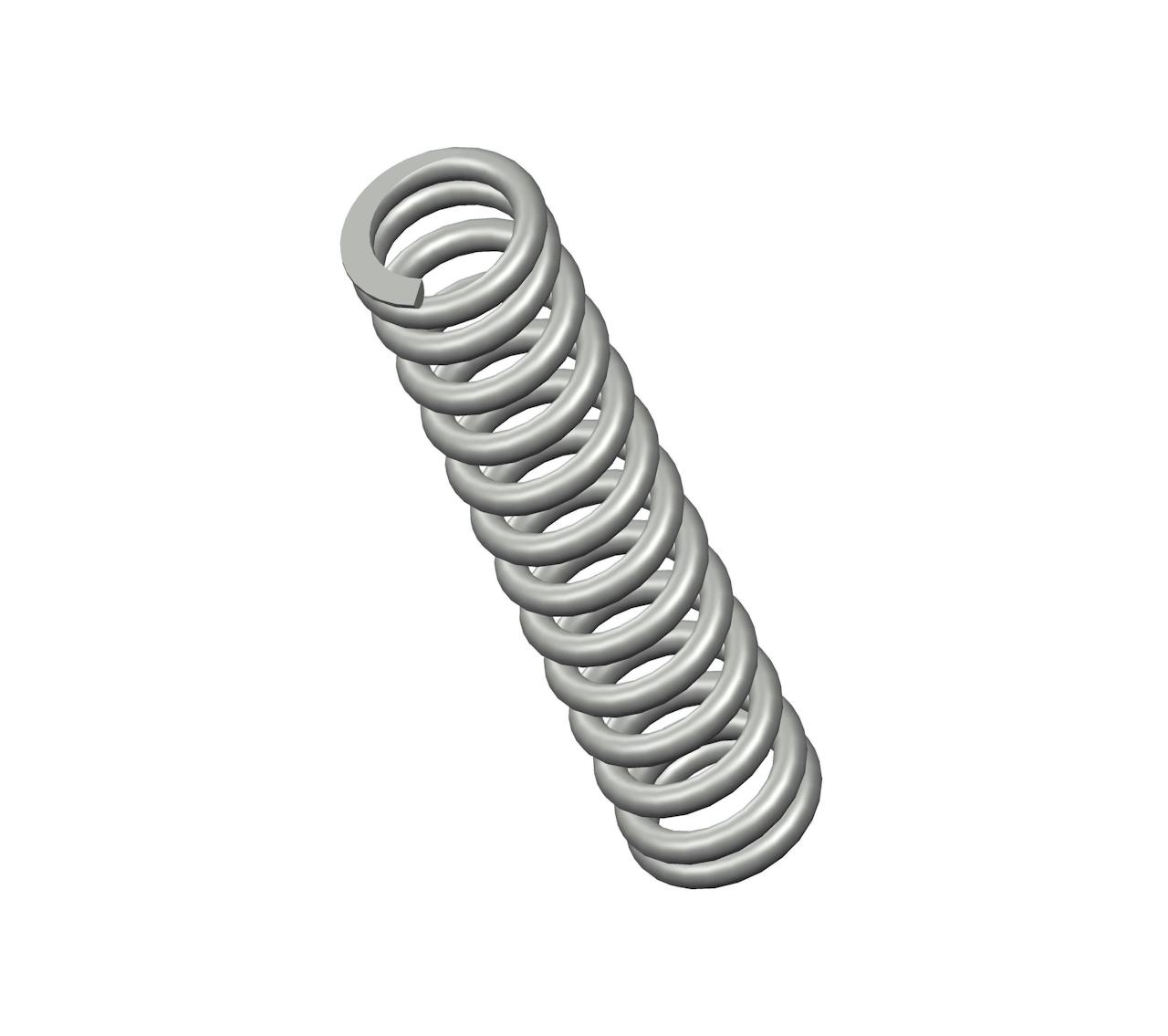

4322CS - 2.25" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.34".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4322
Ends Closed & Ground
Finish Zinc
Free Length 2.25 in
Inside Diameter 0.34 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 69 lbs/in
SKU 4322CS
Solid Length 1.08 in
Suggested Max Deflection 0.49 in
Suggested Max Load 34 lbf
Total Coils 13.5
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4322
Ends Closed & Ground
Finish Zinc
Free Length 57.15 mm
Inside Diameter 8.64 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 12.08 N/mm
SKU 4322CS
Solid Length 27.43 mm
Suggested Max Deflection 12.45 mm
Suggested Max Load 151.23 N
Total Coils 13.5
Wire Diameter 2.03 mm
The 4322CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter spring steel, the 4322 spring design exhibits reliable strength across its 13.5 active coils, withstanding repeated compression cycles with a maximum load of 34 lbf without succumbing to fatigue.

We manufacture the 4322 design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 69 lbs/in along its recommended maximum of 0.49" deflection. For best results, your application should fully accommodate the inner (0.34") and outer (0.5") diameters of this spring and be designed for its closed & ground end configuration.
