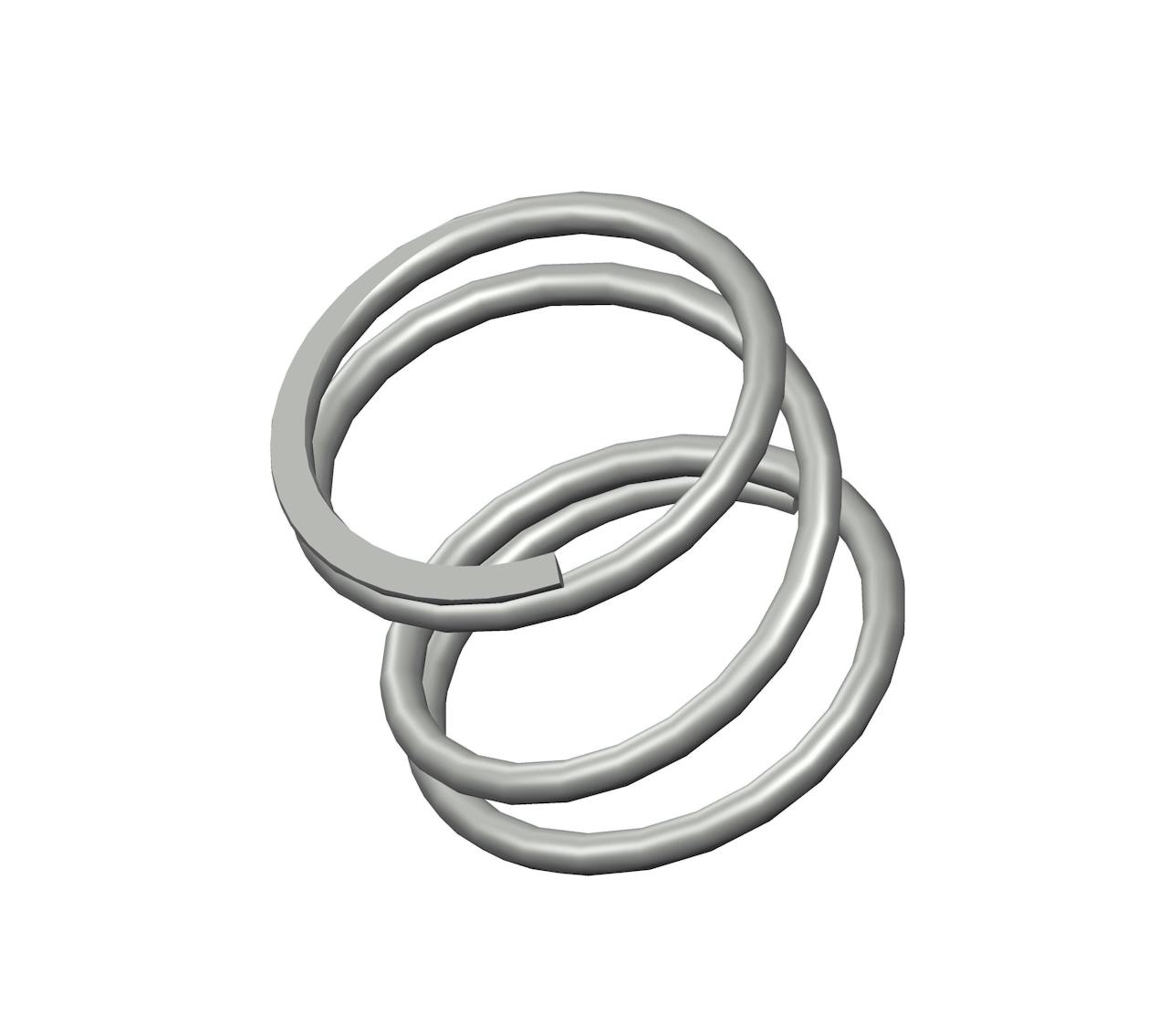

4099-BCS - 5.38" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 3.63 coils and closed & ground ends. This spring features an O.D. of 6.25", and an I.D. of 5.25".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 4099-B |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5.38 in |
| Inside Diameter | 5.25 in |
| Material | Oil Tempered |
| Outside Diameter | 6.25 in |
| Part Type | Standard |
| Rate | 291 lbs/in |
| SKU | 4099-BCS |
| Solid Length | 1.81 in |
| Suggested Max Deflection | 1.8 in |
| Suggested Max Load | 529 lbf |
| Total Coils | 3.63 |
| Wire Diameter | 0.5 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 4099-B |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 136.65 mm |
| Inside Diameter | 133.35 mm |
| Material | Oil Tempered |
| Outside Diameter | 158.75 mm |
| Part Type | Standard |
| Rate | 50.95 N/mm |
| SKU | 4099-BCS |
| Solid Length | 45.97 mm |
| Suggested Max Deflection | 45.72 mm |
| Suggested Max Load | 2352.99 N |
| Total Coils | 3.63 |
| Wire Diameter | 12.7 mm |
The compression spring 4099-BCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 4099-B compression spring design exhibits exceptional tensile strength and resilience.
The 4099-B design is manufactured with a free length of 5.38", with an outer diameter of 6.25", an inner diameter of 5.25", and a total of 3.63 coils, expertly designed to deliver consistent compression characteristics including a rate of 291 lbs/in.
The 4099-BCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 4099-B design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 4099-B design is manufactured with a free length of 5.38", with an outer diameter of 6.25", an inner diameter of 5.25", and a total of 3.63 coils, expertly designed to deliver consistent compression characteristics including a rate of 291 lbs/in.
The 4099-BCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 4099-B design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
