11227CS - 0.84" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

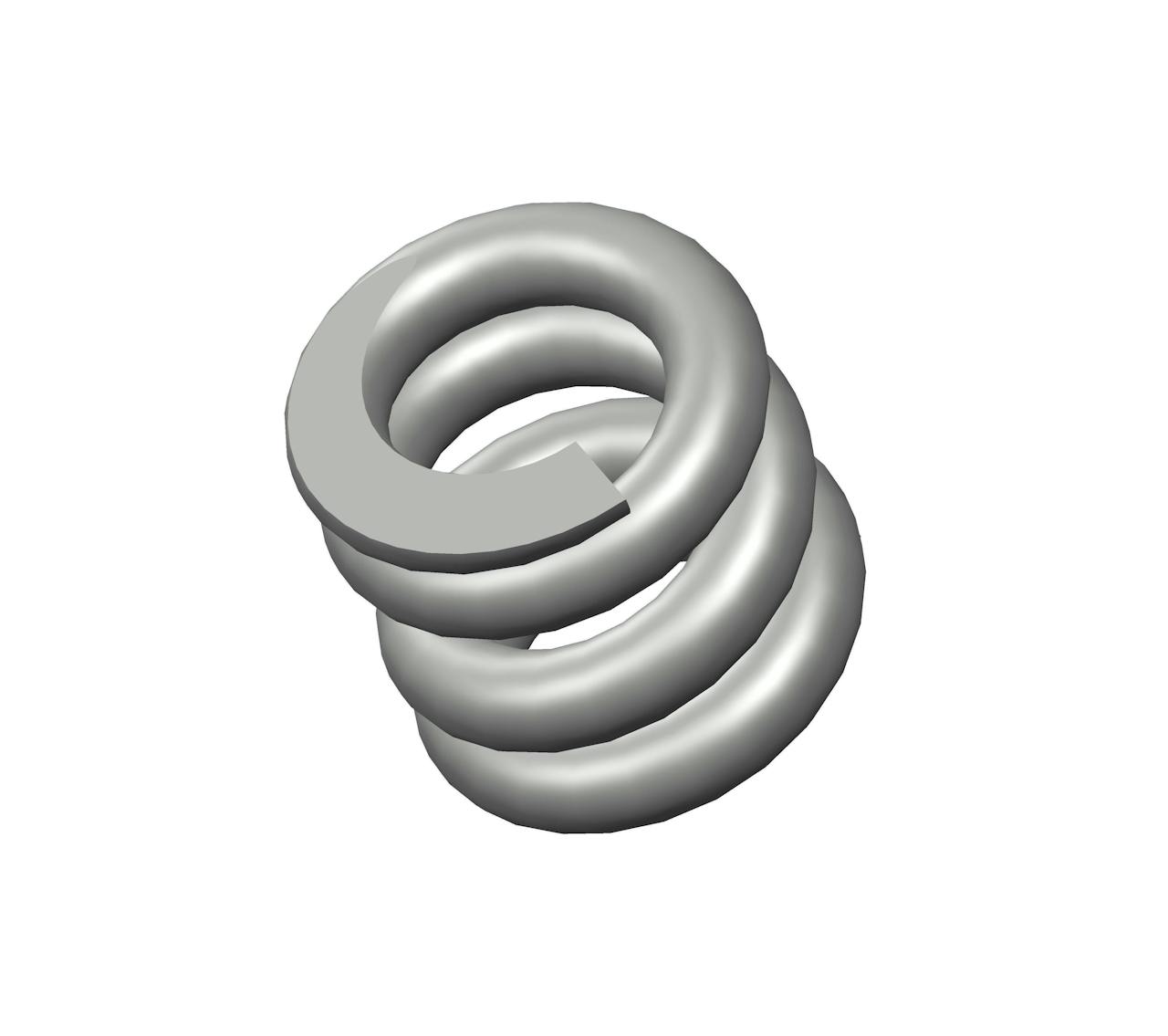

Compression spring manufactured from spring steel with 3.75 coils and closed & ground ends. This spring features an O.D. of 0.828", and an I.D. of 0.474".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11227
Ends Closed & Ground
Finish Zinc
Free Length 0.84 in
Inside Diameter 0.474 in
Material Spring Steel
Outside Diameter 0.828 in
Part Type Standard
Rate 2922 lbs/in
SKU 11227CS
Solid Length 0.66 in
Suggested Max Deflection 0.06 in
Suggested Max Load 185 lbf
Total Coils 3.75
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11227
Ends Closed & Ground
Finish Zinc
Free Length 21.34 mm
Inside Diameter 12.04 mm
Material Spring Steel
Outside Diameter 21.03 mm
Part Type Standard
Rate 511.64 N/mm
SKU 11227CS
Solid Length 16.76 mm
Suggested Max Deflection 1.52 mm
Suggested Max Load 822.88 N
Total Coils 3.75
Wire Diameter 4.5 mm
The compression spring 11227CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11227 compression spring design exhibits exceptional tensile strength and resilience.

The 11227 design is manufactured with a free length of 0.84", with an outer diameter of 0.828", an inner diameter of 0.474", and a total of 3.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 2922 lbs/in.

The 11227CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11227 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
