Century Spring

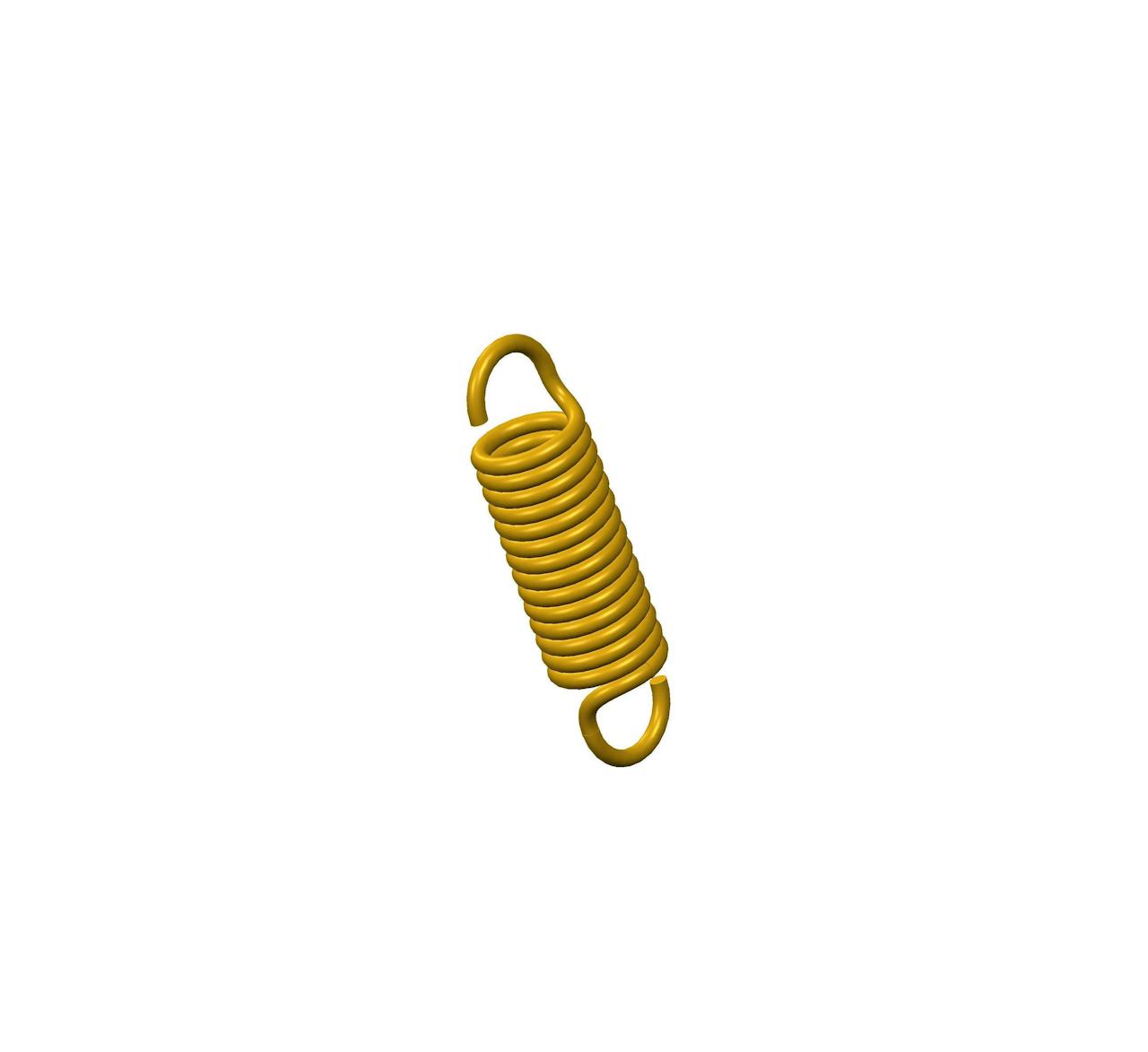

407CS - 0.88 Inch Phosphor Bronze Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Phosphor Bronze. This spring features an O.D. of 0.219 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 407
Ends Machine Hook
Finish None
Initial Tension 0.9 lb
Length 0.88 in
Material Phosphor Bronze
Outside Diameter 0.219 in
Part Type Standard
Rate 10 lbs/in
SKU 407CS
Sugg Max Deflection 0.54 in
Sugg Max Load 6.3 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 407
Ends Machine Hook
Finish None
Initial Tension 0.41 kg
Length 22.35 mm
Material Phosphor Bronze
Outside Diameter 5.56 mm
Part Type Standard
Rate 1.75 N/mm
SKU 407CS
Sugg Max Deflection 13.72 mm
Sugg Max Load 28.02 N
Wind Direction Left
Wire Diameter 0.86 mm
