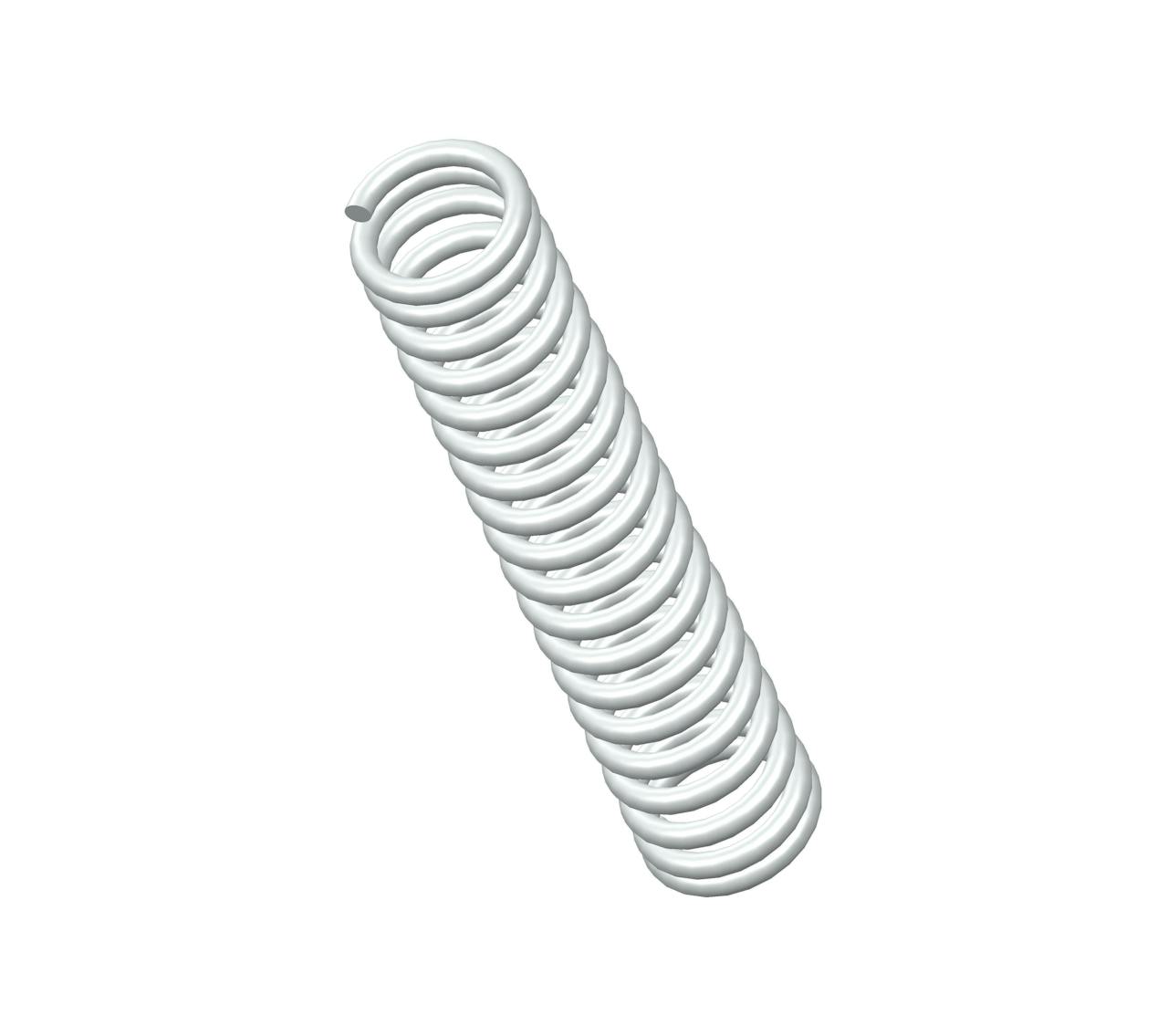

A13-37CS - 2.66" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 19.5 coils and closed ends. This spring features an O.D. of 0.515", and an I.D. of 0.369".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.66 in |
| Inside Diameter | 0.369 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.515 in |
| Part Type | Standard |
| Rate | 25 lbs/in |
| SKU | A13-37CS |
| Solid Length | 1.516 in |
| Suggested Max Deflection | 0.992 in |
| Suggested Max Load | 25 lbf |
| Total Coils | 19.5 |
| Wire Diameter | 0.074 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 67.56 mm |
| Inside Diameter | 9.37 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.08 mm |
| Part Type | Standard |
| Rate | 4.38 N/mm |
| SKU | A13-37CS |
| Solid Length | 38.51 mm |
| Suggested Max Deflection | 25.2 mm |
| Suggested Max Load | 111.2 N |
| Total Coils | 19.5 |
| Wire Diameter | 1.88 mm |
The compression spring A13-37CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A13-37 compression spring design exhibits exceptional tensile strength and resilience.
The A13-37 design is manufactured with a free length of 2.66", with an outer diameter of 0.515", an inner diameter of 0.369", and a total of 19.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The A13-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-37 design is manufactured with a free length of 2.66", with an outer diameter of 0.515", an inner diameter of 0.369", and a total of 19.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The A13-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
