Century Spring

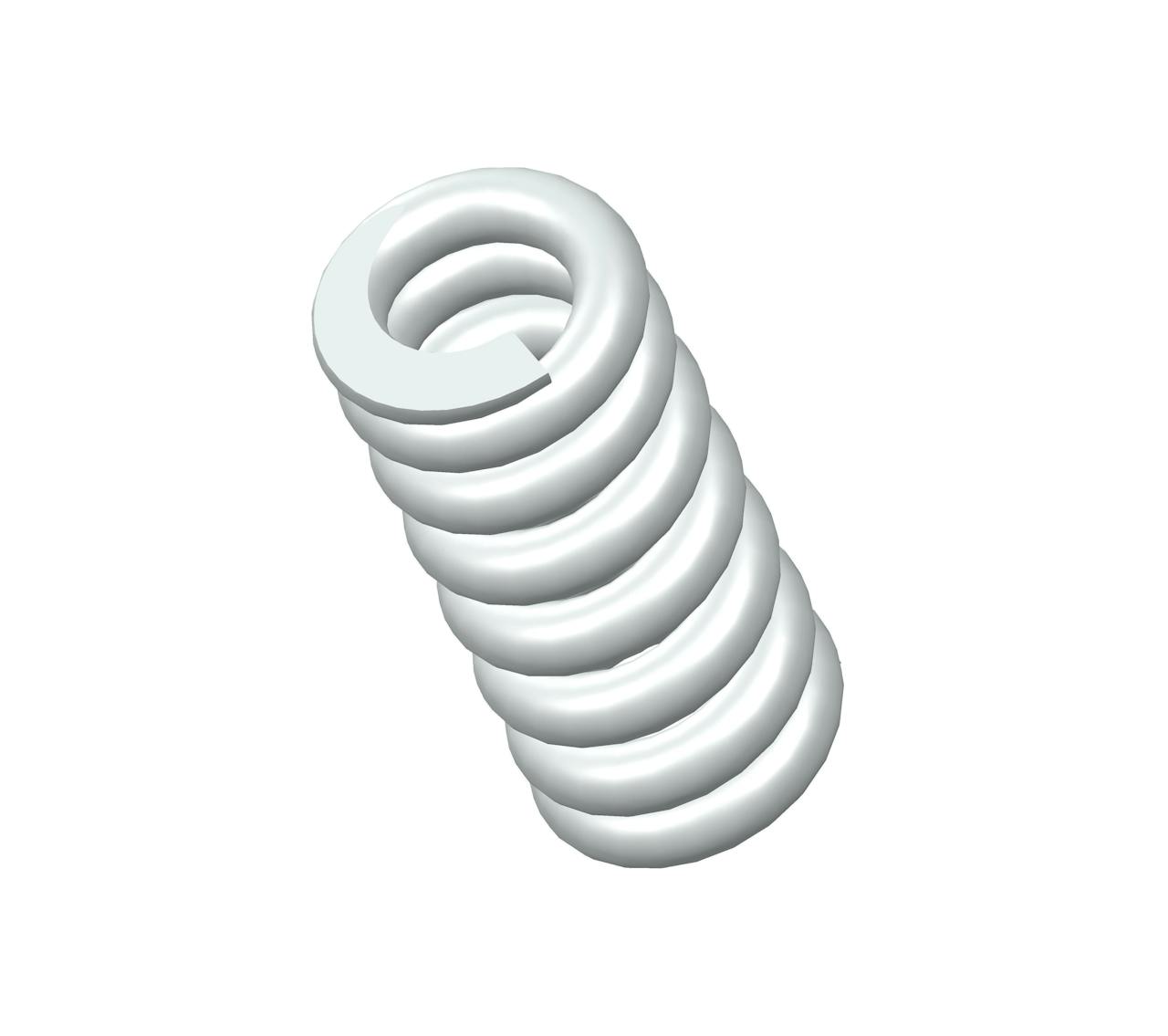

3962CS - 1.06" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.75 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.258".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3962
Ends Closed & Ground
Finish None
Free Length 1.06 in
Inside Diameter 0.258 in
Material 302/304 Stainless Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 552 lbs/in
SKU 3962CS
Solid Length 0.81 in
Suggested Max Deflection 0.12 in
Suggested Max Load 68 lbf
Total Coils 7.75
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3962
Ends Closed & Ground
Finish None
Free Length 26.92 mm
Inside Diameter 6.55 mm
Material 302/304 Stainless Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 96.66 N/mm
SKU 3962CS
Solid Length 20.57 mm
Suggested Max Deflection 3.05 mm
Suggested Max Load 302.46 N
Total Coils 7.75
Wire Diameter 2.67 mm
The 3962 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 3962CS compression spring is designed with a free length of 9.5" total of 39.5 coils, and a rate of 4.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 3962 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
