Century Spring

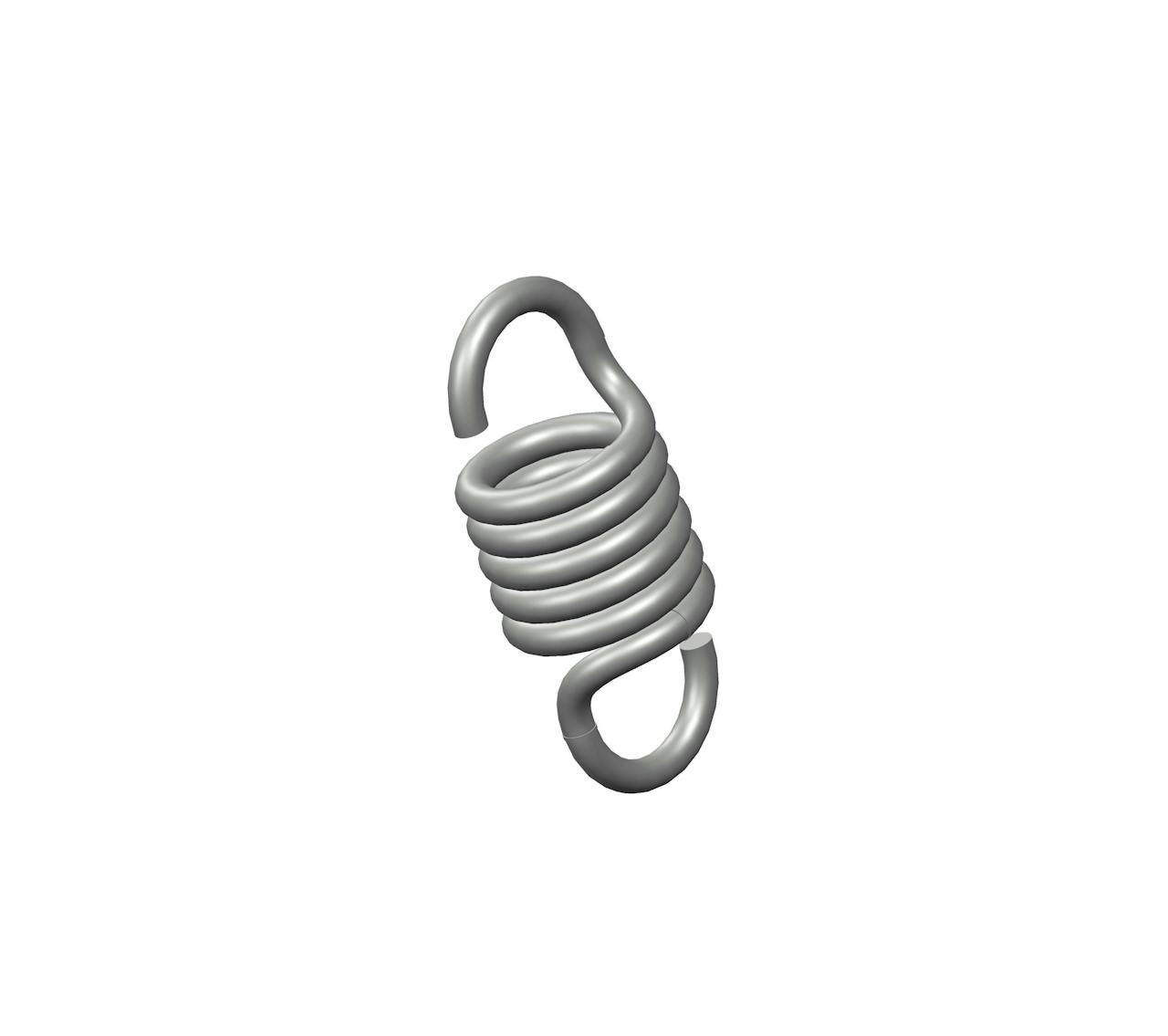

5488CS - 1.91 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.703 Inch and an initial tension of 24 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5488
Ends Machine Hook
Finish None
Initial Tension 24 lb
Length 1.91 in
Material Spring Steel
Outside Diameter 0.703 in
Part Type Standard
Rate 167 lbs/in
SKU 5488CS
Sugg Max Deflection 0.34 in
Sugg Max Load 80 lbf
Wind Direction Left
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5488
Ends Machine Hook
Finish None
Initial Tension 10.88 kg
Length 48.51 mm
Material Spring Steel
Outside Diameter 17.86 mm
Part Type Standard
Rate 29.24 N/mm
SKU 5488CS
Sugg Max Deflection 8.64 mm
Sugg Max Load 355.84 N
Wind Direction Left
Wire Diameter 3.05 mm
