Century Spring

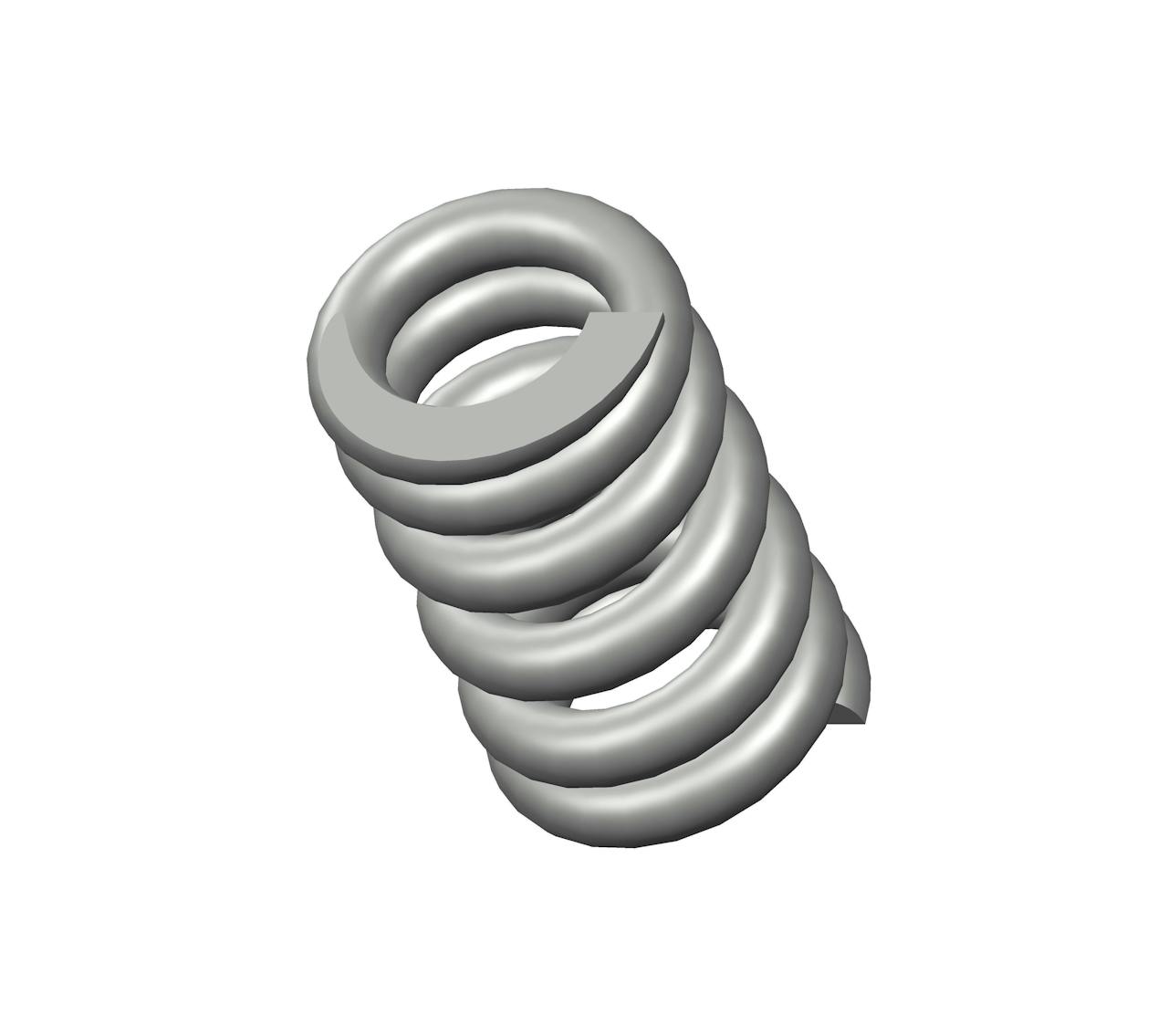

3856CS - 1.06" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.371".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3856
Ends Closed & Ground
Finish Zinc
Free Length 1.06 in
Inside Diameter 0.371 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 757 lbs/in
SKU 3856CS
Solid Length 0.76 in
Suggested Max Deflection 0.13 in
Suggested Max Load 96 lbf
Total Coils 6
Wire Diameter 0.127 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3856
Ends Closed & Ground
Finish Zinc
Free Length 26.92 mm
Inside Diameter 9.42 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 132.55 N/mm
SKU 3856CS
Solid Length 19.3 mm
Suggested Max Deflection 3.3 mm
Suggested Max Load 427.01 N
Total Coils 6
Wire Diameter 3.23 mm
The 3856CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.127" diameter spring steel, the 3856 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 96 lbf without succumbing to fatigue.

We manufacture the 3856 design to provide a compression spring that is 1.06" long at rest and provides a consistent rate of 757 lbs/in along its recommended maximum of 0.13" deflection. For best results, your application should fully accommodate the inner (0.371") and outer (0.625") diameters of this spring and be designed for its closed & ground end configuration.
