Century Spring

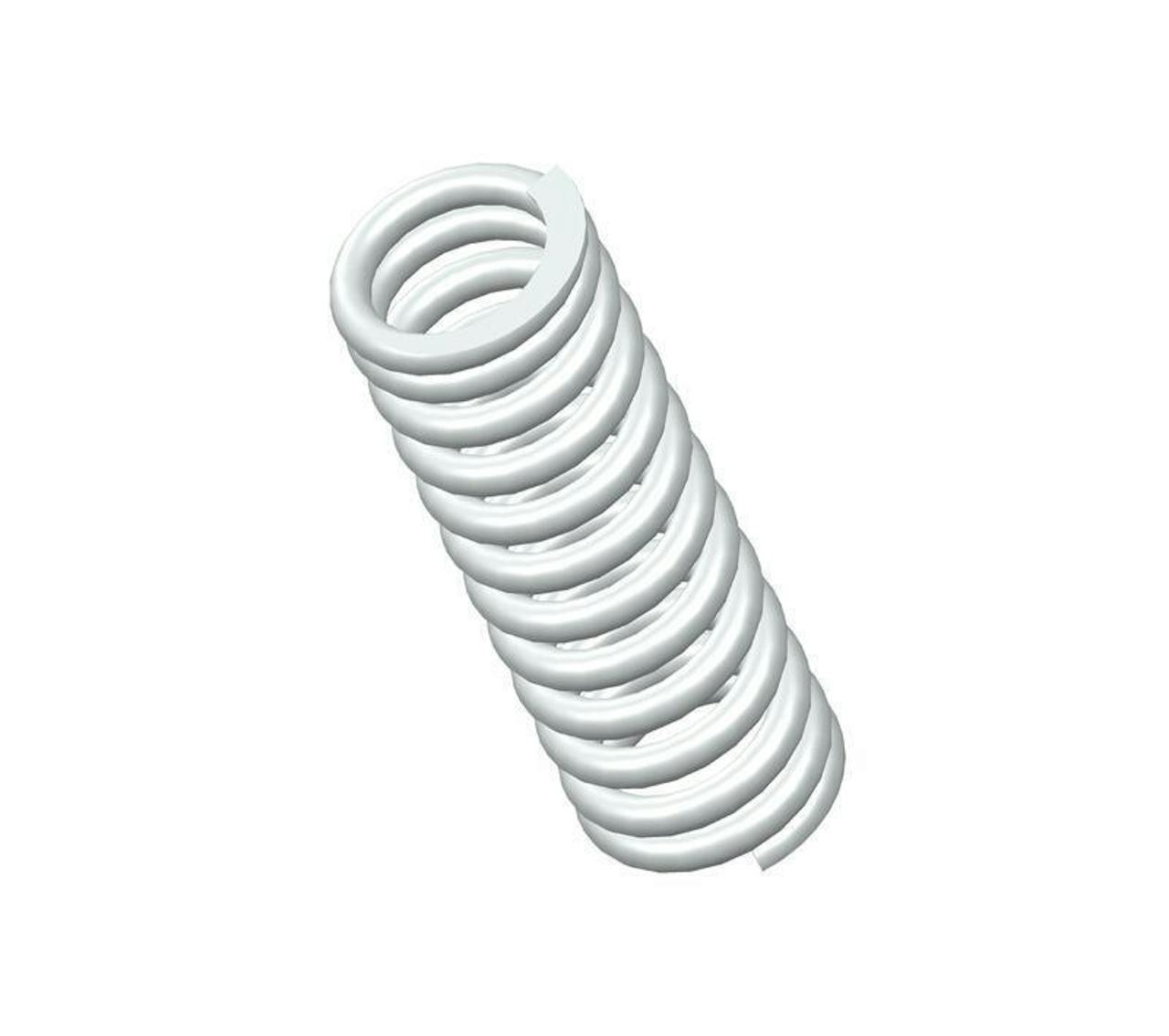

72479SCS - 3" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12.3 coils and closed & ground ends. This spring features an O.D. of 0.975", and an I.D. of 0.679".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72479S
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 0.679 in
Material 302/304 Stainless Steel
Outside Diameter 0.975 in
Part Type Standard
Rate 102 lbs/in
SKU 72479SCS
Solid Length 1.81 in
Suggested Max Deflection 0.88 in
Suggested Max Load 89 lbf
Total Coils 12.3
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72479S
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 17.25 mm
Material 302/304 Stainless Steel
Outside Diameter 24.77 mm
Part Type Standard
Rate 17.86 N/mm
SKU 72479SCS
Solid Length 45.97 mm
Suggested Max Deflection 22.35 mm
Suggested Max Load 395.87 N
Total Coils 12.3
Wire Diameter 3.76 mm
The 72479SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter 302/304 stainless steel, the 72479S spring design exhibits reliable strength across its 12.3 active coils, withstanding repeated compression cycles with a maximum load of 89 lbf without succumbing to fatigue.

We manufacture the 72479S design to provide a compression spring that is 3" long at rest and provides a consistent rate of 102 lbs/in along its recommended maximum of 0.88" deflection. For best results, your application should fully accommodate the inner (0.679") and outer (0.975") diameters of this spring and be designed for its closed & ground end configuration.
