3796CS - 1" Hard Drawn Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

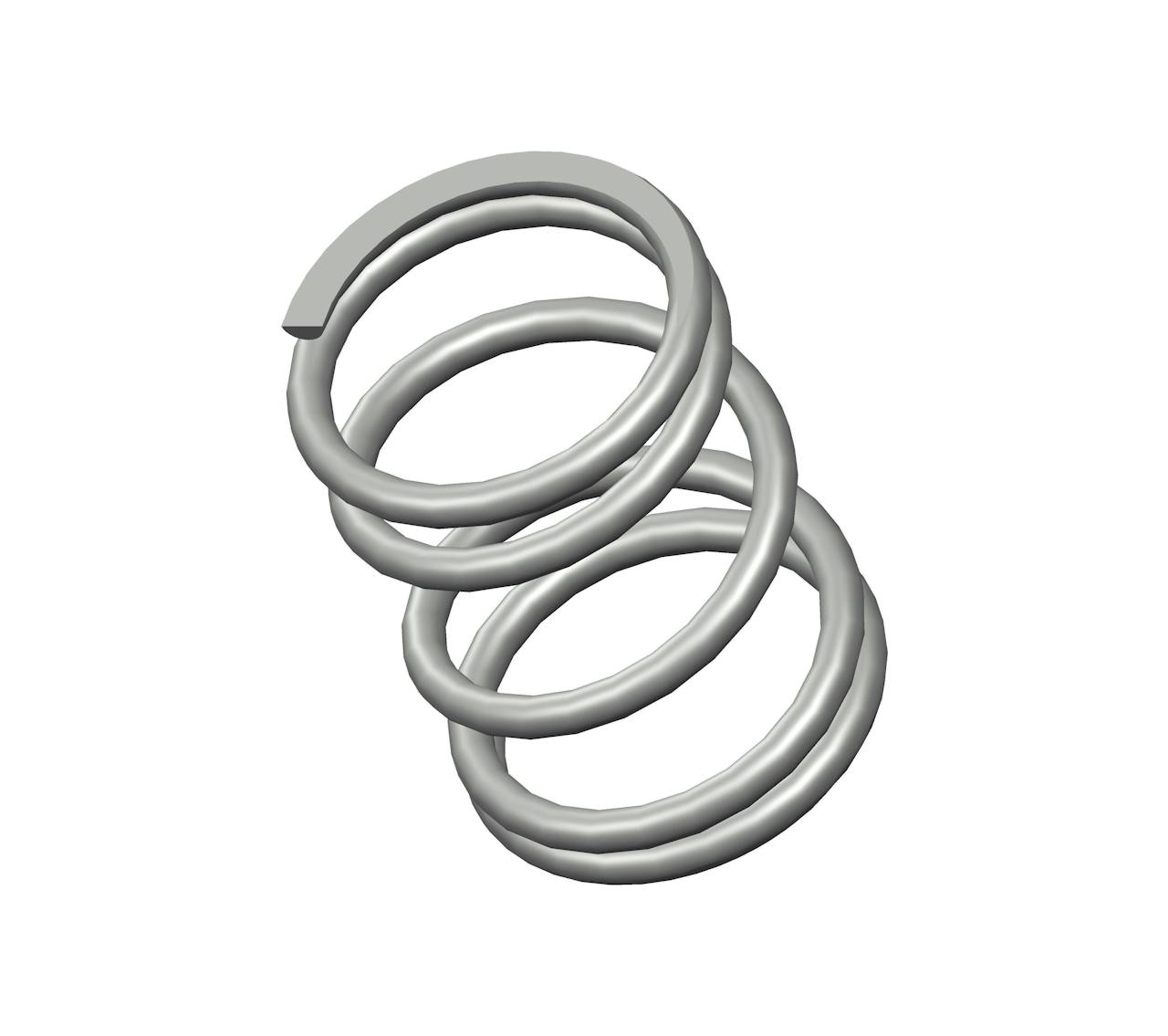

Compression spring manufactured from hard drawn with 5 coils and closed & ground ends. This spring features an O.D. of 0.734", and an I.D. of 0.59".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3796 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 1 in |
| Inside Diameter | 0.59 in |
| Material | Spring Steel |
| Outside Diameter | 0.734 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | 3796CS |
| Solid Length | 0.36 in |
| Suggested Max Deflection | 0.39 in |
| Suggested Max Load | 17 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3796 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 25.4 mm |
| Inside Diameter | 14.99 mm |
| Material | Spring Steel |
| Outside Diameter | 18.64 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | 3796CS |
| Solid Length | 9.14 mm |
| Suggested Max Deflection | 9.91 mm |
| Suggested Max Load | 75.62 N |
| Total Coils | 5 |
| Wire Diameter | 1.83 mm |
The 3796 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality hard drawn and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 3796CS compression spring is designed with a free length of 0.44" total of 9 coils, and a rate of 2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3796 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 3796CS compression spring is designed with a free length of 0.44" total of 9 coils, and a rate of 2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3796 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
