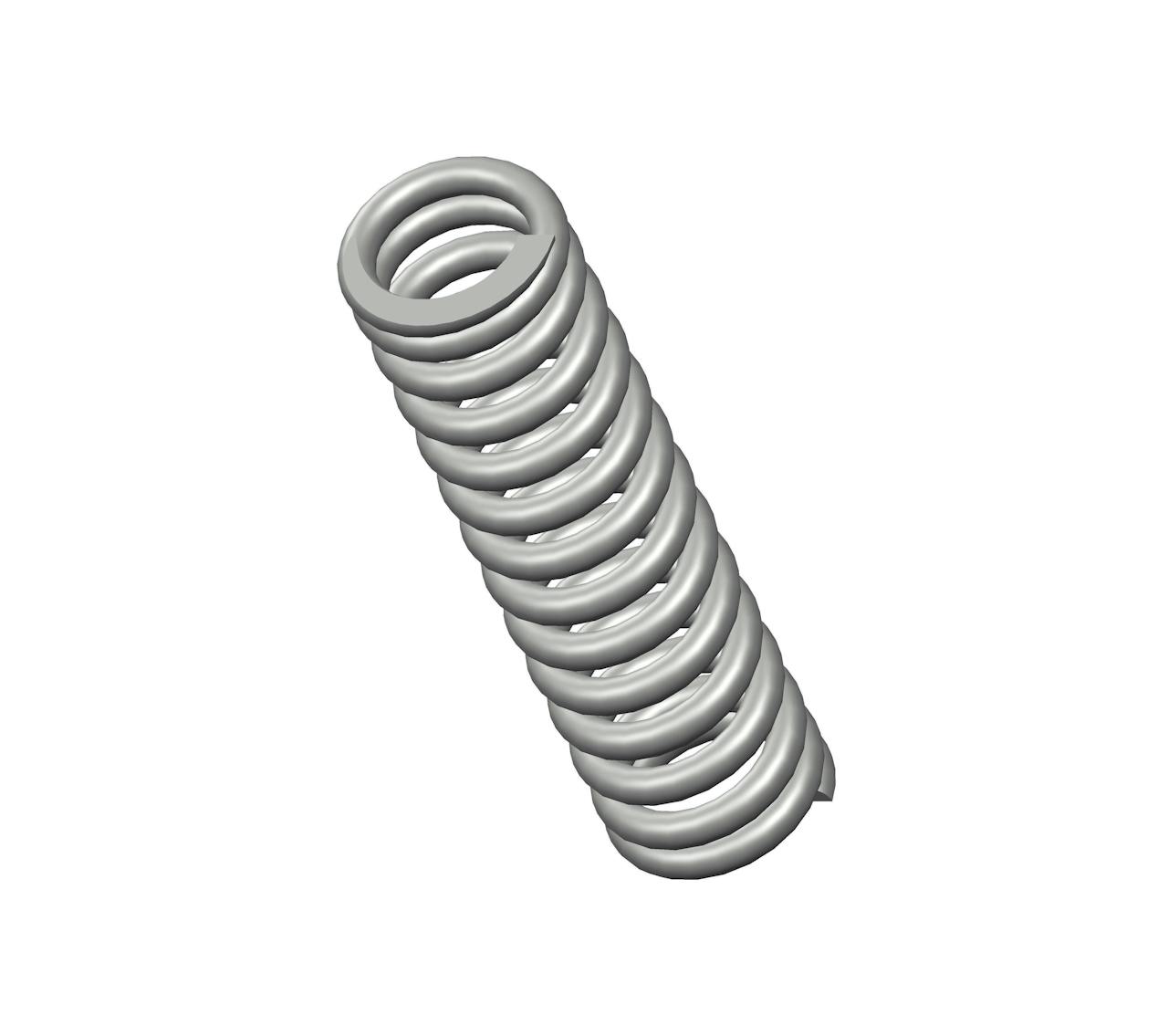

B14-45CS - 2.34" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 14 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.409".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B14-45
Ends Closed & Ground
Finish Zinc
Free Length 2.34 in
Inside Diameter 0.409 in
Material Spring Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 91 lbs/in
SKU B14-45CS
Solid Length 1.4 in
Suggested Max Deflection 0.57 in
Suggested Max Load 52 lbf
Total Coils 14
Wire Diameter 0.1 in
The compression spring B14-45CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B14-45 compression spring design exhibits exceptional tensile strength and resilience.

The B14-45 design is manufactured with a free length of 2.34", with an outer diameter of 0.609", an inner diameter of 0.409", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 91 lbs/in.

The B14-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B14-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
