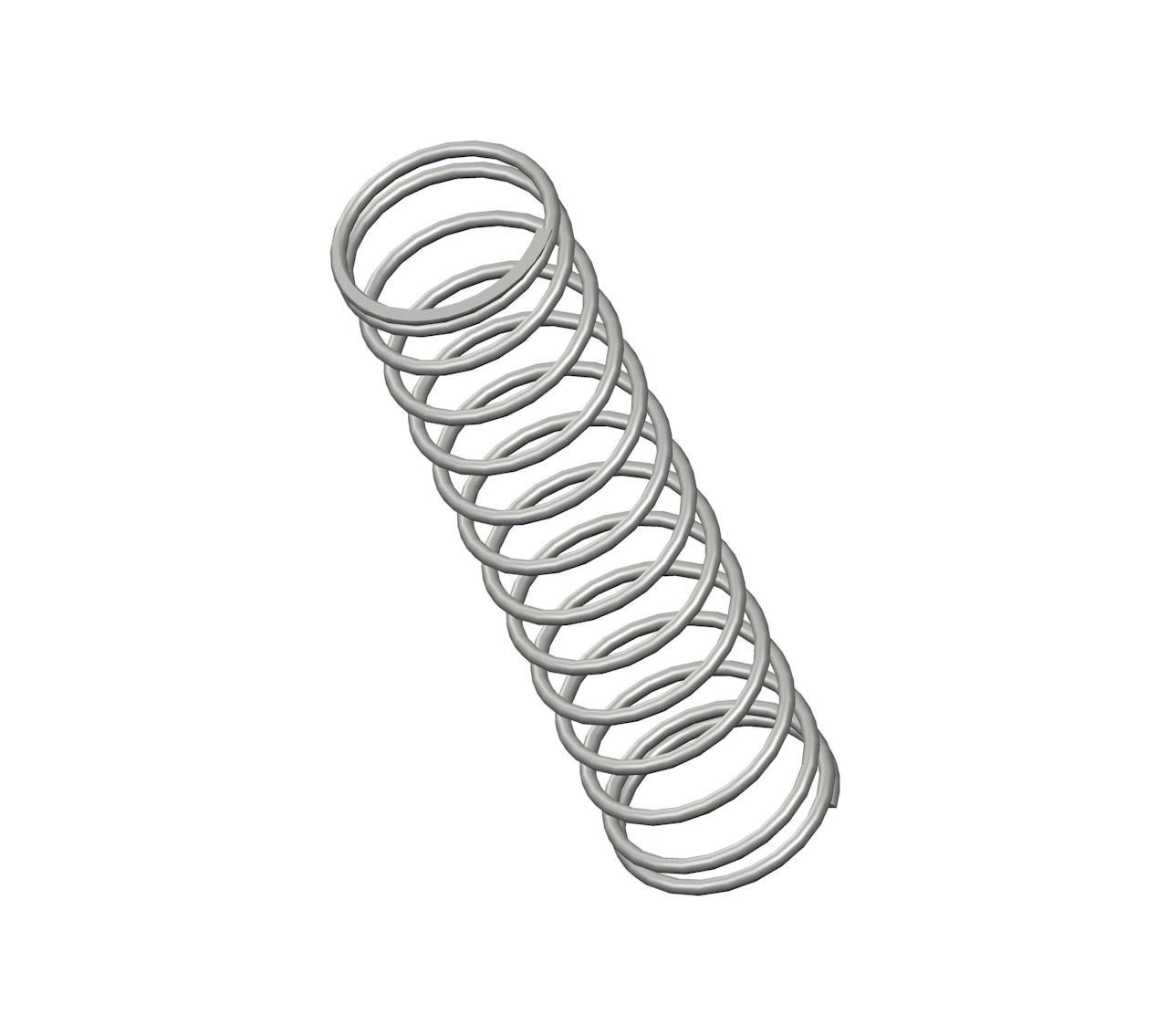

3673CS - 4.63" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 14 coils and closed & ground ends. This spring features an O.D. of 1.188", and an I.D. of 1.026".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3673
Ends Closed & Ground
Finish Zinc
Free Length 4.63 in
Inside Diameter 1.026 in
Material Spring Steel
Outside Diameter 1.188 in
Part Type Standard
Rate 3.8 lbs/in
SKU 3673CS
Solid Length 1.13 in
Suggested Max Deflection 3.5 in
Suggested Max Load 13 lbf
Total Coils 14
Wire Diameter 0.081 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3673
Ends Closed & Ground
Finish Zinc
Free Length 117.6 mm
Inside Diameter 26.06 mm
Material Spring Steel
Outside Diameter 30.18 mm
Part Type Standard
Rate 0.67 N/mm
SKU 3673CS
Solid Length 28.7 mm
Suggested Max Deflection 88.9 mm
Suggested Max Load 57.82 N
Total Coils 14
Wire Diameter 2.06 mm
The 3673CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.081" diameter spring steel, the 3673 spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 13 lbf without succumbing to fatigue.

We manufacture the 3673 design to provide a compression spring that is 4.63" long at rest and provides a consistent rate of 3.8 lbs/in along its recommended maximum of 3.5" deflection. For best results, your application should fully accommodate the inner (1.026") and outer (1.188") diameters of this spring and be designed for its closed & ground end configuration.
