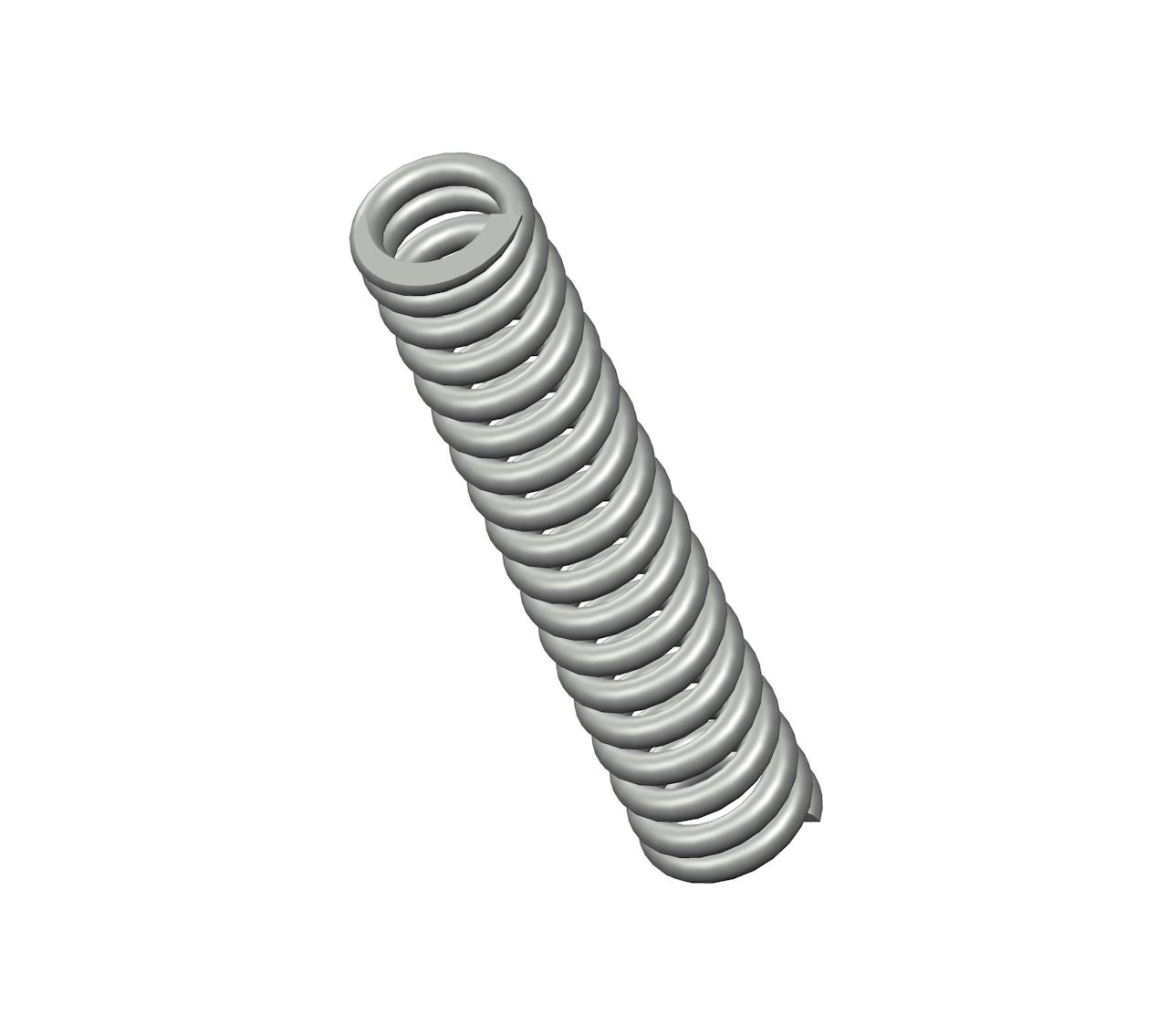

10313CS - 0.81" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 18 coils and closed & ground ends. This spring features an O.D. of 0.156", and an I.D. of 0.1".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10313
Ends Closed & Ground
Finish Gold Iridite
Free Length 0.81 in
Inside Diameter 0.1 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 26 lbs/in
SKU 10313CS
Solid Length 0.5 in
Suggested Max Deflection 0.28 in
Suggested Max Load 7.5 lbf
Total Coils 18
Wire Diameter 0.028 in
The 10313 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10313CS compression spring is designed with a free length of 1" total of 8 coils, and a rate of 132 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10313 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
