3622CS - 1.84" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

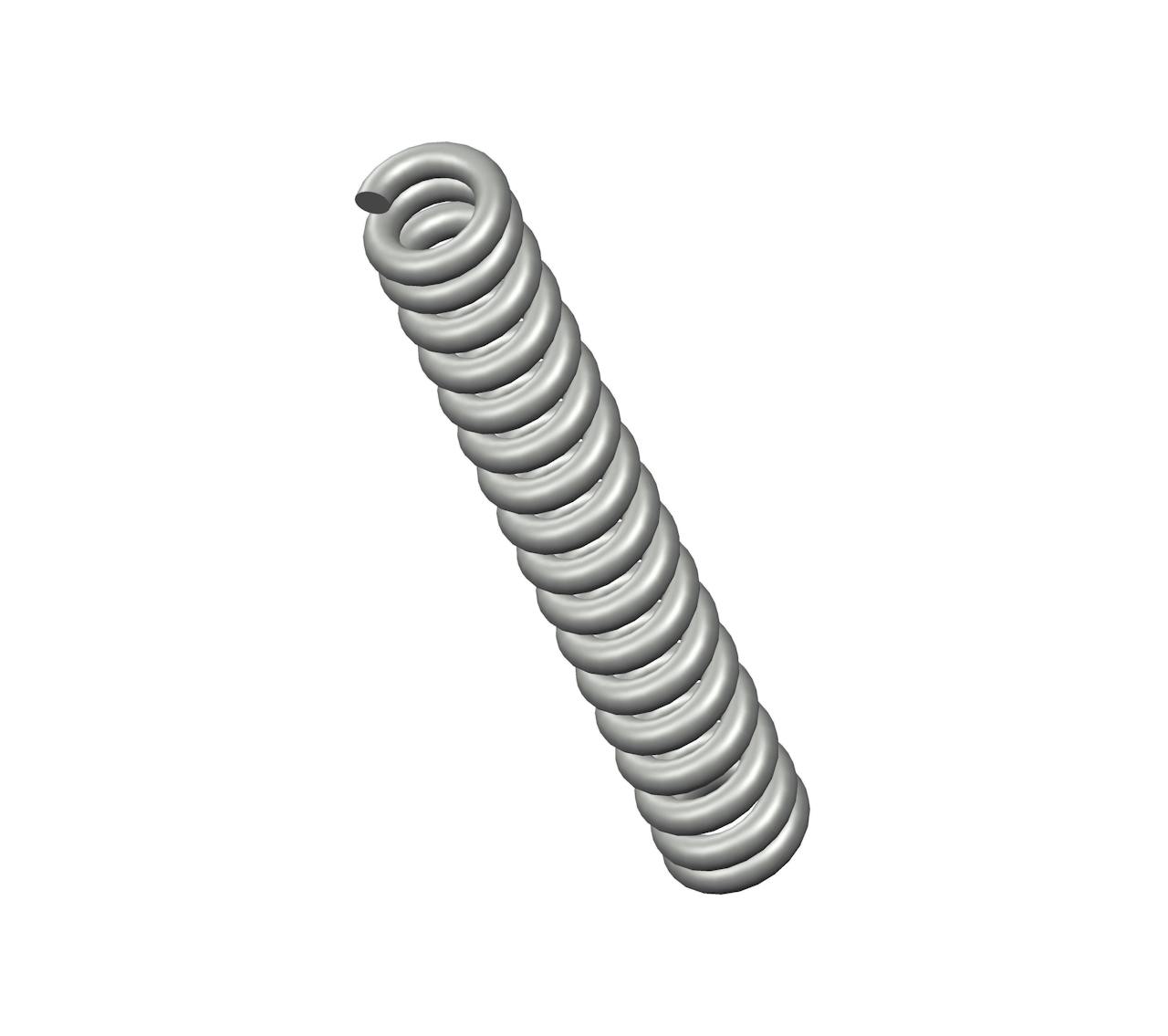

Compression spring manufactured from music wire with 17 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.153".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3622 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.84 in |
| Inside Diameter | 0.153 in |
| Material | Music Wire |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 157 lbs/in |
| SKU | 3622CS |
| Solid Length | 1.15 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 42 lbf |
| Total Coils | 17 |
| Wire Diameter | 0.064 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3622 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 46.74 mm |
| Inside Diameter | 3.89 mm |
| Material | Music Wire |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 27.49 N/mm |
| SKU | 3622CS |
| Solid Length | 29.21 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 186.82 N |
| Total Coils | 17 |
| Wire Diameter | 1.63 mm |
The compression spring 3622CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 3622 compression spring design exhibits exceptional tensile strength and resilience.
The 3622 design is manufactured with a free length of 1.84", with an outer diameter of 0.281", an inner diameter of 0.153", and a total of 17 coils, expertly designed to deliver consistent compression characteristics including a rate of 157 lbs/in.
The 3622CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 3622 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
