Century Spring

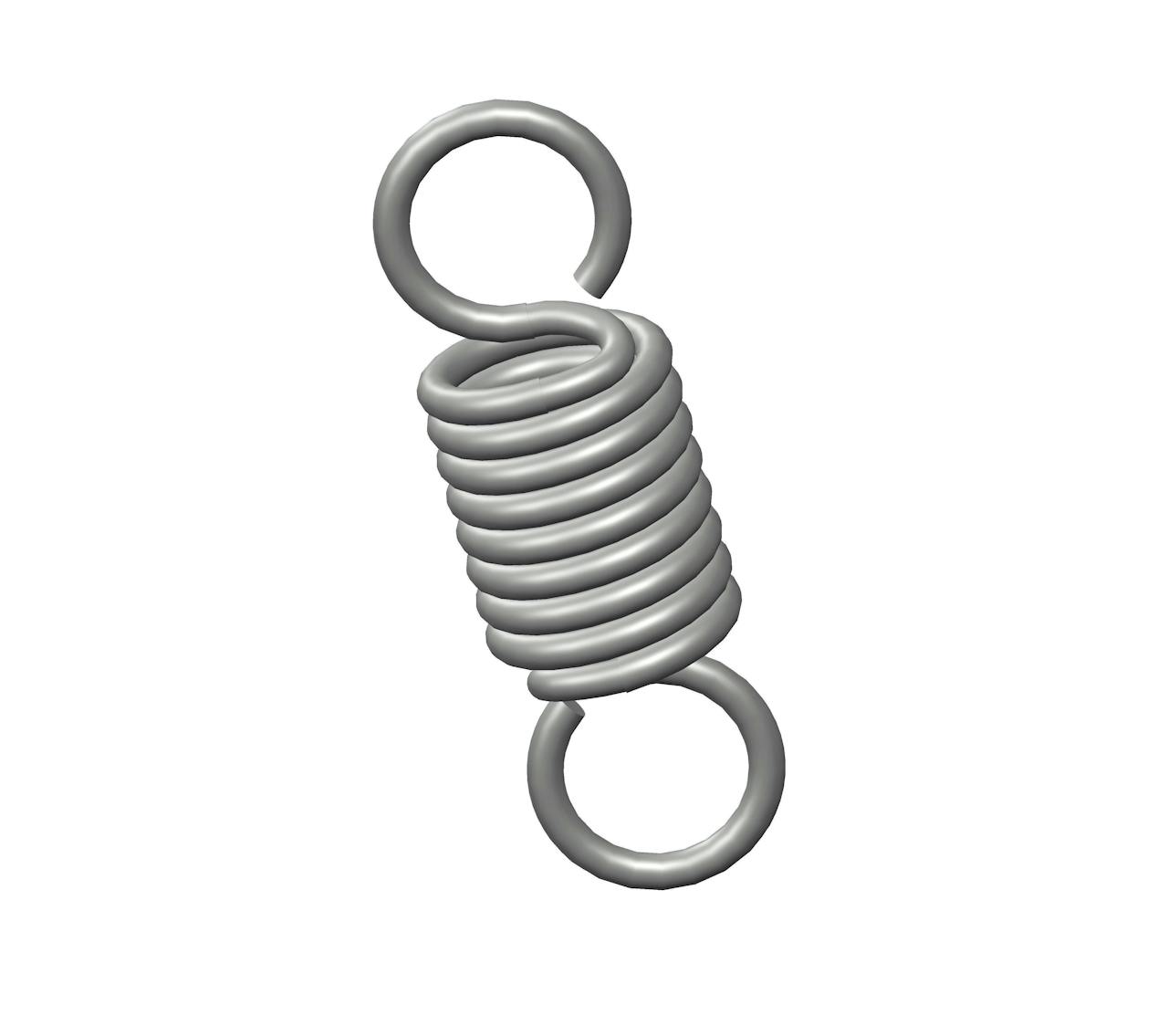

316CS - 2.25 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.734 Inch and an initial tension of 12 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 316
End Use Chaise Lounge
Ends Machine Hook
Finish Zinc
Initial Tension 12 lb
Length 2.25 in
Material High Carbon Steel
Outside Diameter 0.734 in
Part Type Standard
Rate 59 lbs/in
SKU 316CS
Sugg Max Deflection 0.65 in
Sugg Max Load 50 lbf
Wind Direction Left
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 316
End Use Chaise Lounge
Ends Machine Hook
Finish Zinc
Initial Tension 5.44 kg
Length 57.15 mm
Material High Carbon Steel
Outside Diameter 18.64 mm
Part Type Standard
Rate 10.33 N/mm
SKU 316CS
Sugg Max Deflection 16.51 mm
Sugg Max Load 222.4 N
Wind Direction Left
Wire Diameter 2.67 mm
