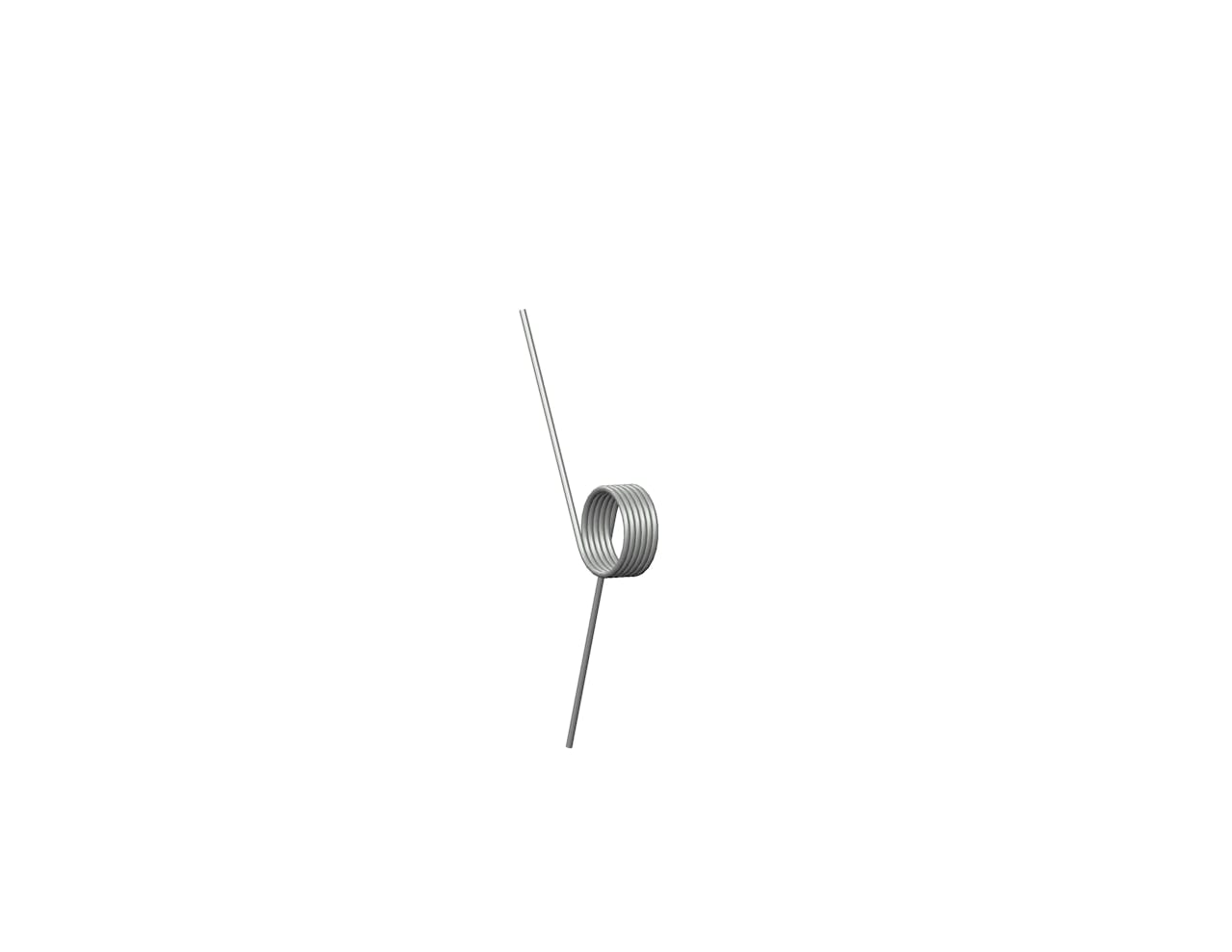

TO-5086LCS - 225 Degree, 0.0018 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory:
Estimated Lead Time

Torsion spring in Music Wire with 5.875 total coils and 1 Inch legs. This spring features an O.D. of 0.364 Inch, an I.D. of 0.312 Inch, and a spring rate of 0.0018 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 0.2 in
Brand Century Spring
Display Name TO-5086L
Finish None
Inside Diameter 0.312 in
Leg Length 1 in
Mandrel Diameter 0.24 in
Material Music Wire
Max Deflection (deg) (suggested) 225
Max Torque (suggested) 0.41 lbs-in
Measurement Units Standard
Outside Diameter 0.364 in
Rate 0.0018 lbf-in/deg
SKU TO-5086LCS
Total Coils 5.875
Wind Direction Left
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 5.08 mm
Brand Century Spring
Display Name TO-5086L
Finish None
Inside Diameter 7.92 mm
Leg Length 25.4 mm
Mandrel Diameter 6.1 mm
Material Music Wire
Max Deflection (deg) (suggested) 225
Max Torque (suggested) 0.07 N-mm
Measurement Units Standard
Outside Diameter 9.25 mm
Rate 0.2 N-mm/deg
SKU TO-5086LCS
Total Coils 5.88
Wind Direction Left
Wire Diameter 0.66 mm
