Century Spring

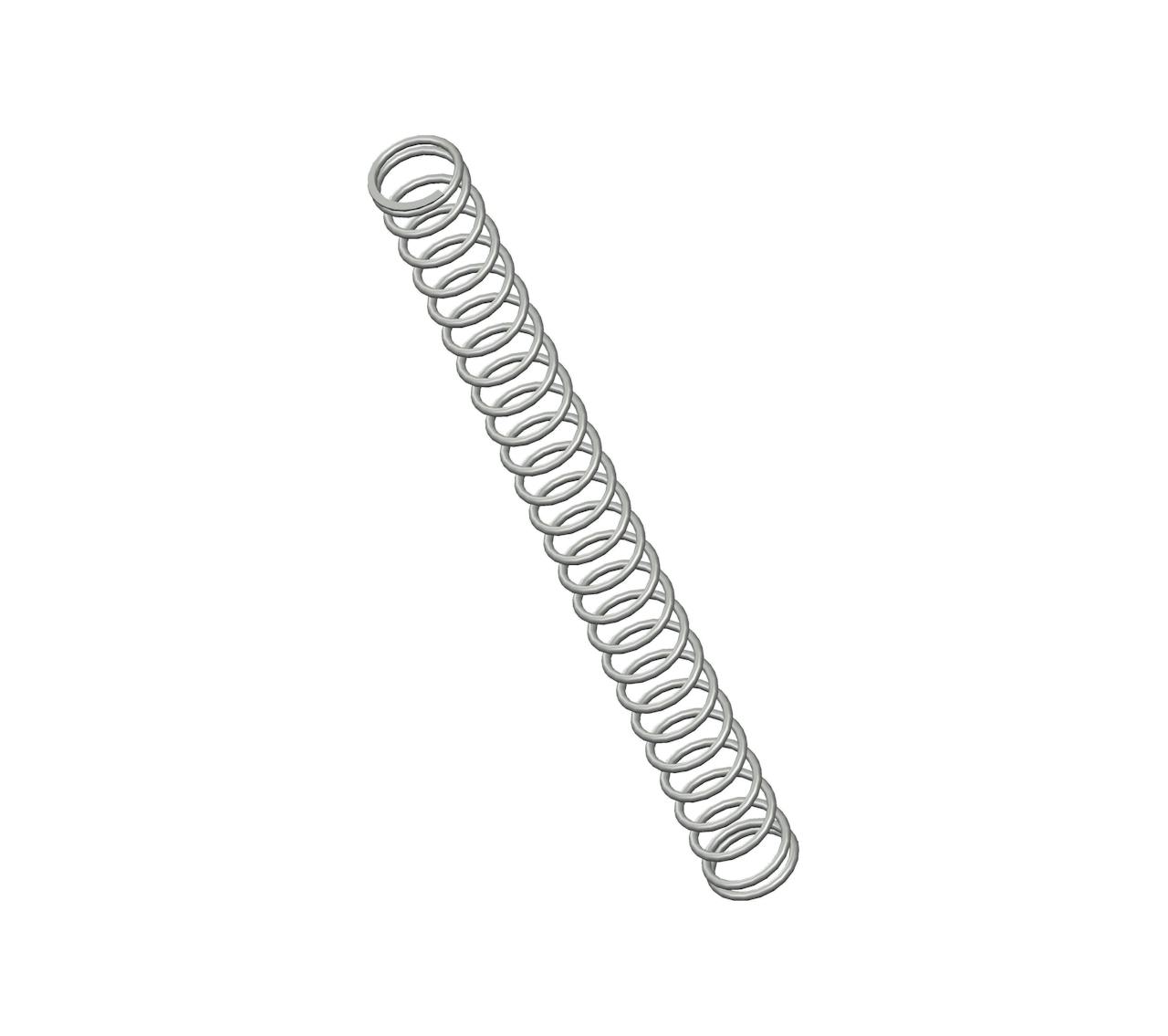

3076CS - 10.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 25.8 coils and closed & ground ends. This spring features an O.D. of 0.938", and an I.D. of 0.756".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3076
Ends Closed & Ground
Finish Zinc
Free Length 10.5 in
Inside Diameter 0.756 in
Material Spring Steel
Outside Diameter 0.938 in
Part Type Standard
Rate 6.8 lbs/in
SKU 3076CS
Solid Length 2.34 in
Suggested Max Deflection 3.9 in
Suggested Max Load 26 lbf
Total Coils 25.8
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3076
Ends Closed & Ground
Finish Zinc
Free Length 266.7 mm
Inside Diameter 19.2 mm
Material Spring Steel
Outside Diameter 23.83 mm
Part Type Standard
Rate 1.19 N/mm
SKU 3076CS
Solid Length 59.44 mm
Suggested Max Deflection 99.06 mm
Suggested Max Load 115.65 N
Total Coils 25.8
Wire Diameter 2.31 mm
The 3076CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the 3076 spring design exhibits reliable strength across its 25.8 active coils, withstanding repeated compression cycles with a maximum load of 26 lbf without succumbing to fatigue.

We manufacture the 3076 design to provide a compression spring that is 10.5" long at rest and provides a consistent rate of 6.8 lbs/in along its recommended maximum of 3.9" deflection. For best results, your application should fully accommodate the inner (0.756") and outer (0.938") diameters of this spring and be designed for its closed & ground end configuration.
