Century Spring

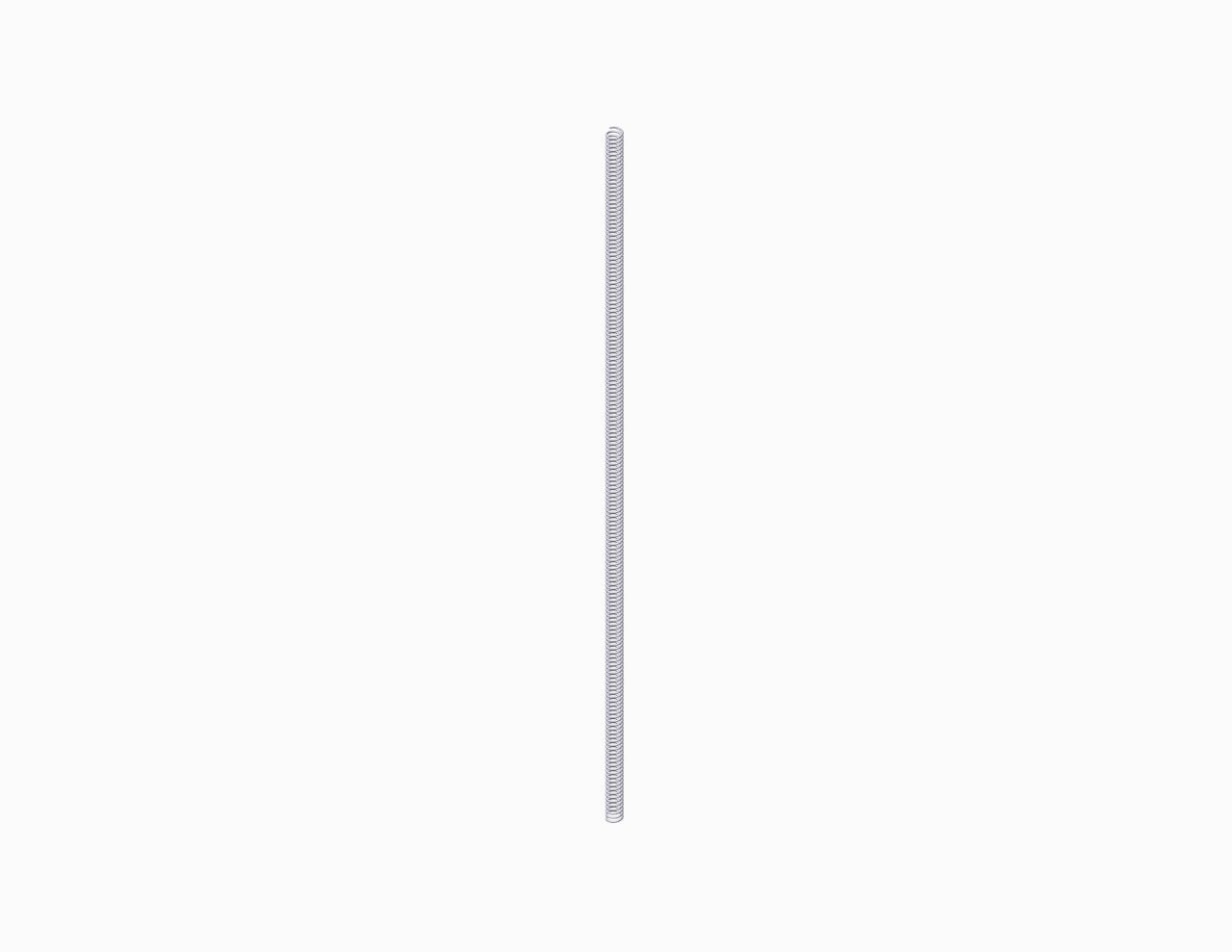

ST7-54CS - 0.438 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.438 Inch, and an I.D. of 0.33 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST7-54
Finish None
Inside Diameter 0.33 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.438 in
Pitch 0.117 in
Product Image ST7_54CS
Rate 23.0004 lbs/in
Rate Constant 1.9167 lbf
SKU ST7-54CS
Solid Length Constant 0.49 in
Solid Length Per 0.49 lb
Suggested Max Load 14 lbf
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST7-54
Finish None
Inside Diameter 8.38 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 11.13 mm
Pitch 2.97 mm
Product Image ST7_54CS
Rate 4.03 N-mm
Rate Constant 335.67 N
SKU ST7-54CS
Solid Length Constant 12.45 mm
Solid Length Per 0.22 kg
Suggested Max Load 62.27 N
Wire Diameter 1.37 mm
