2766CS - 0.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

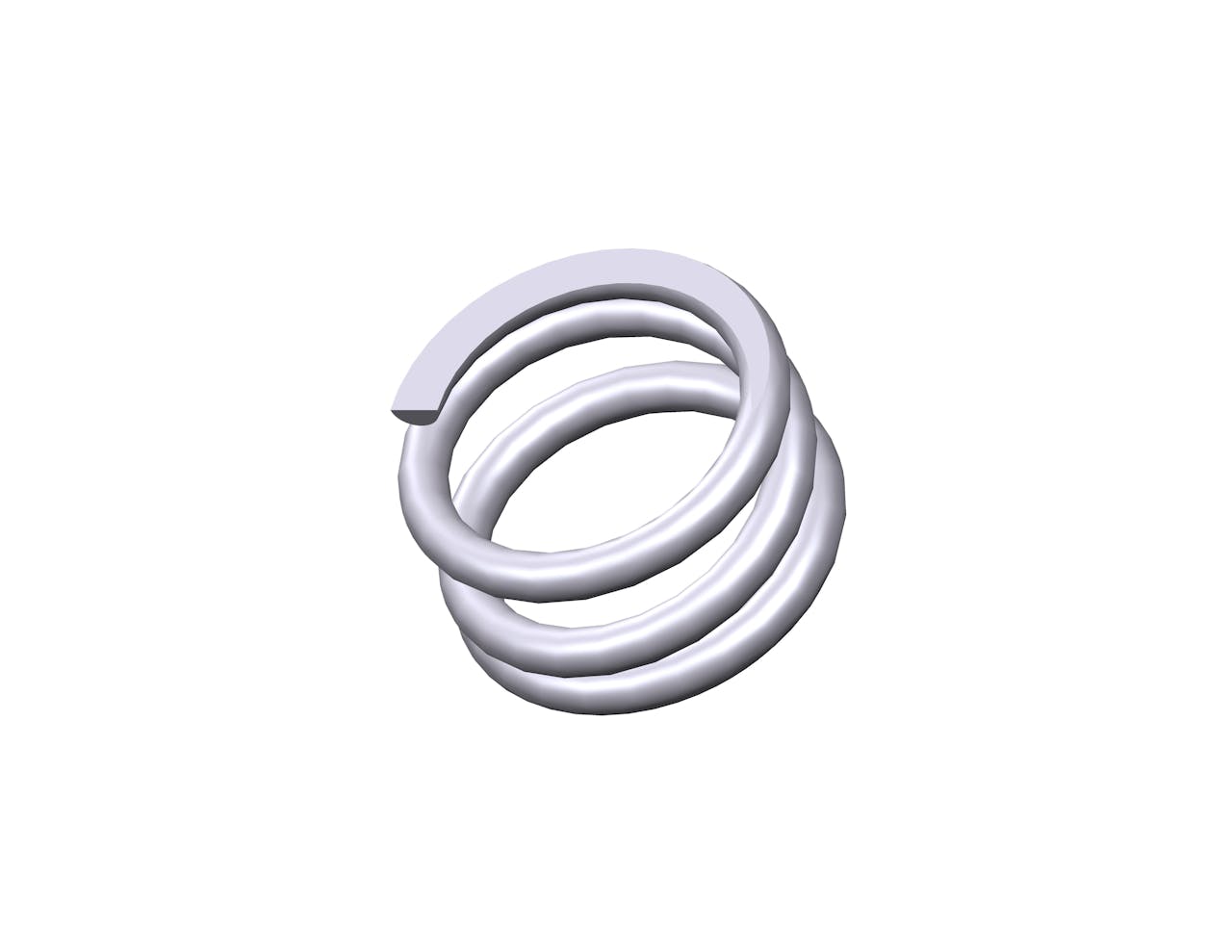

Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 0.906", and an I.D. of 0.686".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2766
Ends Closed & Ground
Finish Zinc
Free Length 0.5 in
Inside Diameter 0.686 in
Material Spring Steel
Outside Diameter 0.906 in
Part Type Standard
Rate 417 lbs/in
SKU 2766CS
Solid Length 0.33 in
Suggested Max Deflection 0.11 in
Suggested Max Load 46 lbf
Total Coils 3
Wire Diameter 0.11 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 2766
Ends Closed & Ground
Finish Zinc
Free Length 12.7 mm
Inside Diameter 17.42 mm
Material Spring Steel
Outside Diameter 23.01 mm
Part Type Standard
Rate 73.02 N/mm
SKU 2766CS
Solid Length 8.38 mm
Suggested Max Deflection 2.79 mm
Suggested Max Load 204.61 N
Total Coils 3
Wire Diameter 2.79 mm
The 2766CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.11" diameter spring steel, the 2766 spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 46 lbf without succumbing to fatigue.

We manufacture the 2766 design to provide a compression spring that is 0.5" long at rest and provides a consistent rate of 417 lbs/in along its recommended maximum of 0.11" deflection. For best results, your application should fully accommodate the inner (0.686") and outer (0.906") diameters of this spring and be designed for its closed & ground end configuration.
