2754CS - 1.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

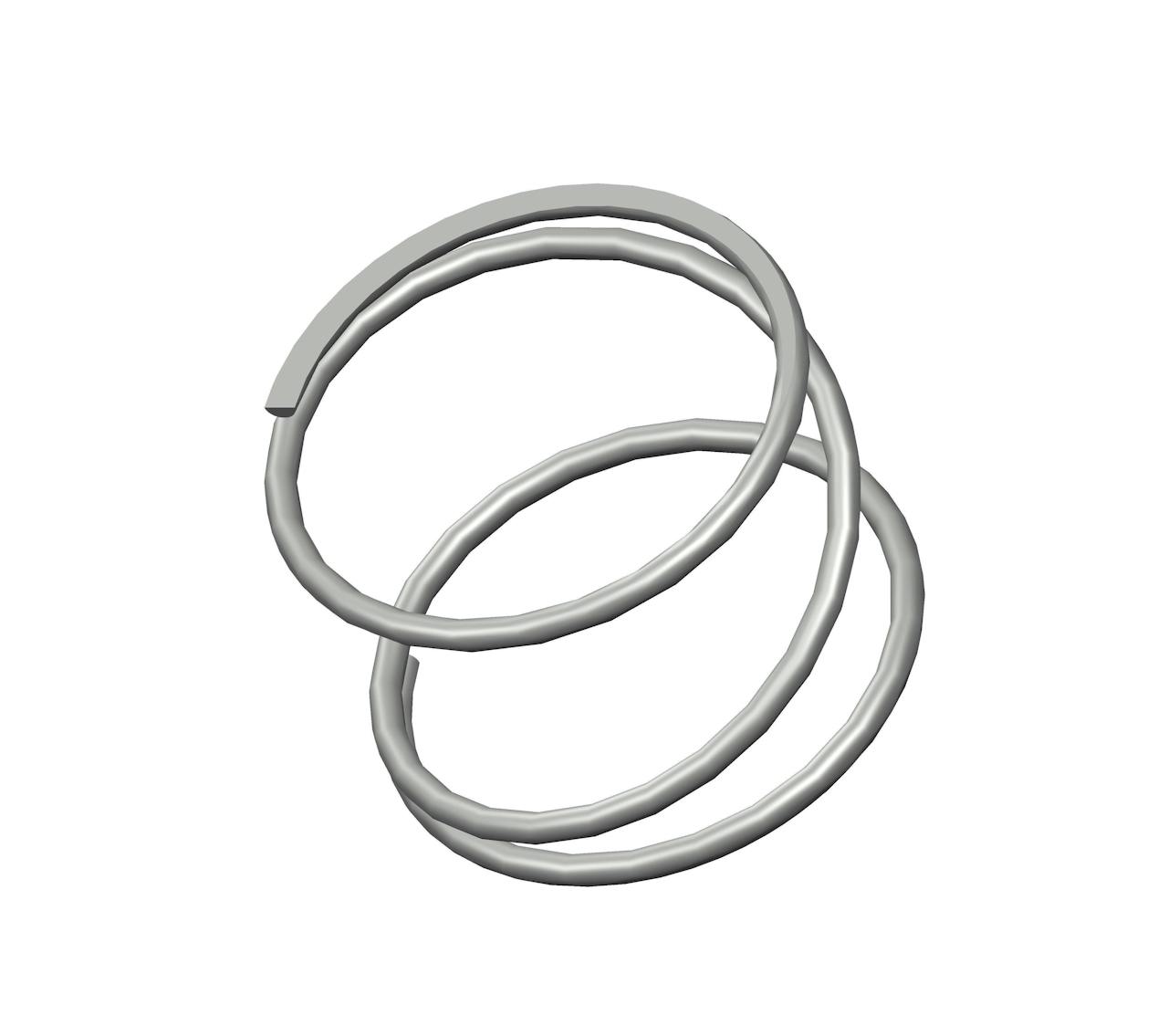

Compression spring manufactured from music wire with 3 coils and closed & ground ends. This spring features an O.D. of 2.109", and an I.D. of 1.869".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 2754 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.5 in |
| Inside Diameter | 1.869 in |
| Material | Music Wire |
| Outside Diameter | 2.109 in |
| Part Type | Standard |
| Rate | 38 lbs/in |
| SKU | 2754CS |
| Solid Length | 0.36 in |
| Suggested Max Deflection | 0.98 in |
| Suggested Max Load | 37 lbf |
| Total Coils | 3 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 2754 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 38.1 mm |
| Inside Diameter | 47.47 mm |
| Material | Music Wire |
| Outside Diameter | 53.57 mm |
| Part Type | Standard |
| Rate | 6.65 N/mm |
| SKU | 2754CS |
| Solid Length | 9.14 mm |
| Suggested Max Deflection | 24.89 mm |
| Suggested Max Load | 164.58 N |
| Total Coils | 3 |
| Wire Diameter | 3.05 mm |
The 2754CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter music wire, the 2754 spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 37 lbf without succumbing to fatigue.
We manufacture the 2754 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 38 lbs/in along its recommended maximum of 0.98" deflection. For best results, your application should fully accommodate the inner (1.869") and outer (2.109") diameters of this spring and be designed for its closed & ground end configuration.
