Century Spring

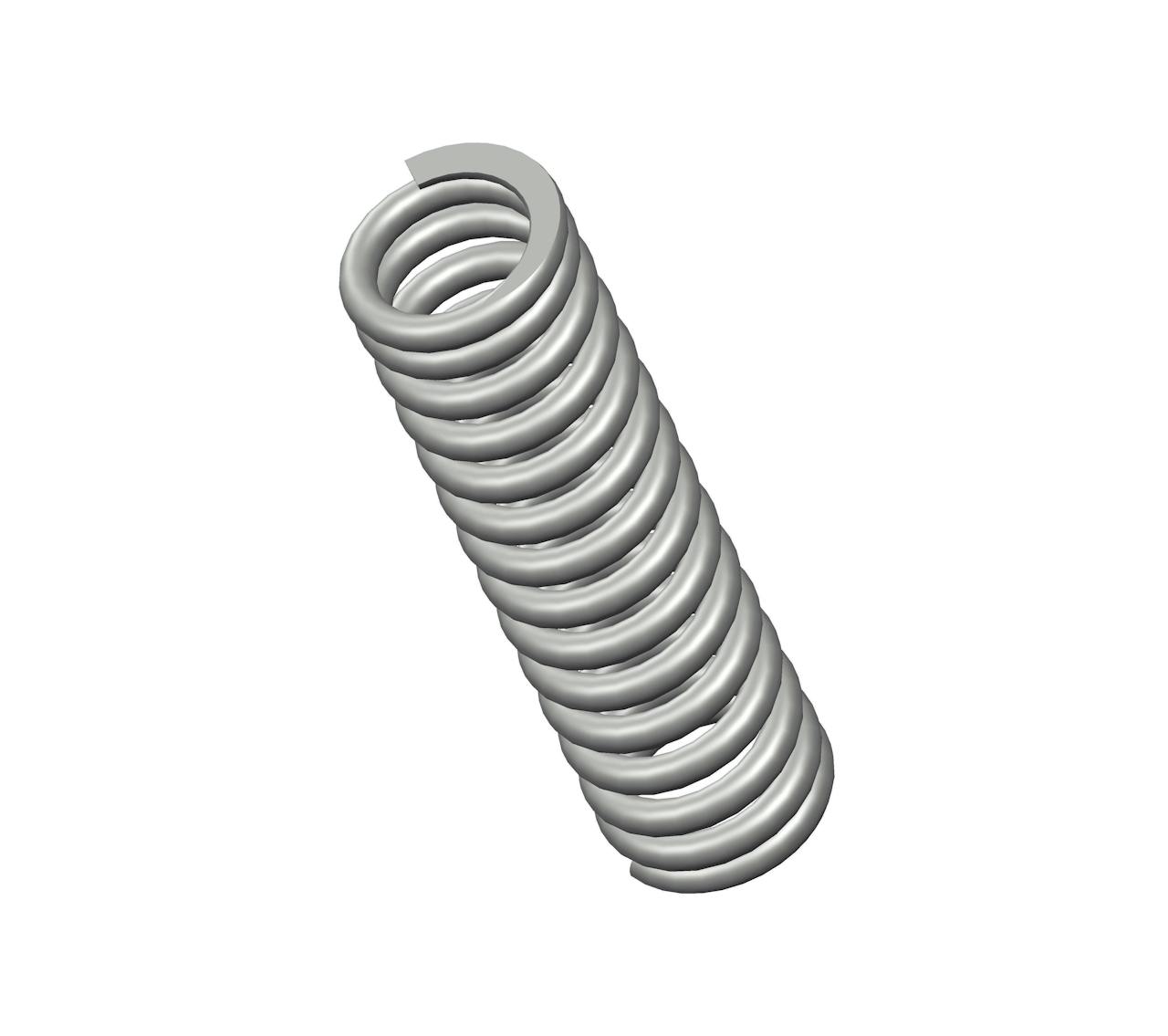

73056CS - 8" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 14.7 coils and closed & ground ends. This spring features an O.D. of 2.187", and an I.D. of 1.501".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73056
Ends Closed & Ground
Finish None
Free Length 8 in
Inside Diameter 1.501 in
Material Oil Tempered
Outside Diameter 2.187 in
Part Type Standard
Rate 249 lbs/in
SKU 73056CS
Solid Length 5.06 in
Suggested Max Deflection 2 in
Suggested Max Load 508 lbf
Total Coils 14.7
Wire Diameter 0.343 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73056
Ends Closed & Ground
Finish None
Free Length 203.2 mm
Inside Diameter 38.13 mm
Material Oil Tempered
Outside Diameter 55.55 mm
Part Type Standard
Rate 43.6 N/mm
SKU 73056CS
Solid Length 128.52 mm
Suggested Max Deflection 50.8 mm
Suggested Max Load 2259.58 N
Total Coils 14.7
Wire Diameter 8.71 mm
The compression spring 73056CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality oil tempered, the 73056 compression spring design exhibits exceptional tensile strength and resilience.

The 73056 design is manufactured with a free length of 8", with an outer diameter of 2.187", an inner diameter of 1.501", and a total of 14.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 249 lbs/in.

The 73056CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 73056 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
